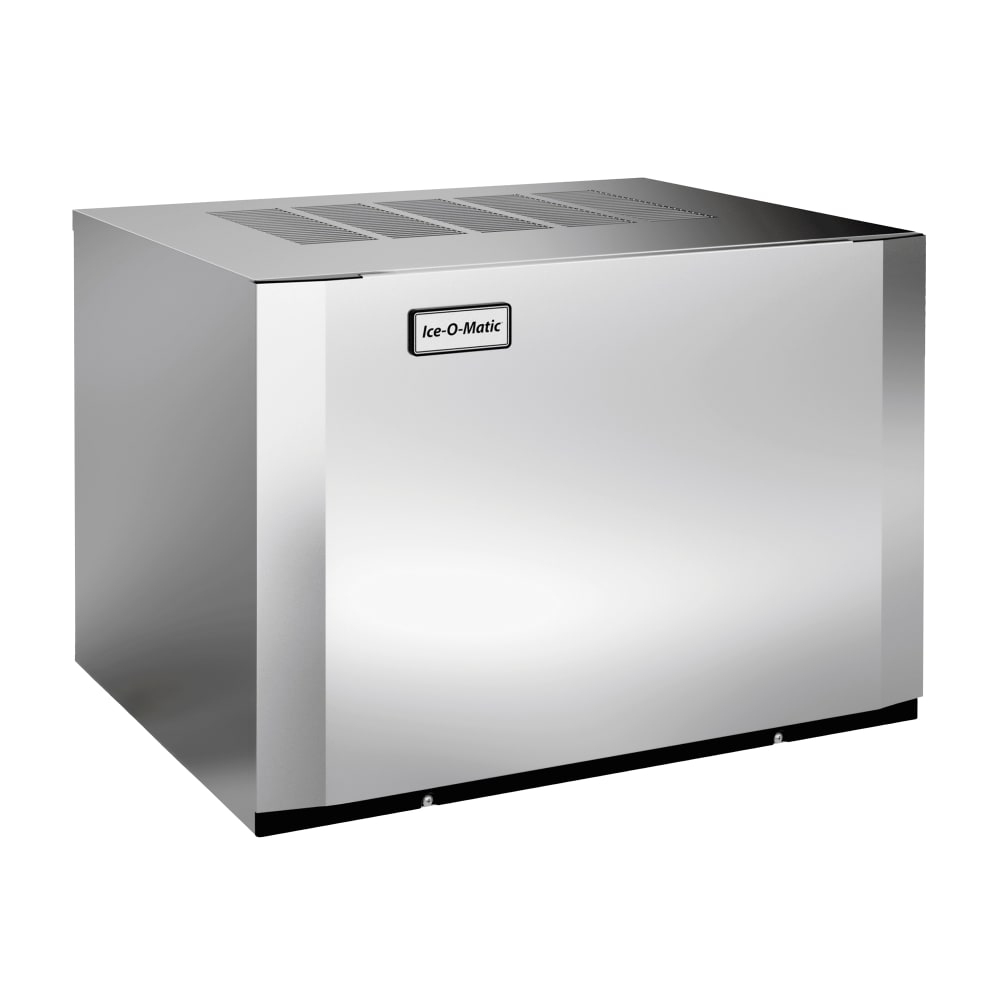

Ice-O-Matic CIM0430HA90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,891.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Ice-O-Matic CIM0430HA90 Description
The Ice-O-Matic CIM0430HA90 Elevation™ modular cube ice maker produces up to 435 pounds of half-cube ice in a 24-hour period when the ambient air temperature is at 70 degrees Fahrenheit. Since the unit is designed with dual exhaust technology, it can discharge hot air from the top or side, which increases your installation options. The Universal Smart Harness™ control board simplifies installation and servicing with digital diagnostics, better access, and universal components.
The plastic food zone has Agion® antimicrobial protection built in to slow the growth of bacteria. This area has no crevices, so it can be easily wiped down, and has components that snap in and out of place so they can be cleaned and sanitized in commercial dishmachines. An LED status display indicates when the Ice-O-Matic CIM0430HA90 Elevation modular cube ice maker requires cleaning. To help employees clean the ice maker more efficiently, it includes one-touch controls for the descaling and sanitizing processes.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- Produces up to 435 lbs. of ice in 24 hrs. at 70 degrees F and up to 320 lbs. of ice at 90 degrees F
- Makes half-cube ice measuring 3⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Air-cooled, self-contained condenser uses R290 refrigerant
- Dual exhaust increases installation options by discharging hot air from the side or top
- Digital diagnostics, universal components, and a common configuration provided by the Universal Smart Harness control board simplify installation and servicing
- Plastic parts are recyclable and BPA free
- 115 V/60 Hz/1 ph, 11 A, 5.43 kW, 5100 BTU
- Overall Dimensions: 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Agion antimicrobial protection reduces the risk of bacteria growth
- LED status display indicates when the unit needs to be cleaned
- One-touch controls for descaling and sanitizing simplify the cleaning process
- Plastic food zone is easy to wipe clean since it lacks crevices
- Easily snap the dishwasher-safe components in and out
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430HA90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30" W, approximately 435 lb production/24 hours at 70°/50° (320 lb at 90°/70°), half-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, ENERGY STAR®, BPA Free, ENERGY STAR®
Watch a video about this product
Ice-O-Matic CIM0430HA90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 435 |
| Also Known As | CIM0430HA |
| Compressor Type | Air Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
- Ice-O-Matic ICE0400HA
- Ice-O-Matic ICE0400HT
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0430HA90 Ice-O-Matic CIM0430HA90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 435 lb/24 hr, Air Cooled, 115v/1ph Current Item |
True Refrigeration TCIM-430-HA1-A True TCIM-430-HA1-A 30" Half Cube Ice Machine Head - 447 lb/24 hr, Air Cooled, 115v/1ph |
||
|---|---|---|---|---|
| Customer Rating |
|
|
|
|
| Price | $3,891.00 / Each | $3,945.00 / Each | $3,869.00 / Each | $3,948.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Ships in 1 Business Day | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 435 | 478 | 476 | 447 |
| Ice Type | Half Cube | Half Cube | Full Cube | Half Cube |
| Compressor Type | Air Cooled | Air Cooled | Air Cooled | Air Cooled |
| Width (in) | 30.25 | 30 | 30 | 30 |
| Rating | Better | Best | Best | Better |
| Voltage | 115 | 115 | 115 | 115 |
| Series | Elevation Series™ | Indigo NXT™ | Prodigy ELITE® | |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor Parts & Labor |
