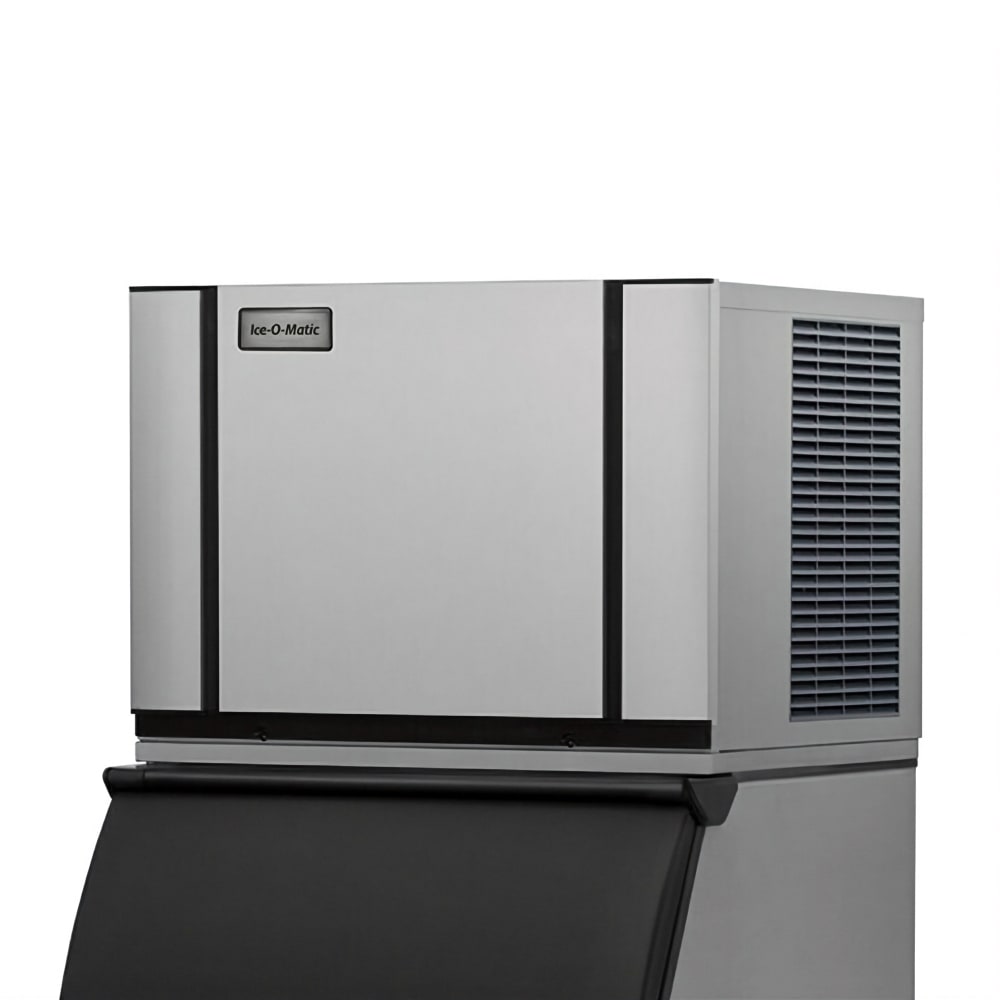

Ice-O-Matic CIM0430FW90 30 1/4" Elevation Series™ Full Cube Ice Machine Head - 460 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$4,215.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0430FW90 Description
The Ice-O-Matic CIM0430FW90 full-cube ice machine head has a water-cooled condenser that is self-contained to streamline cleaning and reduce cross-contamination risks. It makes a maximum of 460 pounds of ice per day, though when conditions are less than ideal, it averages 380 pounds. To slow the growth of germs and bacteria, this unit has PURE ICE® antimicrobial protection, and users can perform sanitizing and descaling with the push of a button.
Enabling employee monitoring, the LED screen on the Ice-O-Matic CIM0430FW90 ice machine head provides status updates. The food zone is made of plastic to facilitate cleaning, and the components are removable for use in the dishwasher. This unit produces full-size ice cubes.
- Part of the Elevation Series™
- 460-lb. daily ice production
- 380-lb. AHRI daily ice production at 70-90 degrees F
- Makes full-size cubes
- Full-size cube size: 7⁄8 in. W x 7⁄8 in. D x 7⁄8 in. H
- Self-contained condenser is water cooled
- PURE ICE antimicrobial inhibits bacterial growth
- Status updates provided by LED display
- R290 refrigerant
- Single-touch sanitizing and descaling
- Dishwasher-safe food zone components
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,100-BTU heat transfer capacity
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10.7 A, 4.75 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0430FW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker w/ SafeIce Upgrade Kit, water-cooled, self-contained condenser, 30 1/4"W, approximately 460 lb production/24 hours at 70°/50° (380 lb at 90°/70°), full-size cubes, PURE ICE® built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE, BPA Free
Ice-O-Matic CIM0430FW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 460 |
| Also Known As | CIM0430FW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 155.00 |
