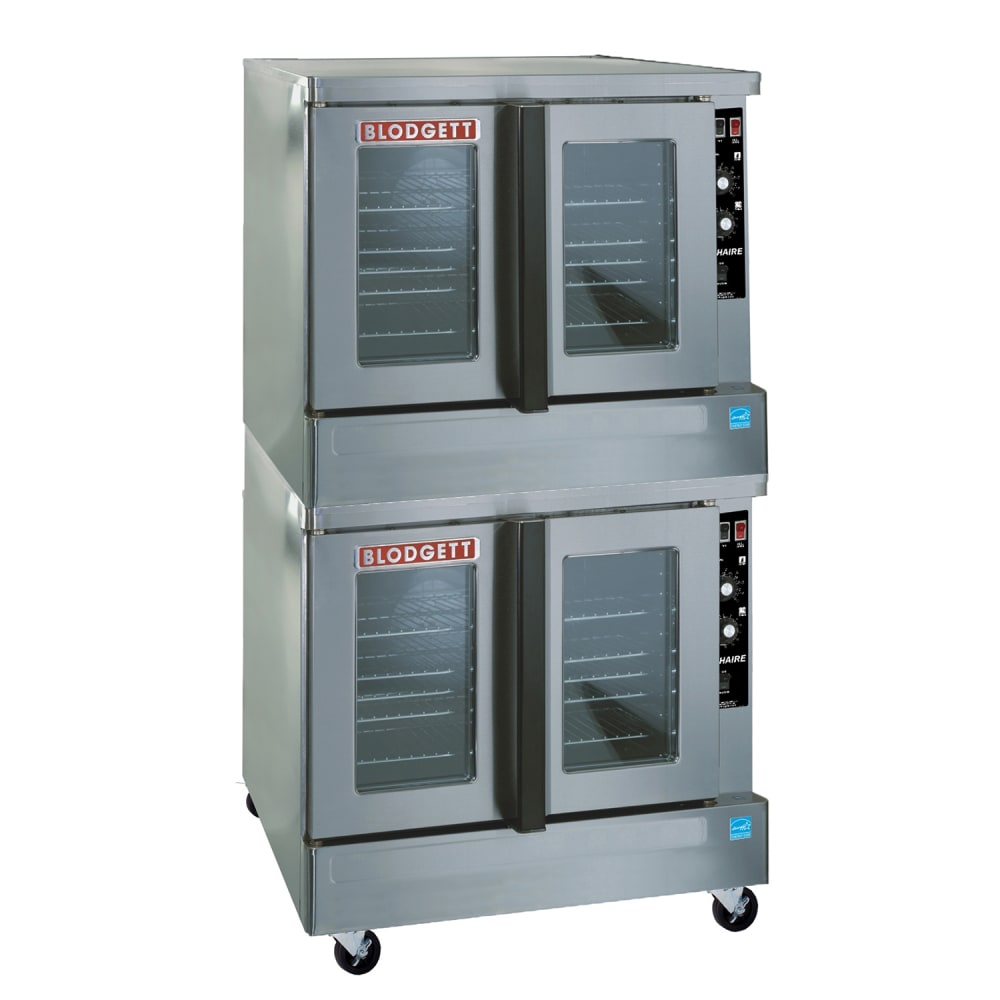

Blodgett ZEPH-200-E DBL Zephaire Bakery Depth Double Full Size Electric Convection Oven - 22kW, 208v/1ph

KaTom #: 015-ZEPH2EDBLM2081 • MPN: ZEPH-200-EDBL (M) 208/1
  • 015-ZEPH2EDBLM2081 Primary Thumbnail Image

Typically ships in 9 - 13 Business Days

Free Shipping Item

$13,598.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 208V, 1 Phase

David Young User Image
Ask a Foodservice Equipment Specialist

Blodgett ZEPH-200-E DBL Description

With two bakery-depth decks, the Blodgett ZEPH-200-E DBL Zephaire convection oven accommodates five 18-inch by 26-inch full-size baking pans in each section in left-to-right or front-to-back positions, offering more versatility than Blodgett's standard-depth ovens. Each cooking compartment measures 29 inches wide by 28 1⁄4 inches deep by 20 inches high and includes five chrome-plated racks that can be adjusted on 11 rack positions, which are spaced 1 5⁄8 inches apart. So operators can open and close each section's double doors with one hand, they feature a dependent design, which can help streamline pan loading and retrieval. Overall, this stainless steel, full-angle-iron-frame unit measures 38 1⁄4 inches wide by 36 7⁄8 inches deep by 70 5⁄8 inches high and is mounted on 6 1⁄2-inch adjustable stainless steel legs for stabilization on uneven flooring.

For quick baking and roasting, the Blodgett ZEPH-200-E DBL electric convection oven's cooking compartment temperatures can be adjusted individually using the solid-state thermostats. Operators can modify the tubular heaters' temperatures from 200 to 500 degrees Fahrenheit and choose the fan motor's speed to disperse heat evenly. To minimize the risk of undercooking or burning, a 60-minute timer tracks cooking time accurately. Solid mineral fiber built into the top, back, sides, and bottom helps retain generated heat, reducing lag time when the unit is reheated for consecutive use.

  • Double-deck, bakery-depth configuration
  • Stainless steel top, sides, and front with full angle-iron frame
  • Top, back, sides, and bottom insulated with solid mineral fiber
  • 5 removable, chrome-plated racks in each section
  • 11 rack positions with 1 5⁄8-in. spacing
  • Capacity per compartment: (5) 18-in. x 26-in. pans
  • 6 tubular heaters (3 per section)
  • 1⁄2-HP motor with automatic thermal overload protection
  • 2-speed fan motor
  • 4 interior oven lamps (2 per compartment)
  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan
  • 4 dependent doors (2 per section)
  • Dual-pane thermal glass windows
  • Powder-coated door handles
  • Triple-mounted, pressure-lock door designs with turnbuckle assemblies
  • Double-sided porcelain baking compartment liners
  • Aluminized blower wheels
  • 6 1⁄2-in. adjustable legs
  • Vent connector included

  • Interiors: (2) 29 in. W x 28 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 70 5⁄8 in. H
  • 51 A, 22 kW, 1⁄2 HP
  • 208 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett ZEPH-200-E DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Zephaire Convection Oven, electric, double-deck, bakery depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, CE, NSF, ENERGY STAR®

Warranty Icon
2-year Parts & Labor; 3-year Door Parts

Watch a video about this product

Blodgett ZEPH-200-E DBL Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
