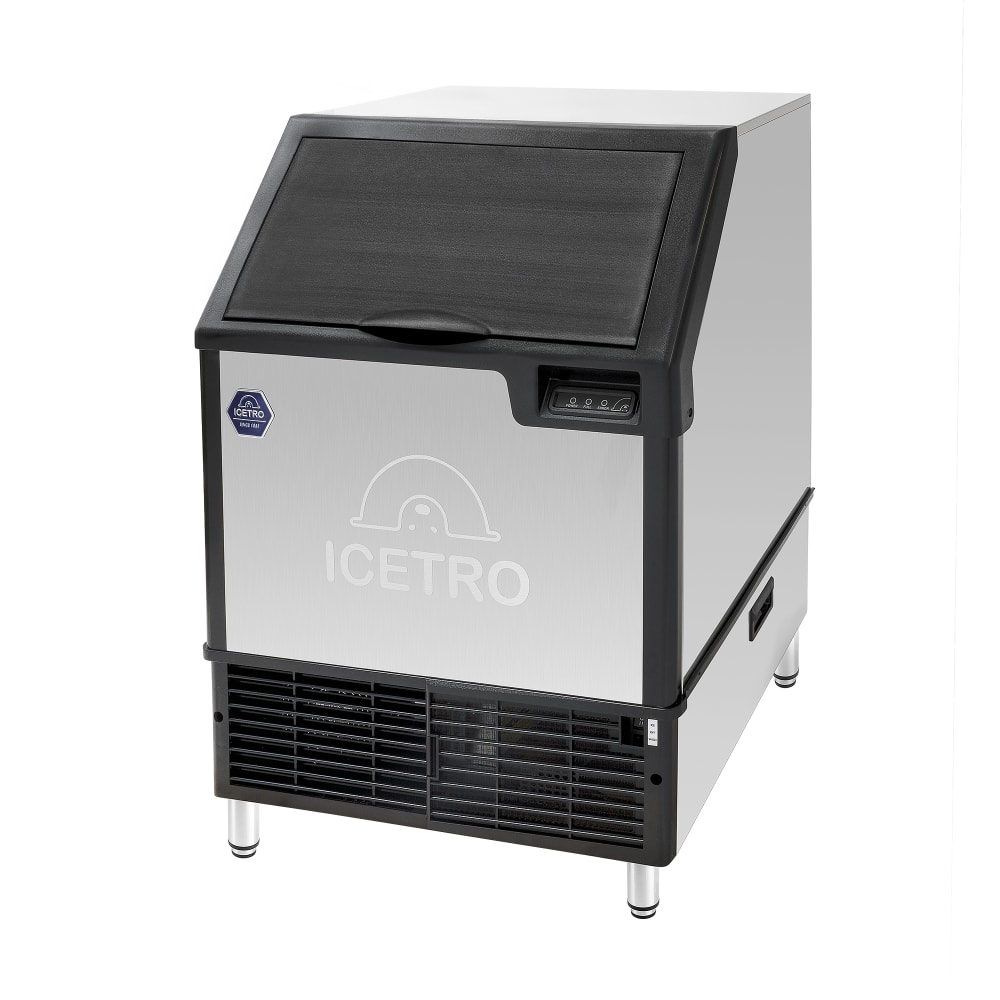

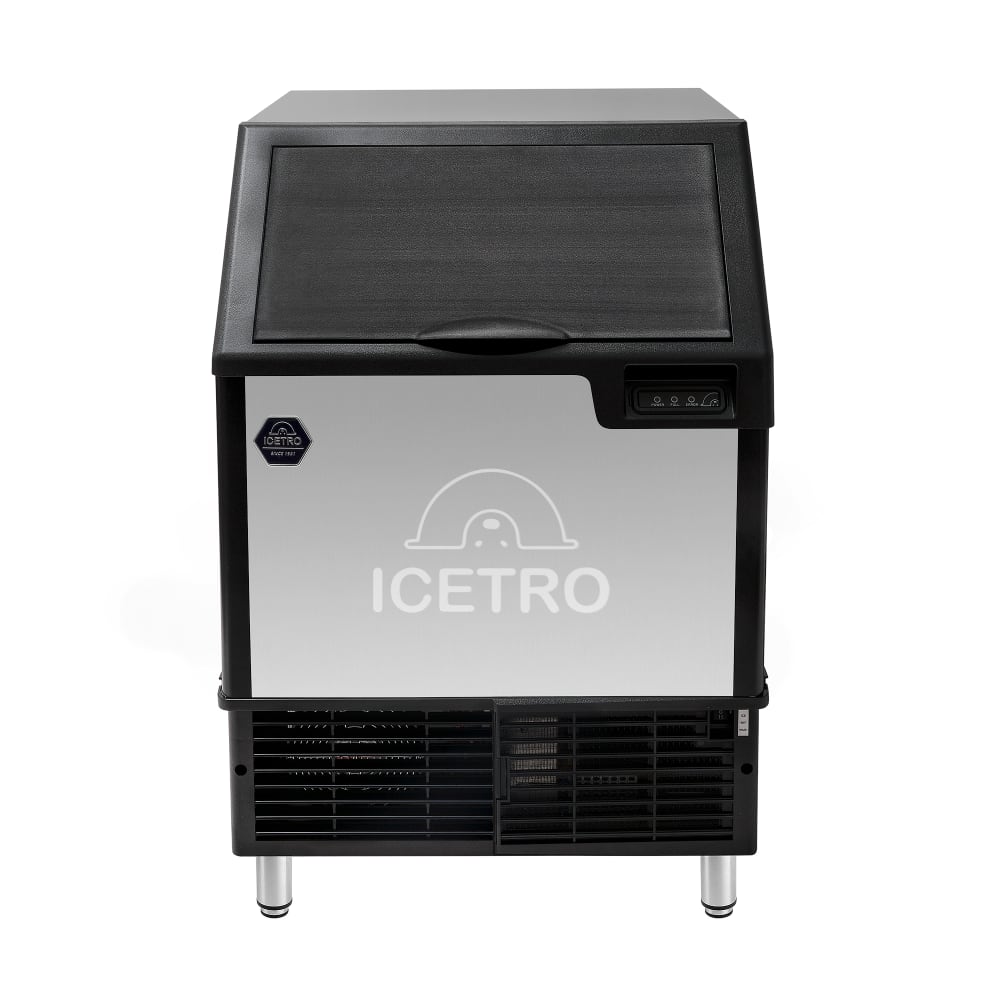

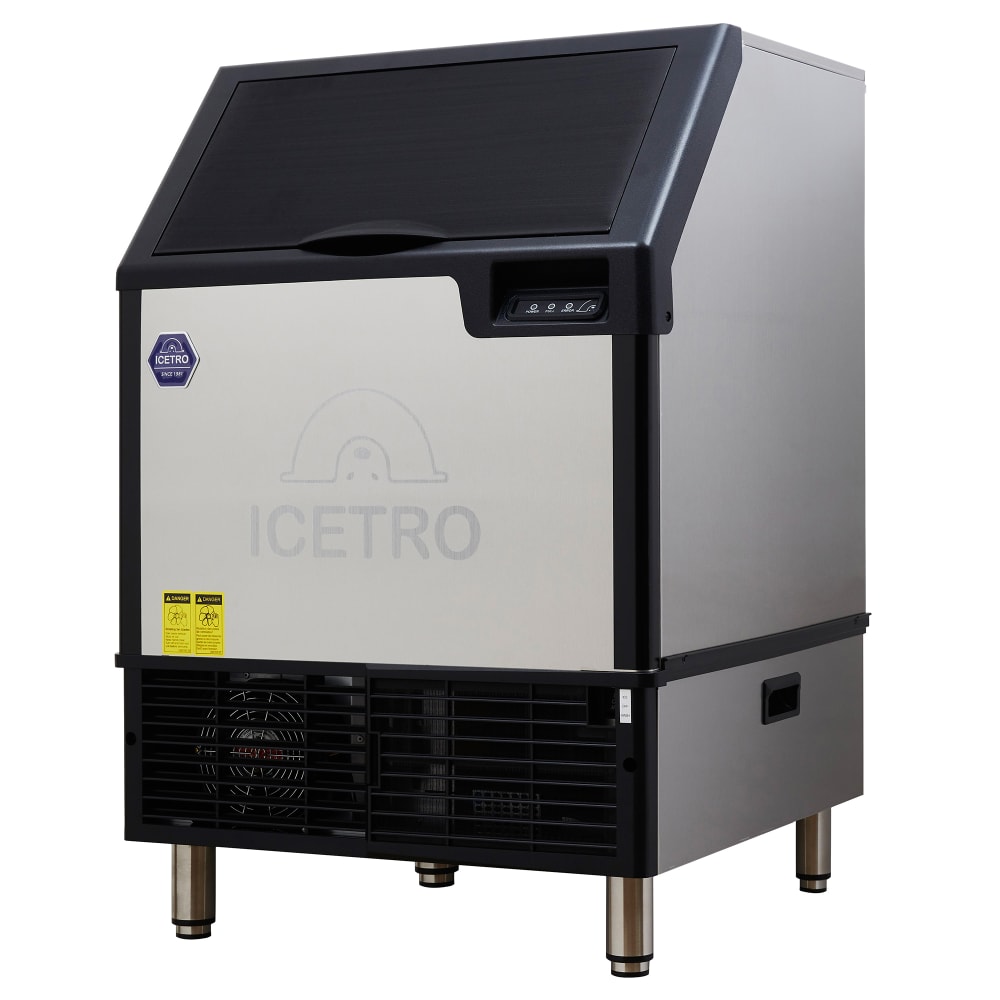

ICETRO IU-0220-AH 26" Half Cube Undercounter Ice Machine - 202 lbs/day, Air Cooled

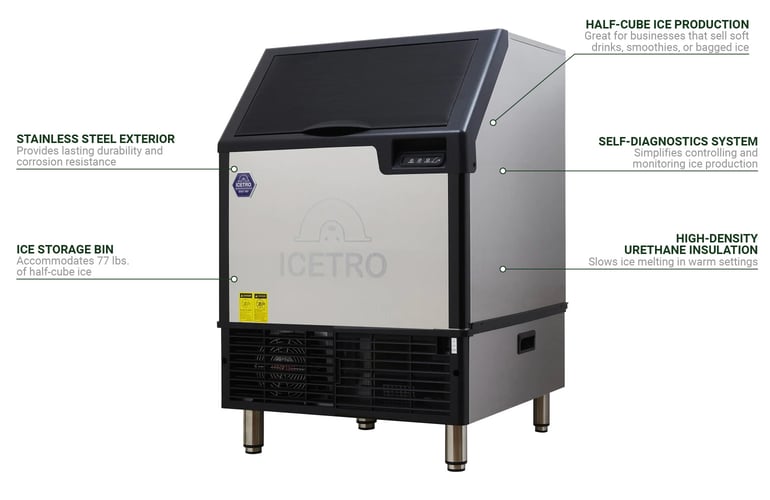

The ICETRO IU-0220-AH ice maker with bin is a two-in-one unit measuring 26 inches wide by 28 inches deep by 39 inches tall to fit beneath a counter. Its stainless steel exterior delivers a sleek, classic aesthetic that pairs well with other back-of-house equipment while boasting durability and corrosion resistance. The bin can support 77 pounds of half-cube ice, and because it's insulated with high-density urethane, it can slow ice melting in warm ambient settings. Staff can retrieve ice from the unit by opening the hinged lid, and when maintenance is required, the forward-sliding bin cover can be removed.

When air is 90 degrees Fahrenheit and incoming water is 70 degrees Fahrenheit, the ICETRO IU-0220-AH ice machine with bin can produce 150 pounds of half-cube ice. This type of ice measures 1¹⁄₈ inches by ³⁄₈ of an inch by ⁷⁄₈ of an inch—ideal for bagging, dispensing, and blending. It's often served with soft drinks because nests densely and displaces more liquid, saving operators on beverage costs. For enhanced ice production, the evaporator boasts an improved freezing surface. Operators can monitor ice production and operational issues with the self-diagnostics control panel.

Ice Maker Details

• Maximum 24-hour production: 202 lbs.
• Produces half-cube ice
• Half-cube ice dimensions: 1¹⁄₈ in. x ³⁄₈ in. x ⁷⁄₈ in.
• Self-contained, air-cooled condenser
• R-404A refrigerant

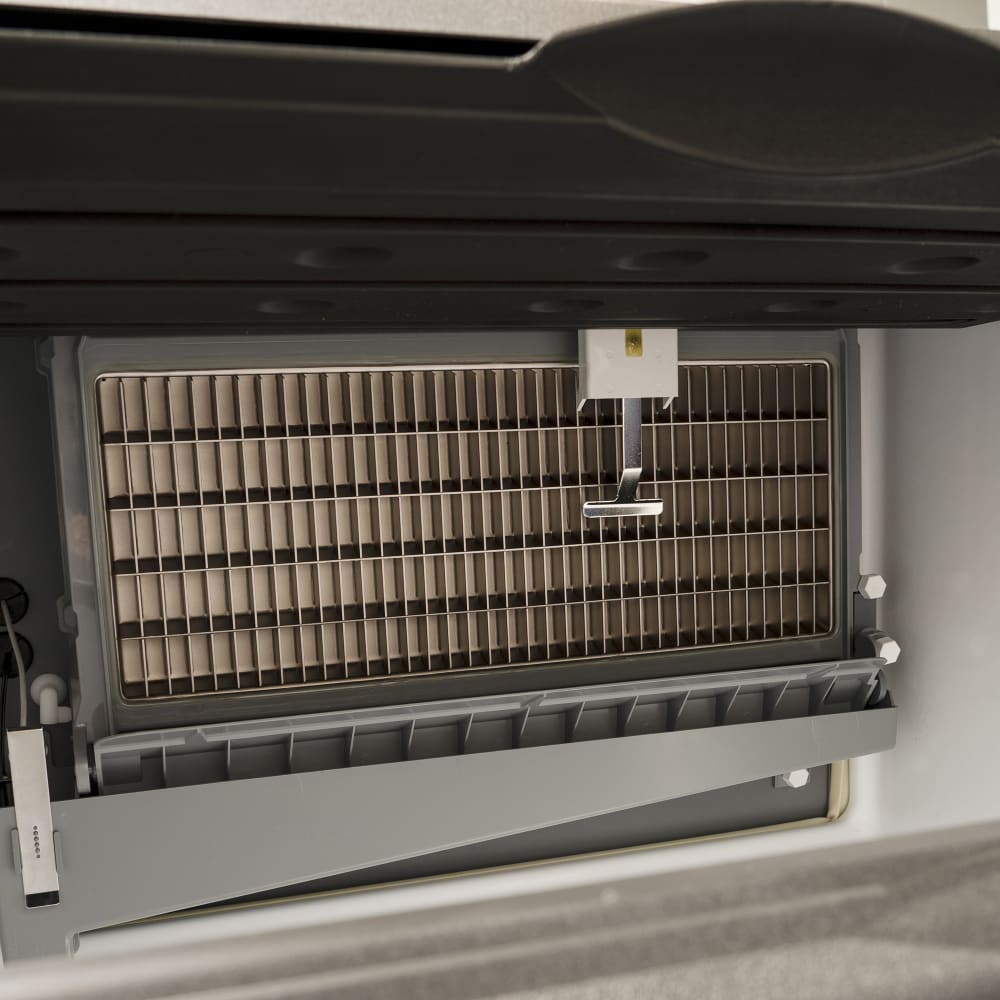

• Improved evaporator freezing surface for increased output

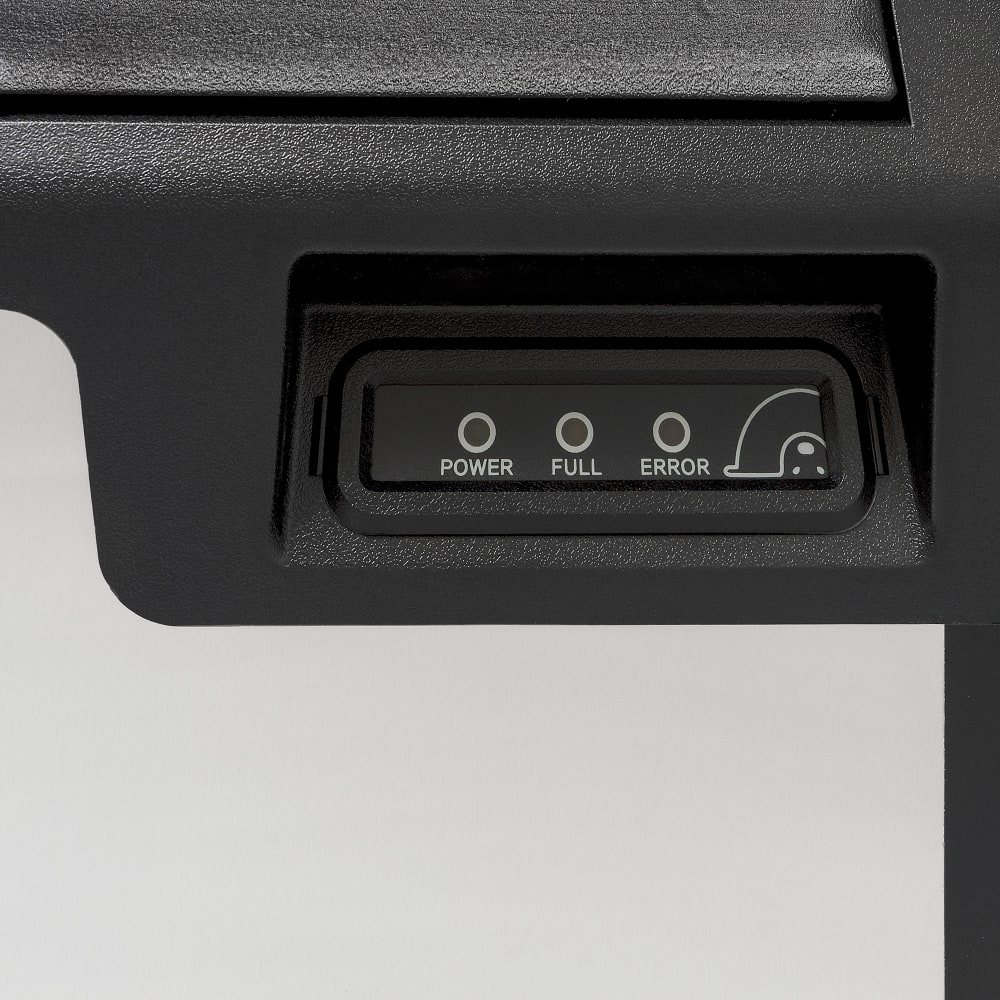

• Control board diagnostics
• Can be used with the ICETRO ICEPRO400 water filtration system (not included)
• Operating ambient temperature range: 50-100 degrees F
• Operating water temperature range: 50-90 degrees F
• Operating water pressure range: 20-80 PSI

Ice Bin Details

• 77-lb. ice storage capacity
• Durable, rust-resistant stainless steel exterior
• High-density urethane insulation slows ice melting

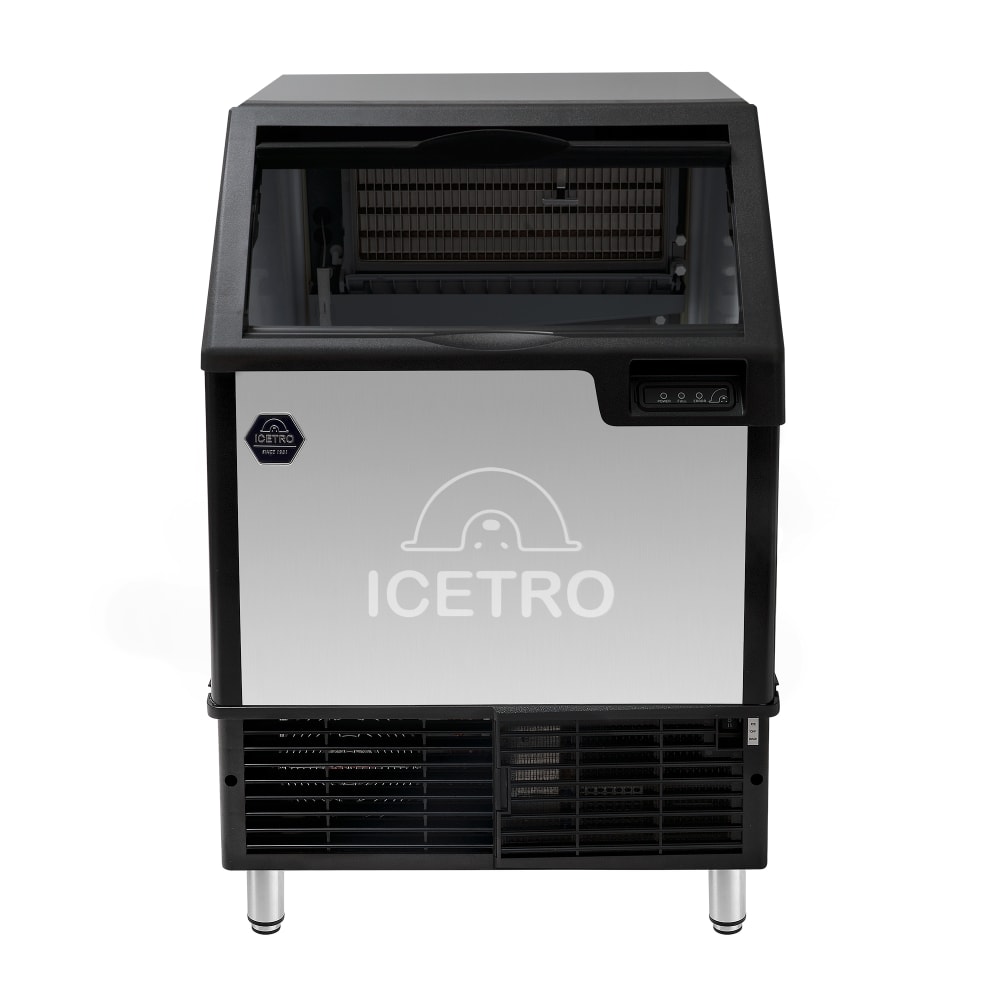

• Hinged lid provides interior access
• Forward-sliding removable bin cover simplifies maintenance

Dimensions & Utilities

• 26 in. W x 28 in. D x 39 in. H
• 15 A, 8.62 kW
• 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug

Product Features

From The Manufacturer

Undercounter Ice Maker with Bin, cube-style, air-cooled, self-contained condenser, production capacity up to 202 lbs/24 hr at 70°/50° (150 lbs at 90°/70°), 77 lbs storage capacity, control board diagnostics, stainless steel exterior, half-size cubes, 115v/60/1-ph, cord with NEMA 5-15P, CE, cETLus, ETL-Sanitation

*Image may not depict product color, inclusions or accessories.

Additional Product Information

Cord Attached

This product includes a cord and plug

3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor Parts

ICETRO IU-0220-AH Specifications

Documents

Spec Sheet

Warranty

Parts Breakdown

Manual

Catalog

Certifications
