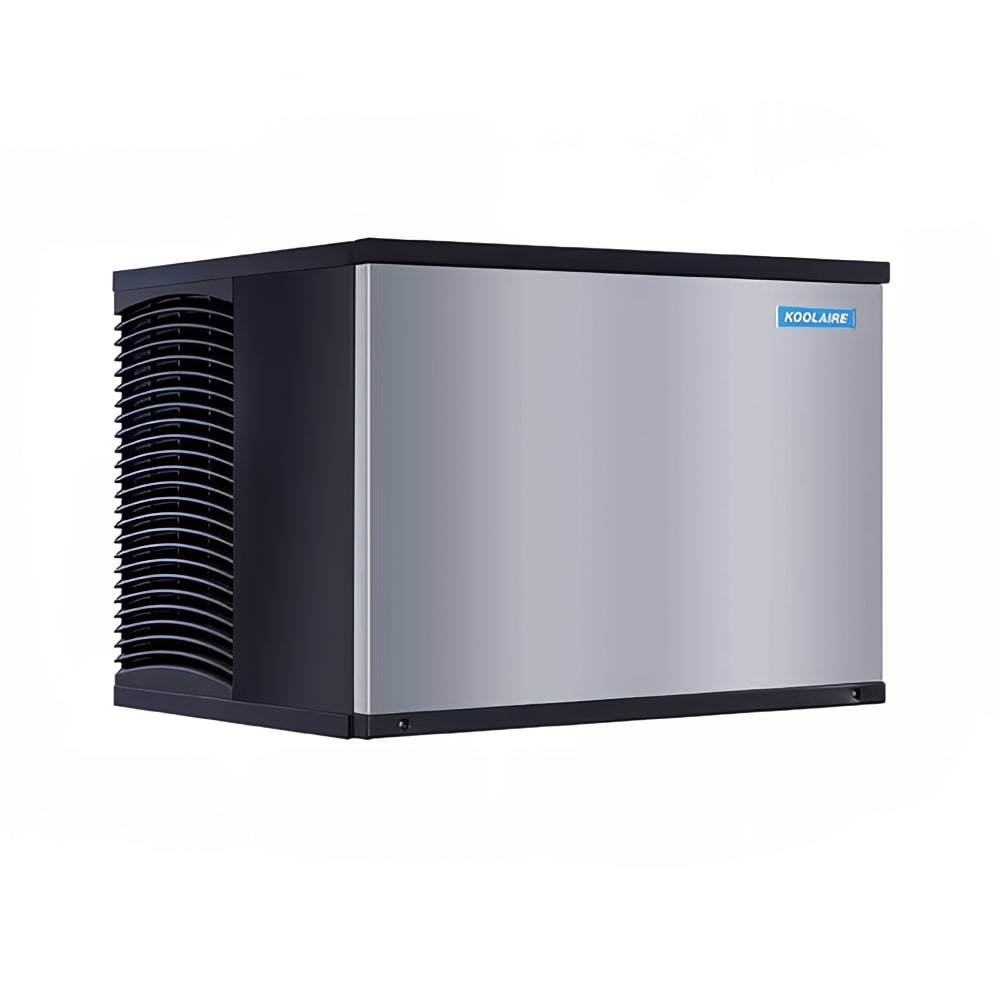

Koolaire KYT0400W 30" Ice Kube Half Cube Ice Machine Head - 422 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,873.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Koolaire KYT0400W Description
With ideal air and water temperatures, the Koolaire KYT-0400W ice machine head can produce 422 pounds of half-size cubes. These cubes work great in glasses, where they settle closely together to displace water. Alternatively, they can be bagged or used to create chilled displays. In this unit, water runs through the distribution tube and onto the evaporator plate, where it collects into cubes. Once the water is frozen, the plate releases the ice. Although it is not included, a Koolaire ice bin can be purchased to catch the cubes as they fall and keep them until needed.
For quick cleanup, the Koolaire KYT-0400W ice maker has white plastic in places that come into contact with water. This coloration helps expose any dirt or mold growing on the surface. Its pump, distribution tube, and shield can all be removed and cleaned thoroughly. This unit's water-cooled condenser requires many times more water than an air-cooled unit, so it is recommended for use only in settings with recirculating cold water systems. The benefit to this design is it does not produce as much heat and noise, which makes it a good choice for hotels and other guest-area uses.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 422-lb. ice production capacity when ambient air is 70 degrees F and incoming water is 50 degrees F
- 360-lb. ice production capacity when ambient air is 90 degrees F and incoming water is 70 degrees F
- Produces half-size cubes
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Cools with R-410A refrigerant
- Water-cooled condenser
- Dirt stands out on the white plastic food zone
- Water shield protects the internal parts from splashes
- Pump, distribution tube, and water shield can be removed without using tools
- Stainless steel-looking exterior avoids smudging and smearing
- Ice bin sold separately
- Surrounding air temperature: 40-100 degrees F
- Incoming water temperature: 40-90 degrees F
- Incoming water pressure: 20-80 PSI
- 24 in. W x 30 in. L x 21.5 in. H
- 11.4 A, 4.7 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYT0400W within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30"W, production capacity up to 422 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KY-0350W)
Koolaire KYT0400W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 422 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 27.5 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 147.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Koolaire KYT0400W Koolaire KYT0400W 30" Ice Kube Half Cube Ice Machine Head - 422 lb/24 hr, Water Cooled, 115v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,873.00 / Each | $4,266.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 422 | 464 |
| Ice Type | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 |
| Rating | Better | Best |
| Voltage | 115 | 115 |
| Series | Ice Kube | Indigo NXT™ |
| Refrigerant | R410A | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor |
