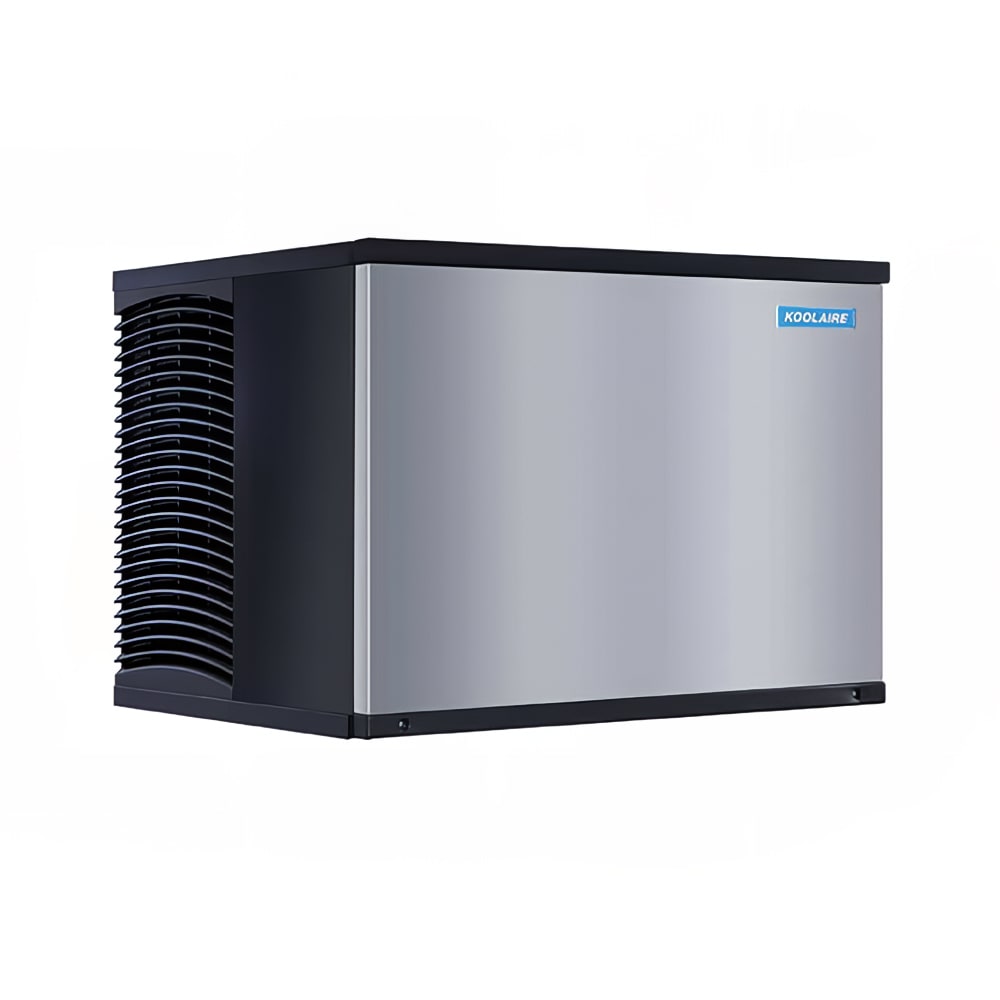

Koolaire KDT0400W 30" Ice Kube Full Cube Ice Machine Head - 425 lb/24 hr, Water Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,873.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Full Cube
Koolaire KDT0400W Description
The Koolaire KDT-0400W ice machine head uses water to cool the refrigerant lines that run over the evaporator, and once the evaporator is cold, water flows over it and freezes into full-size cubes. When water has flowed over the ice thickness probe long enough, it shuts off and refrigerant warms the evaporator plate to release the cubes into the bin or dispenser.
Full-cube ice melts slowly but does not take up as much space in cups or chill as quickly as half-cube ice. This unit can produce 425 pounds of ice with ideal ambient air and incoming water temperatures. White plastic components in the food zone support quick cleanup, and specific parts are removable for cleaning. Its exterior finish prevents fingerprints and stains from marking the surface. The Koolaire KDT-0400W ice maker does not come with an ice bin or dispenser.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 425-lb. ice production capacity
- 360-lb. AHRI-certified ice production capacity
- 2 screws and the door must be removed to access the food zone
- Exterior finish resists corrosion
- Quick-cleaning white plastic food zone
- Removable distribution tube, floats, pump, trough, and water shield
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R410A refrigerant
- Ice bin and dispenser sold separately
- Ice deflector is required with an ice bin but not with a dispenser
- 3,800 average BTU; 6,000 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and sides clearance: 8 in.
- Required rear clearance: 5 in.
- Water curtain must be closed and toggle switch set to "ice"
- Water is removed from the trough by the water purge cycle
- Evaporator plate is cooled by refrigerant lines, which are cooled with water
- Water freezes in the evaporator plate once it is chilled
- Ice thickness float switch turns on when water flows over it
- Harvest float switch is activated when the ice sheet is thick enough
- Refrigerant heats the evaporator plate to release the ice
- 30 in. W x 24 in. D x 21.5 in. H
- 11.4 A, 4.6 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDT0400W within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30"W, production capacity up to 425 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R410a refrigerant, NSF, cULus, CE, (replaces KD-0350W)
Koolaire KDT0400W Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 425 |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 27.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R410A |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 147.00 |
