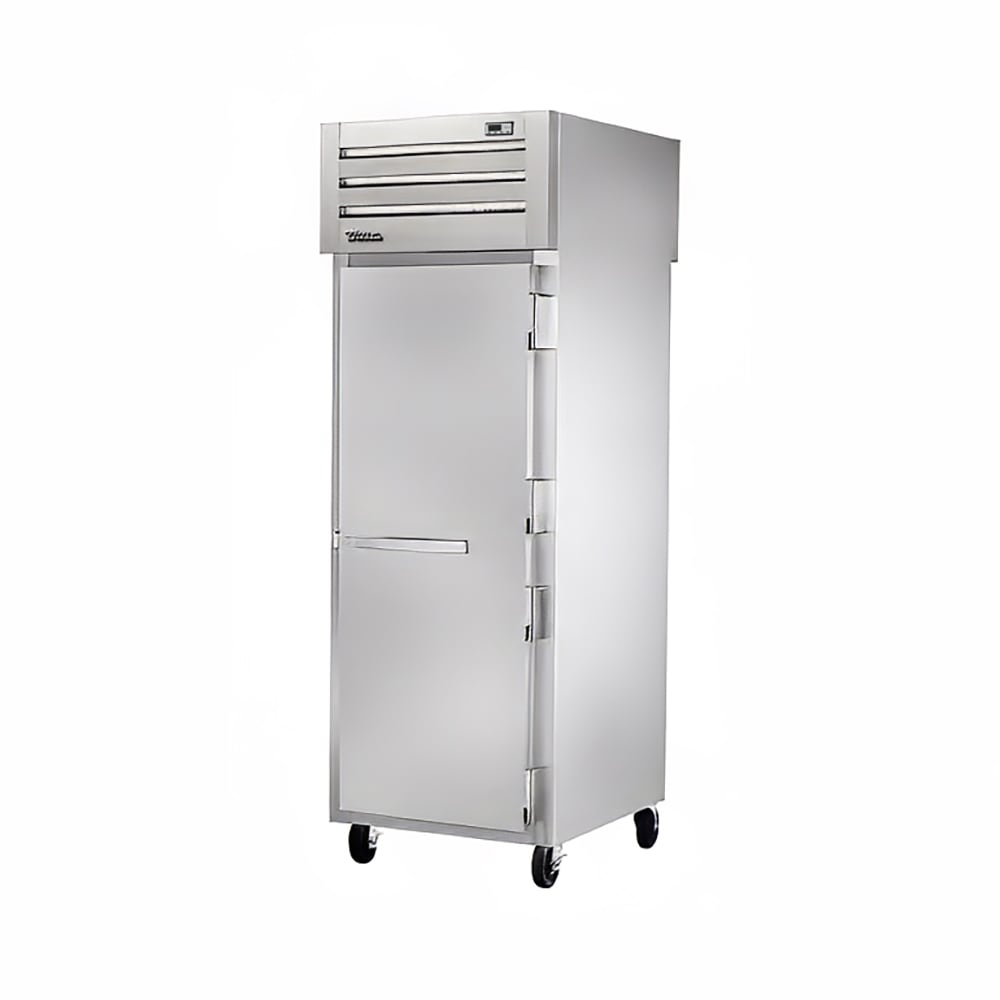

True STG1RPT-1S-1S-HC 27 1/2" One Section Pass Thru Refrigerator, (2) Right Hinge Solid Doors, 115v

KaTom #: 598-STG1RPT1S1S • MPN: STG1RPT-1S-1S-HC
  • 598-STG1RPT1S1S Primary Thumbnail Image
Free Shipping Item
Lowest Price Guarantee

$7,484.59 /Each

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Kennedy Robison User Image
Ask a Foodservice Equipment Specialist

True Refrigeration STG1RPT-1S-1S-HC Description

The True STG1RPT-1S-1S-HC SPEC SERIES® single-section pass-thru refrigerator has three PVC-coated wire shelves to hold product, and the interior is insulated with polyurethane that is foamed in place to lock in cold air. Aluminum side walls and back in the interior resist corrosion, while the stainless steel floor and ceiling provide durability. Its exterior is constructed of a durable stainless steel front and corrosion-resistant aluminum sides with a matching finish. Two stainless steel doors, one on the front and one on the rear, create a pass-thru design and have bolt-style locks to eliminate theft. A stay-open door feature enables the doors to remain open at a 120-degree angle for efficient product loading.

The True STG1RPT-1S-1S-HC pass-thru refrigerator provides a digital temperature display on the exterior, enabling users to keep an eye on the temperature. LED lighting illuminates the interior for product visibility, and the refrigeration unit is top mounted, protecting it from tampering by unauthorized employees. A self-contained capillary tube system uses R290 hydrocarbon refrigerant to cool the unit, which can be set to a temperature between 33 and 38 degrees Fahrenheit. Electronically commutated evaporator and condenser fan motors push a consistent volume of air to reduce heat production and energy consumption.

This unit's compressor fan reverses for 20 seconds when it starts up to blow dust and debris off the condensing coil. Prolonging the lifespan of the unit, this technology improves system efficiency, maintains cold, consistent storage temperatures, and minimizes energy consumption. Even though this reversing feature provides the system with a variety of benefits, it doesn’t replace the need for routine preventative maintenance.

Dual Solid-Door Access
Stainless steel doors front and rear enable pass-thru loading and secure storage.
Top-Mount Condensing Unit
Keeps refrigeration system out of traffic area for reliability and hygiene.
Foamed-In-Place Insulation
Thick polyurethane insulation maximizes cold retention and cabinet strength.
Easy-Clean Interior
Aluminum liner and stainless floor resist corrosion and wipe clean quickly.
Digital Temp Display
External readout allows precise monitoring of cabinet temperature.
LED Interior Lights
Evenly illuminates interior for fast product identification.

  • Part of the SPEC SERIES
  • Stainless steel front with corrosion-resistant aluminum sides on the exterior
  • Interior aluminum side walls and back with stainless steel floor and ceiling
  • 3 PVC-coated wire shelves maximize storage
  • Interior retains cold air with polyurethane insulation
  • Front and rear stainless steel doors
  • Door remains open at 120 degrees
  • Bolt-style door locks prevents unauthorized access
  • 4 external cam-lift door hinges per door section
  • Magnetic door gaskets are removable by hand
  • Digital temperature display on the exterior enables temperature monitoring
  • 5-in. castors have locks on the front set
  • LED lighting illuminates the interior

  • Top-mounted refrigeration system features a self-contained capillary tube system
  • Uses R290 hydrocarbon refrigerant
  • Electronically commutated evaporator and condenser fan motors save energy
  • Fan motor runs in reverse for 20 seconds when it starts up, blowing debris off condensing coil
  • Evaporator is located outside the food zone to maximize capacity
  • Electronically controlled

  • 27 1⁄2 in. W x 39 1⁄8 in. D x 84 1⁄8 in. H
  • 3.8 A, 1⁄4 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration STG1RPT-1S-1S-HC within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

SPEC SERIES® Refrigerator, pass-thru, one-section, (1) stainless steel door front & rear with locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified, ENERGY STAR®

Warranty Icon
7-year Parts & Labor; 7-year Compressor

True Refrigeration STG1RPT-1S-1S-HC Specifications
