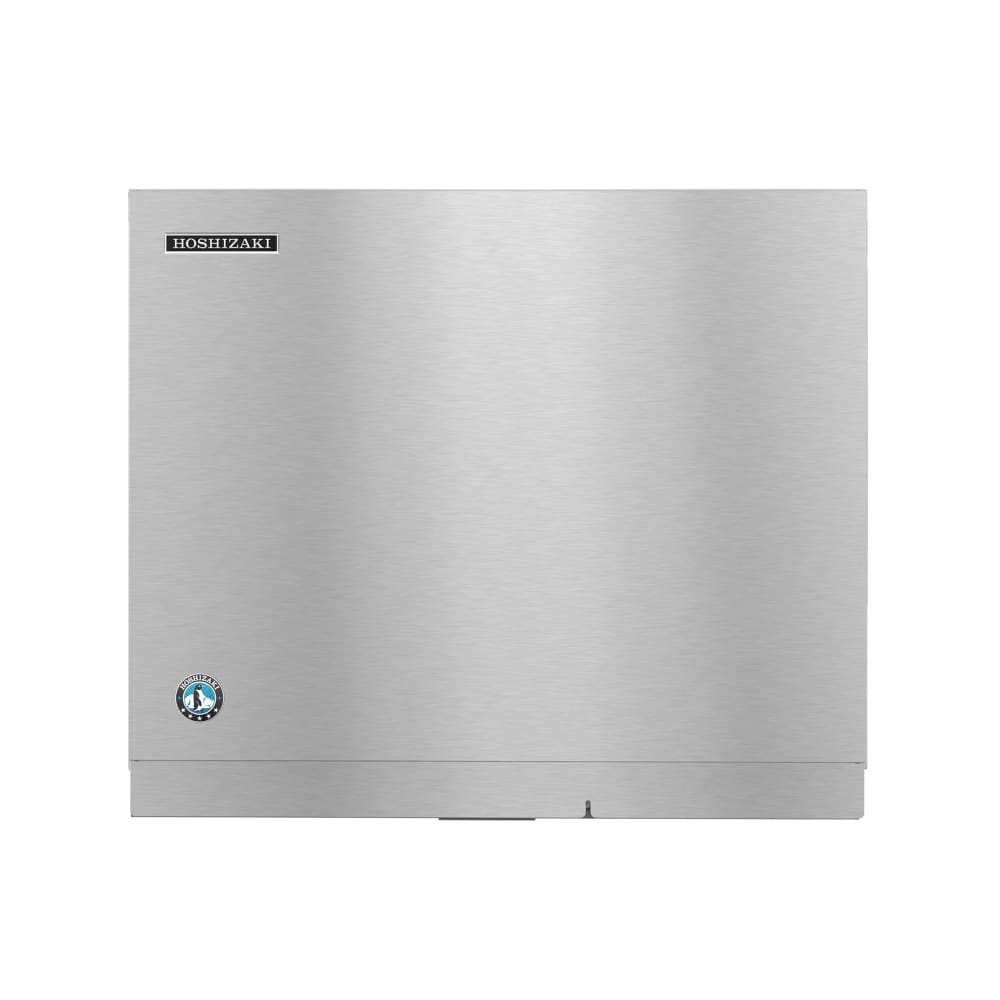

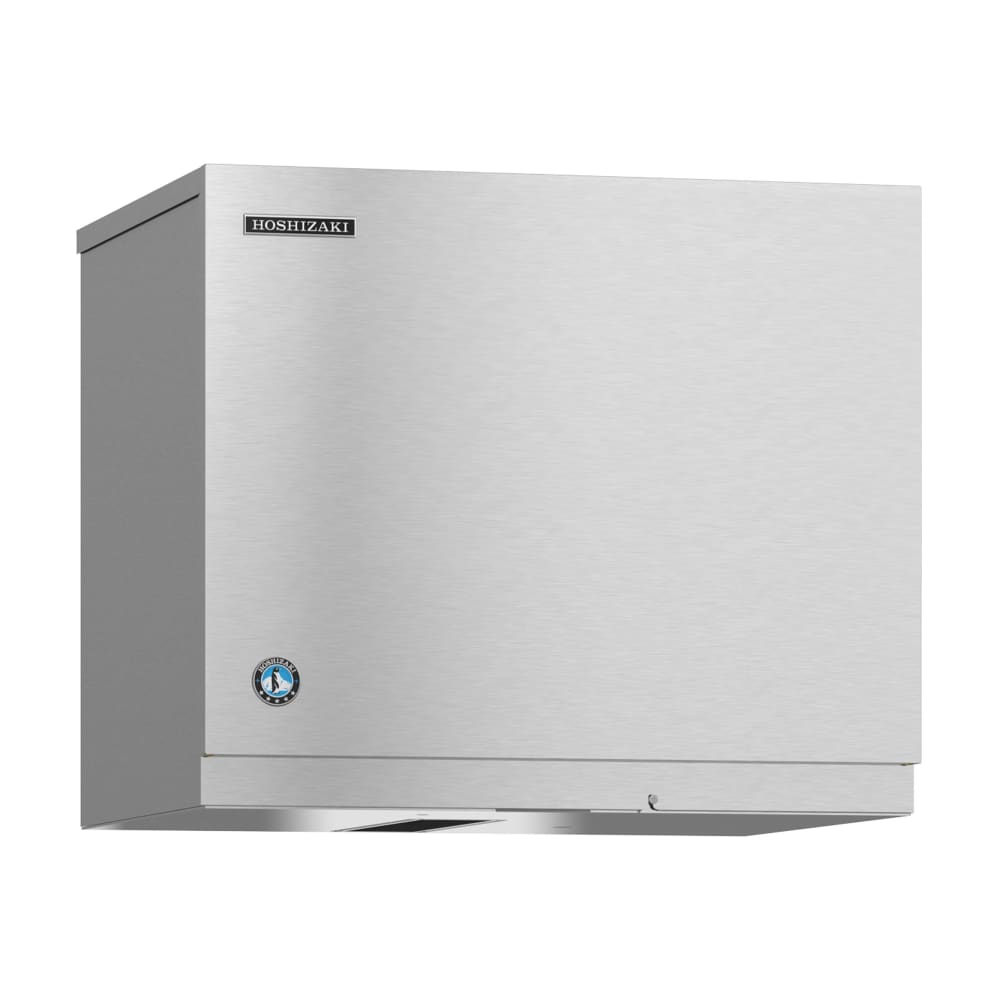

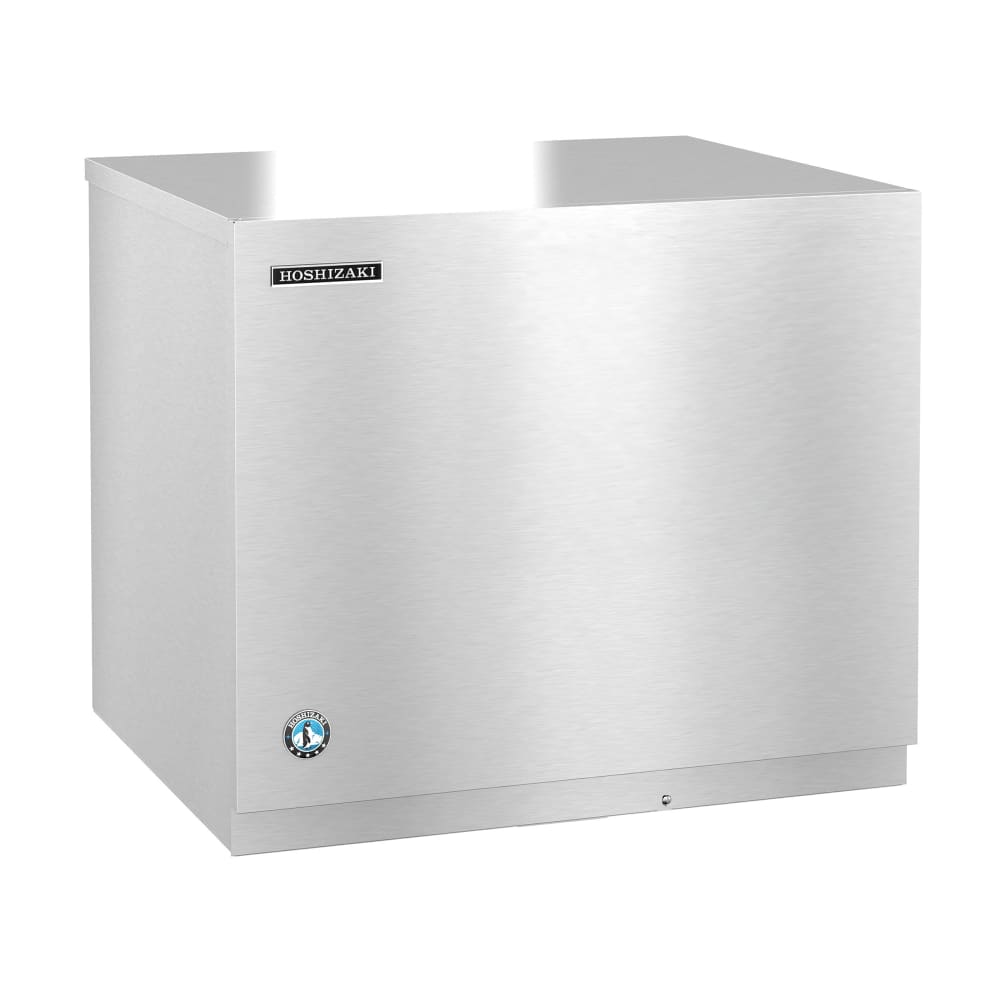

Hoshizaki KMD-705MWJ 30" Crescent Cube Ice Machine Head - 773 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 4 - 8 Business Days
$6,000.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Hoshizaki KMD-705MWJ Description
For full operation of the Hoshizaki KMD-705MWJ ice maker head, operators must purchase a separate collection base. The unit must be hardwired into the location's electrical system because it doesn't come with a plug. R404a refrigerant is circulated throughout the maker using the water-cooled refrigeration system; water lines connect to the locations system.
When incoming water flowing into the Hoshizaki KMD-705MWJ maker head is 50 degrees Fahrenheit and the ambient air is 70 degrees, the unit can produce 592 pounds of ice in a day. As incoming water in water-cooled systems is often cooler than ambient air, ice production will be consistent. The self-diagnostic program works with the EverCheck™ alert system to notify operators of any issues as they arise. Most issues will be automatically addressed, reducing the need for user intervention.
- KMEdge X series
- 773-lb. daily production in ideal conditions
- Ideal conditions: 70-deg. F air, 50-deg. F incoming water
- Crescent-shape ice
- Ice dimensions: 1 1⁄8 x 1 1⁄2 in. x 1⁄2 in.
- Stainless steel finish
- Snap-fit parts
- Self-contained condenser
- Water-cooled refrigeration
- Self-diagnostic programming
- EverCheck alert system
- CycleSaver™ design
- R404a refrigerant
- Requires collection bin
- 30 in. W x 24 in. D 26 in. H
- 13 A
- 115 V/60 Hz/ 1ph (hardwired)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hoshizaki KMD-705MWJ within the 48 contiguous states.
From The Manufacturer
Ice Maker, Cube-Style, 30"W, water-cooled, self-contained condenser, production capacity up to 773 lb/24 hours at 70°50° (720 lb AHRI certified at 90°/70°), stainless steel finish, crescent cube style, R-404A refrigerant, 115v/60/1-ph, 13 amps, NSF, UL (Replaces KML-700MWJ)
Watch a video about this product
Hoshizaki KMD-705MWJ Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hoshizaki |
| 24 Hr. Production (lb) | 773 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 26 |
| Ice Type | Crescent Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | KM EDGE X |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts |
| Water Inlet (in) | 0.5 |
| Width (in) | 30 |
| Weight | 200.00 |
Important Prop 65 information for California residents.
- Hoshizaki KML700MWJ
Compare to Similar Items
| Attributes |
Hoshizaki KMD-705MWJ Hoshizaki KMD-705MWJ 30" Crescent Cube Ice Machine Head - 773 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $6,000.00 / Each | $6,346.00 / Each | $5,073.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 4 - 8 Business Days | Typically ships in 2 - 3 weeks | |
| 24 Hr. Production (lb) | 773 | 907 | 620 |
| Ice Type | Crescent Cube | Full Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30 | 30 | 30.25 |
| Rating | Best | Best | Better |
| Voltage | 115 | 208/230 | 208/230 |
| Series | KM EDGE X | Prodigy ELITE® | Elevation Series™ |
| Refrigerant | R404A | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator Parts & Labor; 5-year Compressor & Condenser Parts | Commercial: 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor & Condenser Parts; Residential: 1-year Parts & Labor | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
