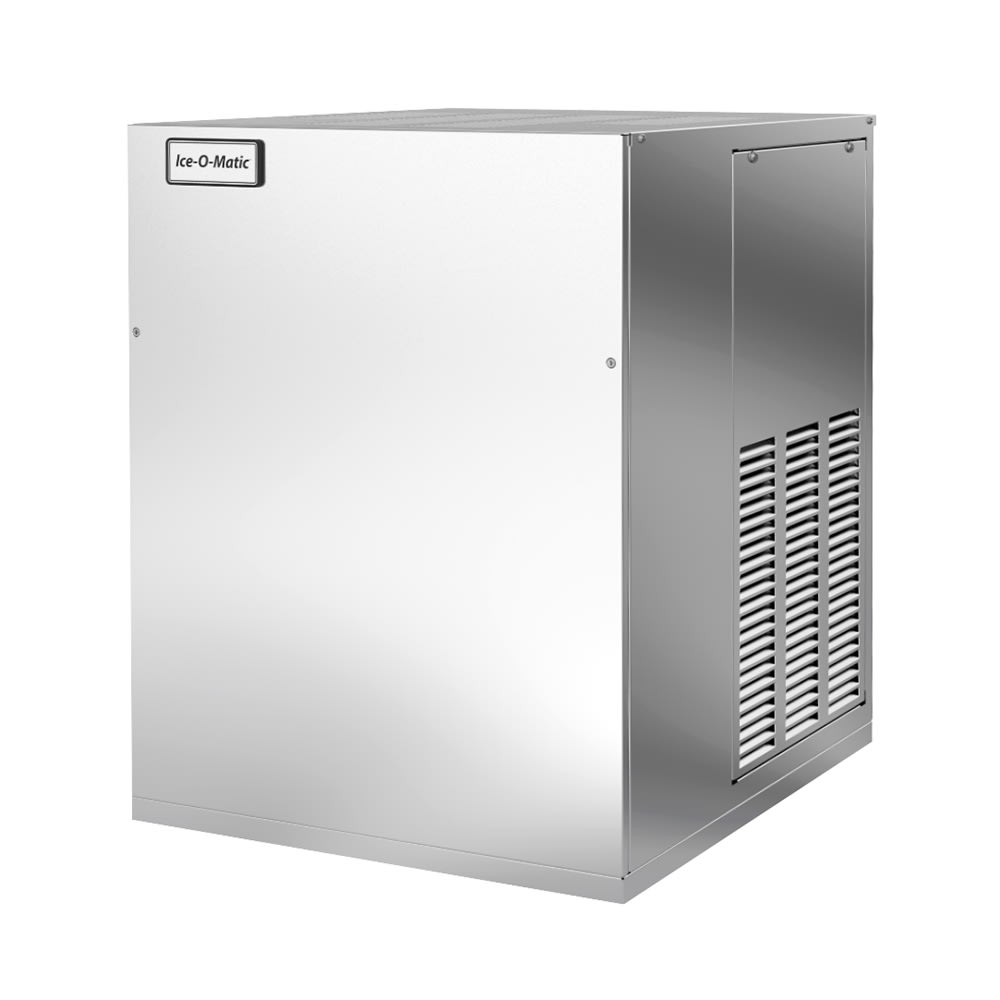

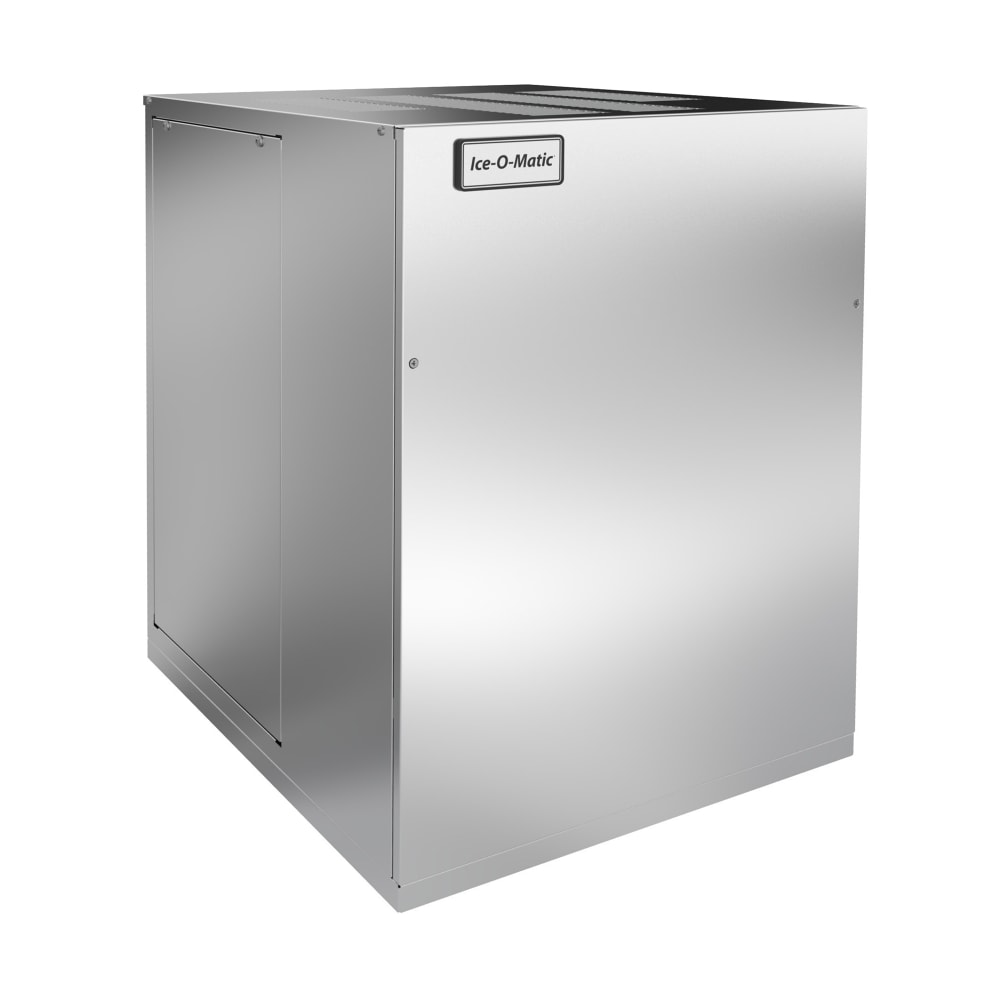

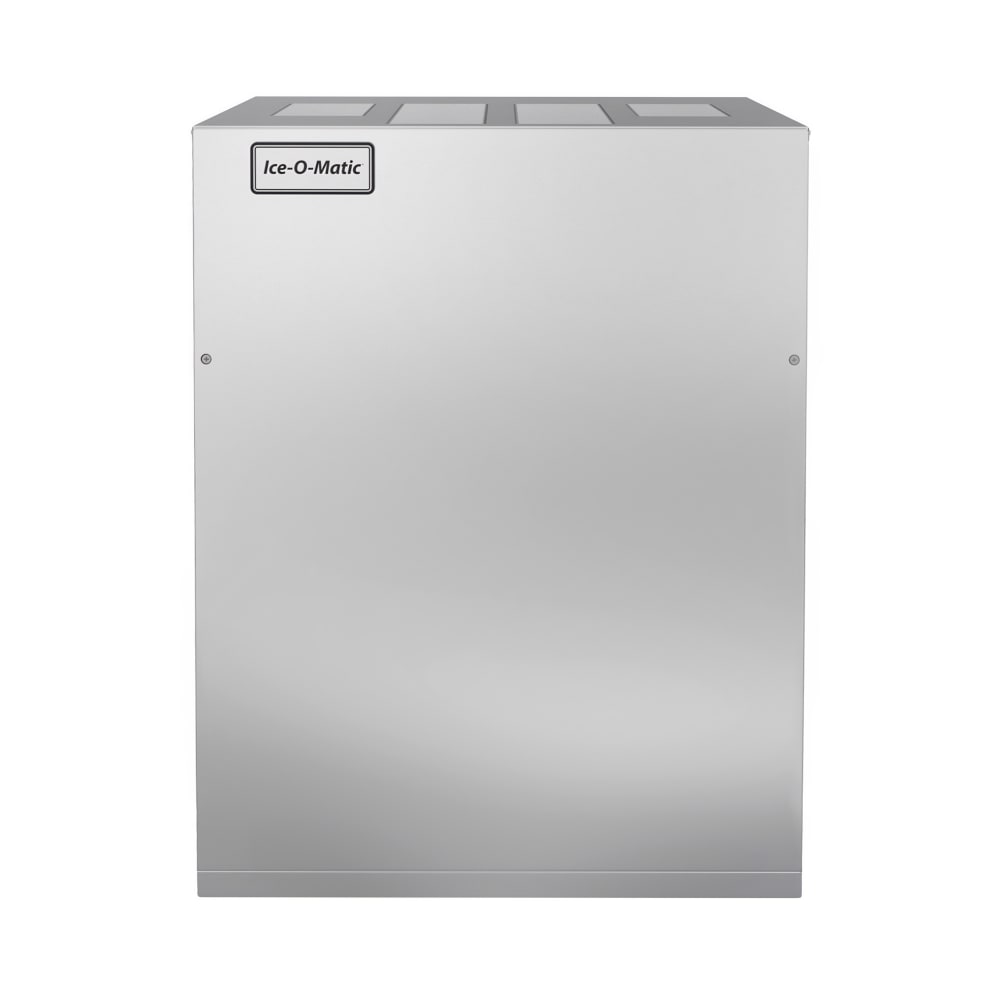

Ice-O-Matic MFI1506A90 21" Flake Ice Machine Head - 1377 lb/24 hr, Air Cooled, 208-230v/1ph
Typically ships in 6 - 8 weeks
$9,703.00 /Each
Selected Compressor Type: Air Cooled
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic MFI1506A90 Description
The Ice-O-Matic MFI1506A90 ice maker head is a great choice for supermarkets and delicatessens because it produces flake ice—a small ice form well suited for handling packaging needs in refrigerated display cases. It can also be used in hospitals for the formation of ice packs. Under ideal conditions, the head is capable of producing as much as 1,377 pounds of ice a day, enabling it to keep up with sizable ice production needs.
The Ice-O-Matic MFI1506A90 ice machine is constructed with a stainless steel evaporator and auger, meaning both components are durable and long lasting to hold up well against potential rust, corrosion, and scratching. A built-in water sensor detects when water is low in order to circumvent low water failure, and if problems arise, the head’s SystemSafe feature will deactivate it.
- 1,377-lb. maximum daily ice production
- Air-cooled system
- Produces flake ice
- Uses R290 refrigerant
- Stainless steel finish
- Heavy-duty gearbox and industrial-grade roller bearings
- Stainless steel evaporator and auger resist scratching and rusting
- Water sensor prevents low-water failure
- SystemSafe feature deactivates machine if problems arise
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-120 PSI
- 8,100-BTU heat transfer capacity
- Ideal clearances: 6 in.
- 21 in. W x 24 in. D x 27 in. H
- 15.8 A, 3.5 kW
- 208-230 V/60 Hz/1 ph
- Low-profile 21-in. width front air intake and rear exhaust allows installation with no side clearance
- Creates up to 1,450-lb. flake ice per 24-hr. with 70 degree F air and 50 degree F water
- Creates up to 1,050-lb. flake ice per 24-hr. with 90 degree F air and 70 degree F water
- SystemSafe feature monitors gearbox load and shuts system off if an unsafe load is detected, preventing costly damage to components
- Water sensor prevents low- and no-water failures; is not affected by high-mineral water
- Stainless steel evaporator and auger for a long life
- Built with industrial-grade roller bearings and heavy-duty gearbox for the ultimate durability
- Compatible with IFQ2 manifold water filter system with 2 IOMQ cartridges (sold separately)
- Overall Dimensions: 21-in. W x 24-in. D x 27-in. H
- 208-230 V/60 Hz/1-ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic MFI1506A90 within the 48 contiguous states.
From The Manufacturer
Flake Ice Maker, air-cooled self contained condenser, top and side air dual exhaust, approximately 1377 lb/625 kg production/24 hours at 70°/50° (1084 lb at 90°/70°), stainless finish, R290 refrigerant, cULus, cUL Energy Verified
Ice-O-Matic MFI1506A90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 1377 |
| Also Known As | MFI1506A |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Flake |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 21 |
| Weight | 290.00 |
Compare to Similar Items
| Attributes |
Ice-O-Matic MFI1506A90 Ice-O-Matic MFI1506A90 21" Flake Ice Machine Head - 1377 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $9,703.00 / Each | $13,710.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 6 - 8 weeks | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 1377 | 2280 |
| Ice Type | Flake | Flake |
| Compressor Type | Air Cooled | Remote Cooled |
| Width (in) | 21 | 30 |
| Rating | Better | Best |
| Voltage | 208/230 | 115 |
| Refrigerant | R290 (Hydrocarbon) | R404A |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts | 3-year Parts & Labor; 5-year Compressor & Condenser Parts |
