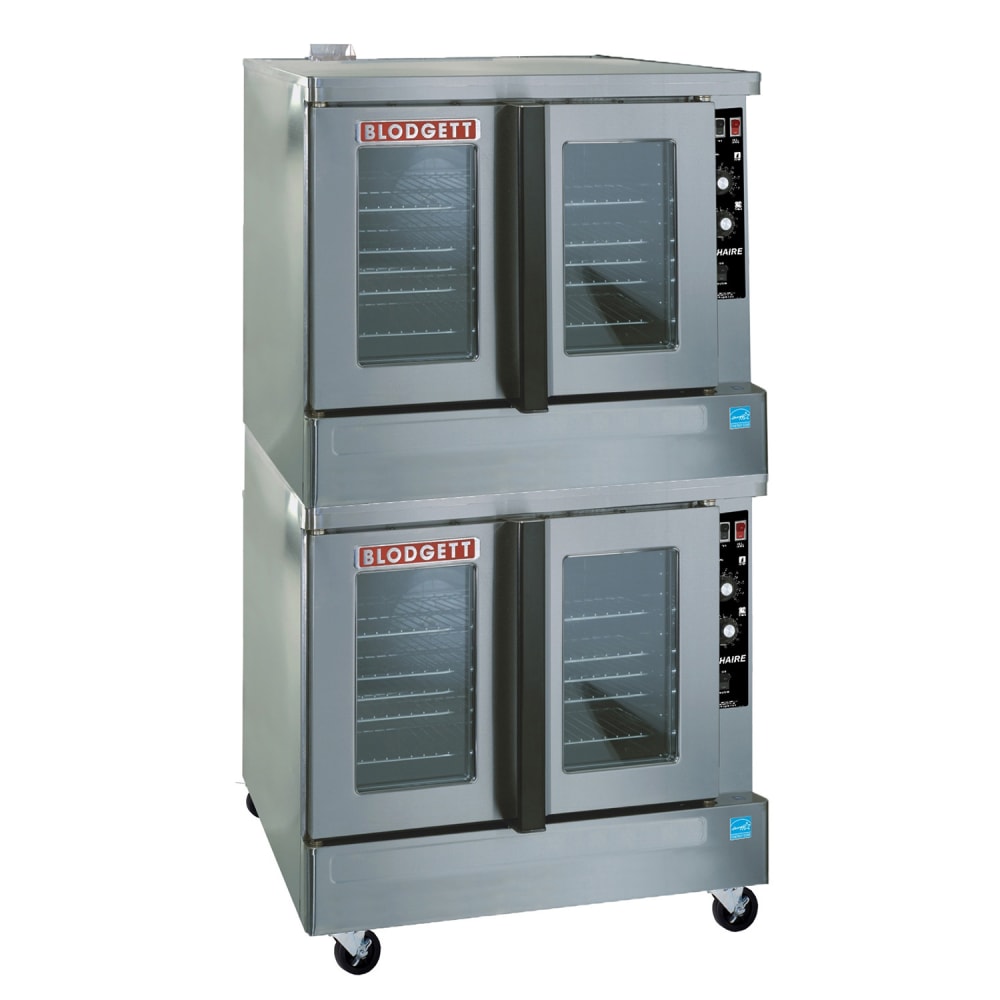

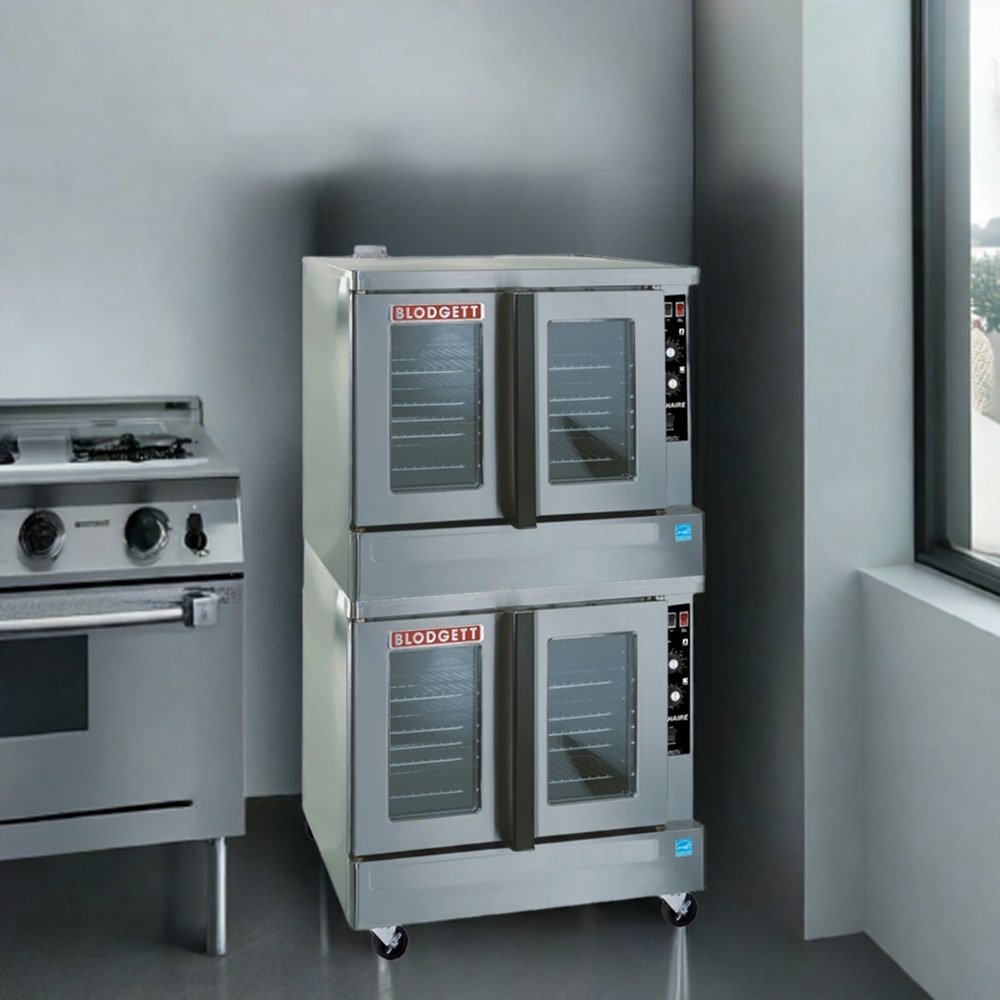

Blodgett ZEPH-100-G-ES DBL Zephaire Double Full Size Liquid Propane Gas Convection Oven - 90,000 BTU

KaTom #: 015-ZEPH1GESDBLMLP • MPN: ZEPH-100-G-ESDBL (M) LP
  • 015-ZEPH1GESDBLMLP Primary Thumbnail Image
  • 015-ZEPH1GESDBLMLP Multiple Thumbnail Image #1

Typically ships in 9 - 13 Business Days

Free Shipping Item

$14,698.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Liquid Propane

Natural GasNatural Gas
David Young User Image
Ask a Foodservice Equipment Specialist

Blodgett ZEPH-100-G-ES DBL Description

For quick baking, rethermalizing, and roasting, the Blodgett ZEPH-100-G-ES DBL double-deck convection oven features a direct-fired gas system, removable inshot burners, a two-speed fan motor, and a 3⁄4-horsepower blower motor; together, these components generate and circulate heat within its two sections using LP gas. Users can adjust temperatures from 200 to 500 degrees Fahrenheit for each compartment using the solid-state infinite controls, which include a 60-minute timer to prevent undercooking or burning. To preserve cabinet temperatures in various environments and as pans are loaded or retrieved, a 1-inch solid block and 1 inch of mineral fiber insulation are built into the unit.

Each Blodgett ZEPH-100-G-ES DBL gas convection oven section features a durable, double-sided porcelainized baking compartment liner and includes five chrome-plated racks with 11 positions suited to support five 18-inch by 26-inch baking pans in left-to-right positions. Because the compartments' doors open dependently with their powder-coated door handles, operators can load and remove pans with one hand, streamlining operation. Users can monitor the baking process through the doors' dual-pane thermal glass windows, and the doors' stainless steel frames withstand repeated opening and closing. Built to last in commercial settings, this 38 1⁄4-inch-wide by 36.88-inch-deep by 83 19⁄25-inch-high unit's front, top, and sides are constructed of durable, rust- and corrosion-resistant stainless steel; its 6 1⁄2-inch stainless steel legs can be adjusted to stabilize on irregular surfaces.

  • 2 decks with standard depths
  • Stainless steel top, sides, and front
  • Full angle-iron frame
  • 2-in. interior insulation
  • 5 removable, chrome-plated racks per compartment
  • Capacity per section: (5) 18-in. x 26-in. pans
  • 11 rack positions (spaced 1 5⁄8 in. apart)
  • Direct-fired gas system
  • Electronic spark-ignition control system
  • Removable inshot burners
  • Internal pressure regulator
  • Manual gas service cut-off switch on control panel's front
  • 2-speed fan motor
  • 3⁄4-HP blower motor
  • Automatic thermal overload protection
  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan
  • Interior oven lights
  • 4 dependent doors
  • Powder-coated door handles
  • Dual-pane thermal glass windows
  • Triple-mounted, pressure-lock doors with turnbuckle assemblies
  • Double-sided porcelain baking compartment liners
  • Aluminized steel combustion chambers
  • Single-inlet blower wheels
  • 6 1⁄2-in. adjustable stainless steel legs
  • Flue connector included
  • 90,000 BTU

  • Interiors: (2) 29 in. W x 24 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 36 7⁄8 in. D x 83 19⁄25 in. H
  • 8 A, 3⁄4 HP
  • 115 V/60 Hz/1 ph, 6-ft. electric cord set included
  • Powered by LP gas
  • 3⁄4-in. NPT gas supply per section

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett ZEPH-100-G-ES DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Zephaire Convection Oven, gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-M) solid state infinite controls with 60 min. manual timer, two speed fan, porcelainized baking compartment, dependent glass doors, interior light, flue connector, stainless steel front, sides & top, 6" stainless steel legs, 45,000 BTU each, cETLus, NSF, ENERGY STAR®

Warranty Icon
2-year Parts & Labor; 3-year Door Parts

Watch a video about this product

Blodgett ZEPH-100-G-ES DBL Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.

Warning Small WARNING: Important Prop 65 information for California residents.
