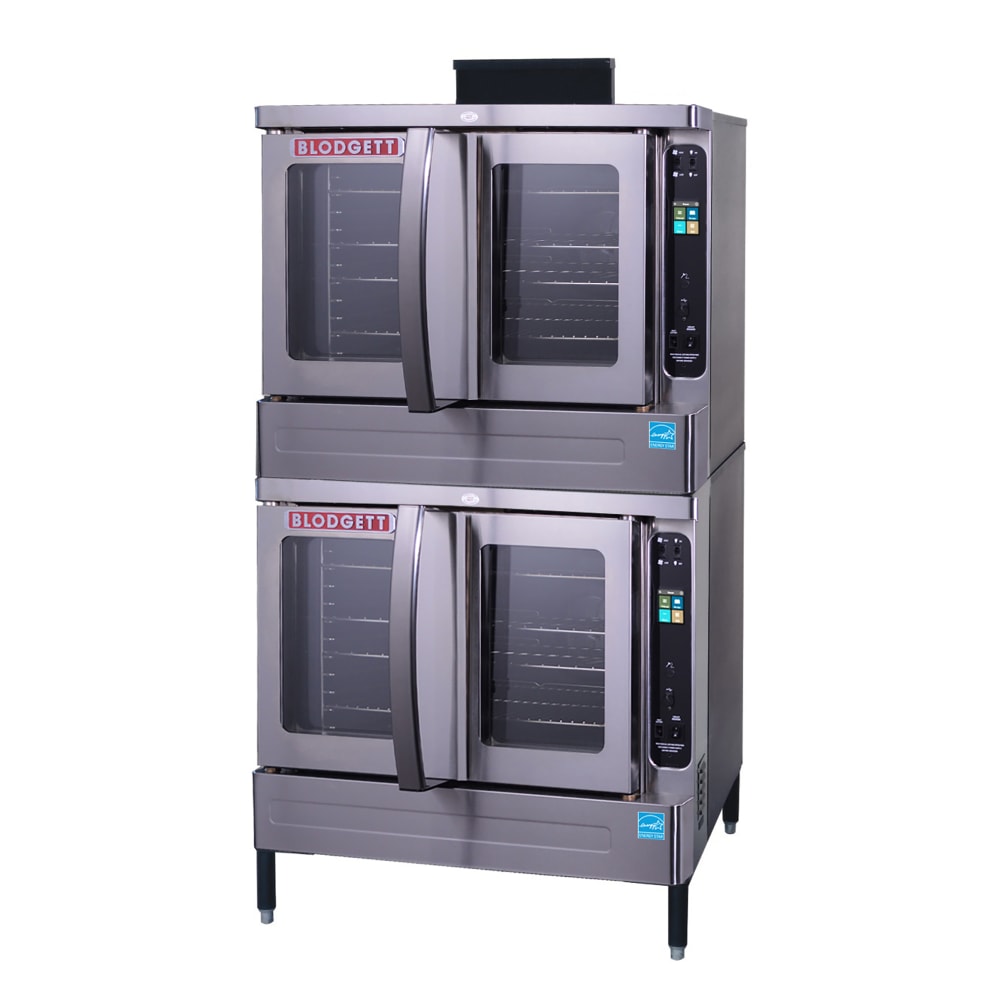

Blodgett MARK V-100 DBL Double Full Size Electric Convection Oven - 22kW, 220-240v/1ph

KaTom #: 015-MARKV100DBL2401 • MPN: MARKV-100DBL 220/240/1
  • 015-MARKV100DBL2401 Primary Thumbnail Image
Free Shipping Item

$32,949.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Voltage: 220-240V, 1 Phase

tony wall User Image
Ask a Foodservice Equipment Specialist

Blodgett MARK V-100 DBL Description

To warm, bake, rethermalize, and roast product quickly in both of the Blodgett MARK V-100 DBL full-size convection oven's baking chambers, tubular heaters generate temperatures between 200 and 500 degrees Fahrenheit. A single-inlet blower wheel disperses the hot air throughout the baking chamber, while solid mineral fiber insulation built into the top, back, sides, and bottom conserves energy and minimizes temperature fluctuations. Operators can adjust temperatures with the solid-state thermostat, and the control panel features an easy-to-read LED display, a cook-and-hold option, and a Pulse Plus® function to ease operation.

This two-compartment Blodgett MARK V-100 DBL convection oven accommodates (10) 18-inch by 26-inch full-size baking pans on its chrome-plated racks that can be adjusted to 11 positions spaced 1 5⁄8 inches apart. Both section's stainless steel doors open dependently to simplify pan loading and retrieval, and they feature dual-pane thermal glass windows that grant a clear view into the lighted chamber. To withstand frequent use, this 38 1⁄4-inch-wide by 40 1⁄2-inch-deep by 70 5⁄8-inch-high unit has a full angle-iron frame and stainless steel sides, front, and top. To prevent wobbling as contents are removed or inserted, it's positioned on 6-inch stainless steel legs that can be adjusted for stabilization on irregular surfaces.

  • Full-size, double-deck configuration
  • 2 standard-depth baking compartments
  • 10 removable, chrome-plated racks per section with 11 positions
  • Capacity per section: (5) 18-in. x 26-in. full-size baking pans
  • Sturdy full angle-iron frame
  • Adjustable 6-in. stainless steel legs
  • Rust-, corrosion-, and wear-resistant stainless steel top, front, and sides
  • Solid mineral fiber insulation integrated into top, back, sides, and bottom
  • 4 dependent doors with 1 powder-coated door handle per pair (2 doors per section)
  • Triple-mounted, pressure-lock doors with turnbuckle assembly
  • Grease-resistant dual-pane thermal glass windows
  • Double-sided porcelain baking compartment liners
  • Aluminized blower wheel
  • Halogen lights illuminate interior
  • Modular slide-out front control panel
  • 3 tubular heaters per section
  • 2-speed fan motors
  • Temperature range: 200-500 degrees F
  • Solid-state thermostat
  • LED display
  • Cook-and-hold function
  • Pulse Plus option
  • Control area cooling fan
  • Vent connector

  • Interiors: (2) 29 in. W x 24 1⁄4 in. D x 20 in. H
  • Overall: 38 1⁄4 in. W x 40 1⁄2 in. D x 70 5⁄8 in. H
  • (2) 11 kW, (2) 1⁄2 HP
  • 240 V/60 Hz/1 ph

*Image may not depict product color, inclusions or accessories.

*Free shipping on Blodgett MARK V-100 DBL within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, Artisan touchscreen controls with meat probe, 2-speed fan, Olephobic baking compartment liner, interior light, simultaneous operated doors with dual pane thermal glass windows sealed in stainless steel door frames and ergonomically friendly curved aluminum door handle, stainless steel front, sides & top, 6" stainless steel legs, 11.0 kw each, 1/3 hp, cETLus, CE, NSF, ENERGY STAR®

Warranty Icon
3-year Parts; 2-year Labor; 5-year Door Parts

Watch a video about this product

Blodgett MARK V-100 DBL Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
