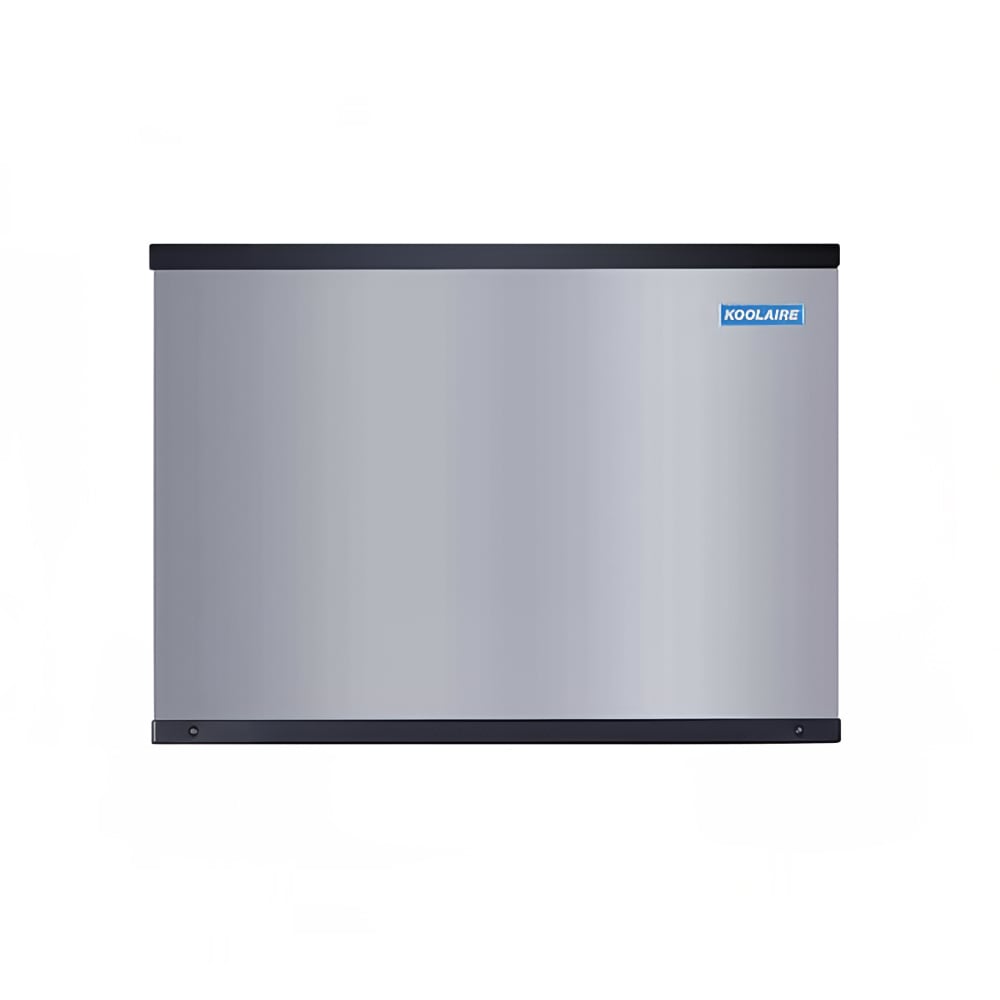

Koolaire KYP1000W 261 30" Ice Kube Half Cube Ice Machine Head - 886 lb/24 hr, Water Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$7,103.00 /Each
Contact us for details!
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Koolaire KYP1000W 261 Description
The Koolaire KYP1000W 261 ice machine can produce 860 pounds of half-cube ice every 24 hours. This type is ideal for many beverages since it cools them quickly, but it also melts faster than full-cube ice. The white plastic in the food zone can be accessed for cleanup once two screws and its door are removed. Additional components are removable for more thorough cleaning. On the exterior of the machine, a coating resists corrosion and smudges.
For ice to be made, the toggle switch on the Koolaire KYP1000W 261 ice maker should be set to "ice," and the water curtain must be closed. Refrigerant lines are cooled with water before they run over the evaporator to cool it. Once chilled, the evaporator freezes water in its individual cells. After a certain amount of time, the flowing water flips an ice thickness floater switch to halt the process. Ice thickness is measured by a harvest probe, and when these readings are ideal, the probe shuts off the water flow. When the refrigerant lines are not chilled, the evaporator eventually warms up enough to release its ice into a bin or dispenser (which must be purchased separately).
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 886-lb. ice production capacity
- Finish on the exterior is heavy duty
- Food zone is accessible after 2 screws and the door are removed
- Easy-to-clean white plastic food zone
- Removable distribution tube, floats, pump, trough, and water shield
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Uses R290 refrigerant
- Ice bin or dispenser sold separately
- Ice deflector is required with an ice bin but not with a dispenser
- 15,400 average BTU; 17,100 maximum BTU
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- Required top and side clearance: 8 in.
- Required rear clearance: 5 in.
- Toggle switch must be set to "ice" while the water curtain is closed
- Purge cycle removes water from the trough
- Water-cooled refrigerant lines
- Refrigerant lines chill the evaporator plate
- Water runs over the evaporator plate and freezes in the cells
- Ice thickness float switch turns off the water flow
- Ice thickness is monitored by the harvest probe so it knows when to shut off cold air
- Evaporator plate is slightly heated to release ice
- 30 in. W x 24 in. D x 29.5 in. H
- 10.1 A, 4.25 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP1000W 261 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W x 24" D x 29.5" H, production capacity up to 886 lb/24 hours at 70°/50° (740 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Koolaire KYP1000W 261 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 886 |
| Also Known As | KYT1000W |
| Compressor Type | Water Cooled |
| Depth (in) | 34 |
| Height (in) | 35.5 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 215.00 |
