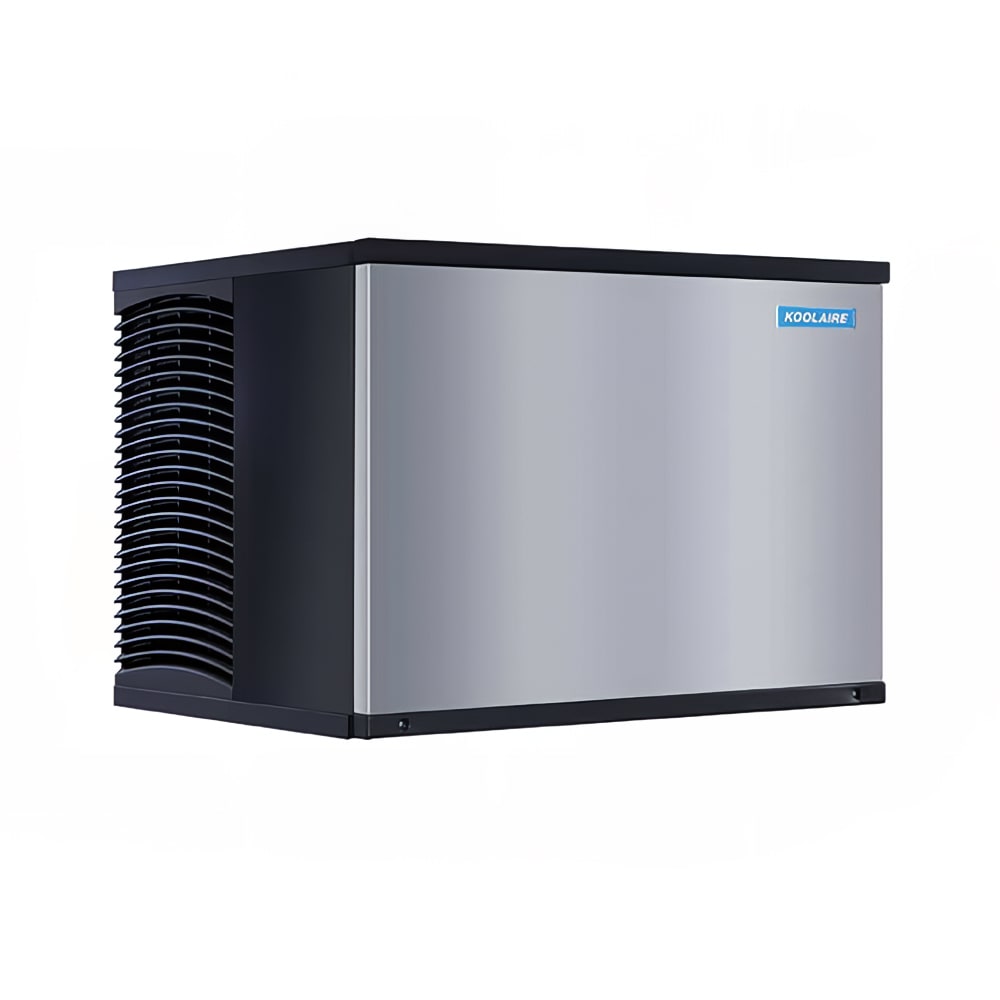

Koolaire KYP0420A 22" Ice Kube Half Cube Ice Machine Head - 450 lb/24 hr, Air Cooled, 115v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$3,803.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Half Cube
Koolaire KYP0420A Description
The Koolaire KYP0420A ice machine head can create 450 pounds of ice when air and water temperatures are ideal. These cubes are half-size and work well in many different applications, such as cold displays, bags, and beverages. They are formed in the evaporator plate when water flows from the distribution tube and over the plate's surface, collecting in frozen crystals. Extra water is diverted by a water shield to prevent damage to internal components. The frozen cubes can then fall from the evaporator plate and into an ice bin, saving ice for when large amounts are needed and reducing stress on the machine. This machine must be attached to a compatible bin for use.
The Koolaire KYP0420A ice maker has an air-cooled condenser, which uses less water than other options but produces more noise. For quick inspection and cleaning, the pump, distribution tube, and water shield can be removed without tools. Areas that get wet regularly are made of white plastic to contrast with debris and buildup and make them more visible to staff. The exterior of the machine has the appearance of stainless steel and is resistant to fingerprints.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 450-lb. daily ice production capacity when the surrounding air is 70 degrees and incoming water is 50 degrees
- 360-lb. daily ice production capacity when the surrounding air is 90 degrees and incoming water is 70 degrees
- Creates half-size cubes
- Half-cube ice size: 0.375 in. x 1.125 in. x 0.875 in.
- Condenser is cooled by air
- R290 refrigerant
- White plastic food zone highlights dirty areas
- Water shield helps catch extra water before it damages the components
- Distribution tube, pump, and water shield are removable without tools
- Exterior has the appearance of stainless steel
- Finish resists fingerprints
- Ice bin sold separately
- Surrounding air temperature: 40-110 degrees F
- Incoming water temperature: 40-90 degrees F
- Water pressure: 20-80 PSI
- 24 in. W x 22 in. L x 21.5 in. H
- 10.3 A, 5.5 kW
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KYP0420A within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, air-cooled, self-contained condenser, 22"W, production capacity up to 450 lb/24 hours at 70°/50° (360 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, half-dice size cubes, NSF, cULus, CE, ENERGY STAR® (replaces KY-0420A)
Koolaire KYP0420A Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 450 |
| Also Known As | KYT0420A |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 27.5 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 145.00 |
