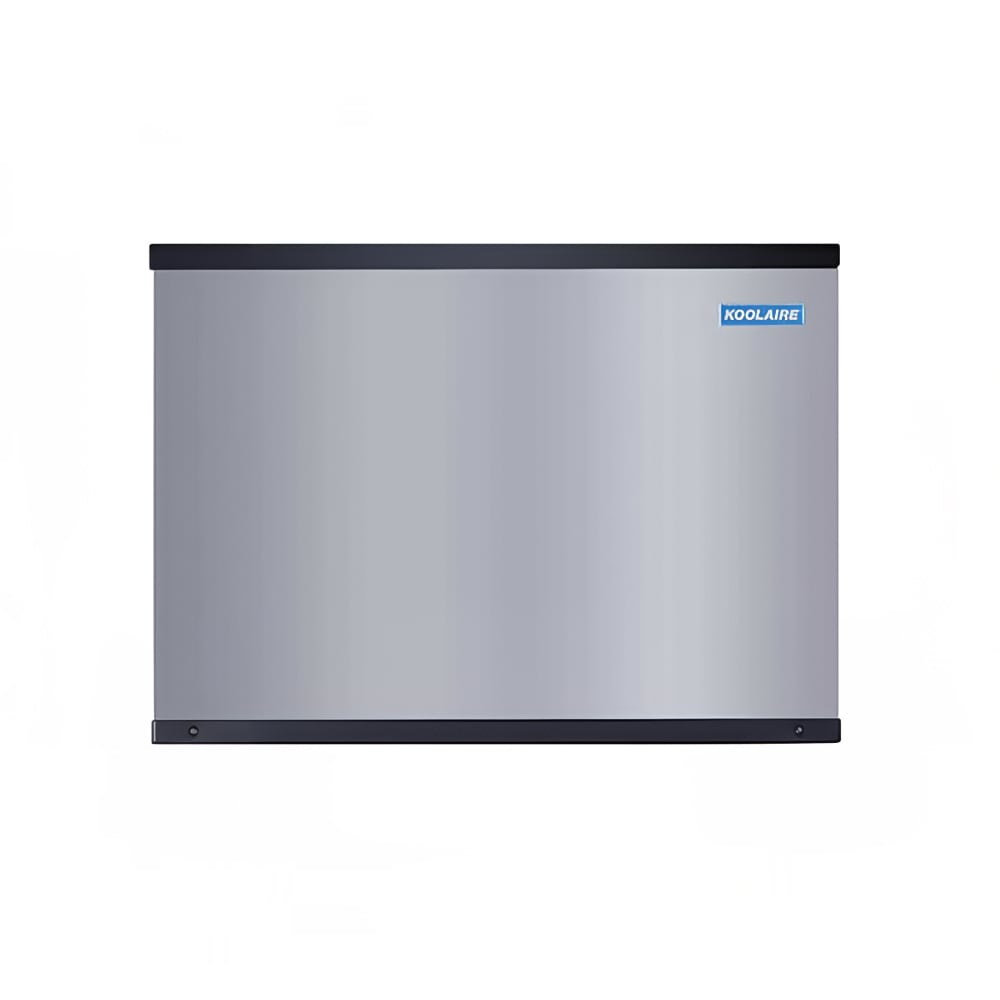

Koolaire KDP1000A 261 30" Ice Kube Full Cube Ice Machine Head - 846 lb/24 hr, Air Cooled, 208-230v/1ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$6,635.00 /Each
Contact us for details!
Selected Compressor Type: Air Cooled
Selected Ice Type: Full Cube
Koolaire KDP1000A 261 Description
The Koolaire KDP1000A 261 full-cube ice machine head has an air-cooled condensing unit that uses less water and energy than a water-cooled unit. Its exterior has a finish that looks like stainless steel and resists fingerprints. The food zone is sealed to reduce bacterial growth, and to speed up cleaning, this unit features white plastic areas that reveal dirt along with a cleaning cycle that can be run with the push of a button. This unit can produce 846 pounds of full-cube ice, depending on surrounding conditions. This type of ice is ideal for alcoholic beverages that are meant to be sipped slowly.
The Koolaire KDP1000A 261 ice machine head has a water shield that deflects excess water from the evaporator plate and prevents it from splashing on the internal components. A distribution tube expels water over the evaporator plates, where it freezes and forms ice. This unit also has a pump, trough, and floats that can be removed for cleaning without tools.
Note: This unit must be paired with an ice maker bin or ice dispenser.
- 846-lb. daily ice production if ambient air is 70 degrees F and incoming water is 50 degrees F
- Air-cooled condensing unit
- Food zone is sealed to prevent bacterial growth
- Exterior has a stainless steel-like finish that resists fingerprints
- Food zone features white plastic to help identify dirty areas
- Cleaning cycle runs with the push of a button
- Water shield blocks excess water from splashing
- Distribution tube sprays water over the evaporator plates
- Pump, floats, and trough can be removed for cleaning
- Full cube size: 0.875 in. x 0.875 in. x 0.875 in.
- Uses R290 refrigerant
- Bin sold separately
- Required ambient air temperature: 40-110 degrees F
- Required incoming water temperature: 40-90 degrees F
- Required incoming water pressure: 20-80 PSI
- 30 in. W x 24 in. D x 29.5 in. H
- 10.8 A, 5.35 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Koolaire KDP1000A 261 within the 48 contiguous states.
From The Manufacturer
Ice Kube Machine, cube style, water-cooled, self-contained condenser, 30" W x 24" D x 29.5" H, production capacity up to 846 lb/24 hours at 70°/50° (630 lb AHRI certified at 90°/70°), one-touch cleaning, water shield, smudge & fingerprint resistant, Alpha San anti-microbial protection, stainless like finish, dice size cubes, R290 refrigerant, NSF, cULus, CE, ENERGY STAR®
Koolaire KDP1000A 261 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Koolaire |
| 24 Hr. Production (lb) | 846 |
| Also Known As | KDT1000A |
| Compressor Type | Air Cooled |
| Depth (in) | 34 |
| Height (in) | 35.5 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Ice Kube |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
| Water Inlet (in) | 0.38 |
| Width (in) | 30 |
| Weight | 241.00 |
Important Prop 65 information for California residents.
- Koolaire KD1000A261
Compare to Similar Items
| Attributes |
Koolaire KDP1000A 261 Koolaire KDP1000A 261 30" Ice Kube Full Cube Ice Machine Head - 846 lb/24 hr, Air Cooled, 208-230v/1ph Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $6,635.00 / Each | $6,635.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | QUICK SHIP: Typically ships in 1 - 3 Business Days | QUICK SHIP: Typically ships in 1 - 3 Business Days |
| 24 Hr. Production (lb) | 846 | 880 |
| Ice Type | Full Cube | Half Cube |
| Compressor Type | Air Cooled | Air Cooled |
| Width (in) | 30 | 30 |
| Rating | Better | Better |
| Voltage | 208/230 | 208/230 |
| Series | Ice Kube | Ice Kube |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Parts & 1-year Labor Compressor |
