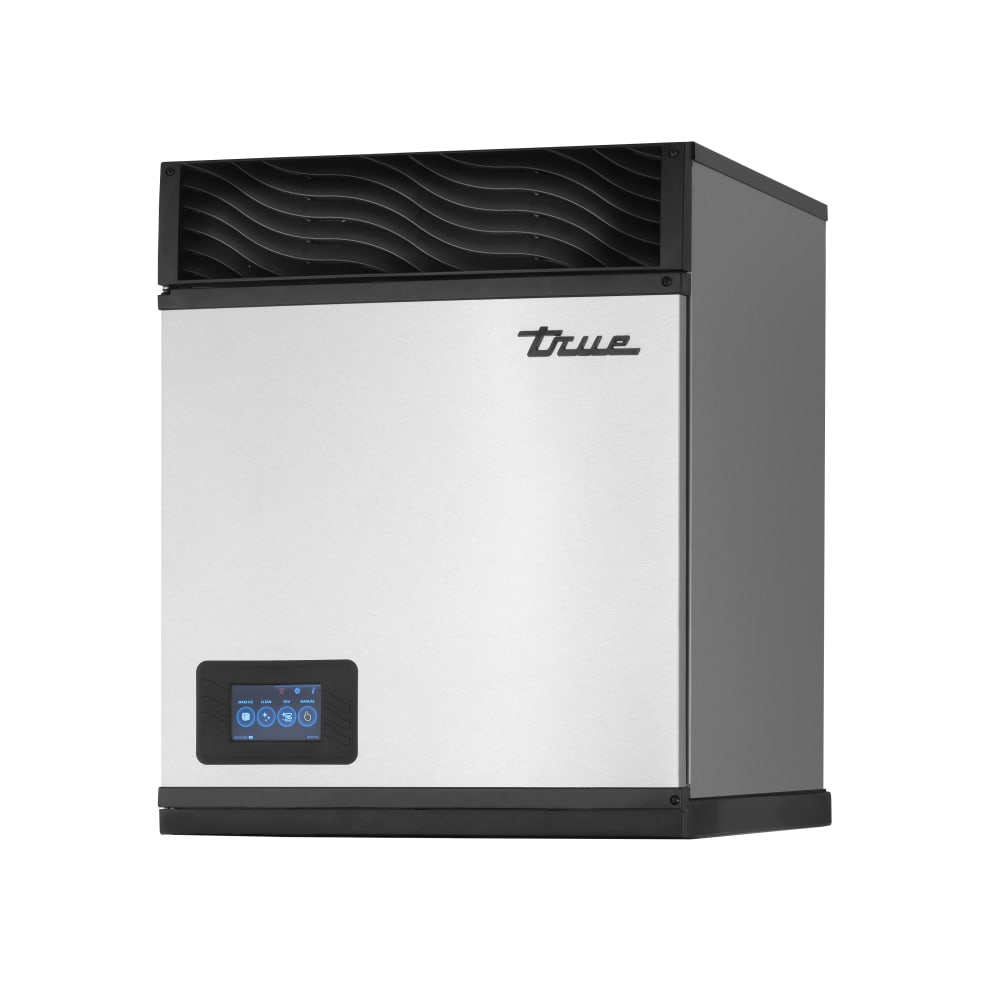

True TCIM-622-FA1-A~T-3 25" Full Cube Ice Machine Head - 640 lb/24 hr, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$4,975.00 /Each
Selected Ice Type: Full Cube
True Refrigeration TCIM-622-FA1-A~T-3 Description
The True TCIM-622-FA1-A~T-3 full-cube ice machine head produces 640 pounds of cube-style ice every day, and these ice cubes measure 7⁄8 inches by 7⁄8 inches by 7⁄8 inches for use in soft and mixed drinks. While the unit uses R290 refrigerant for cooling, the fan quietly operates, promoting uniform airflow throughout the unit. The included air filter is removable for cleaning, and it uses RCU technology to stop unwanted particles from entering the ice chamber.
Constructed of aluminum, the True TCIM-622-FA1-A~T-3 ice machine head’s exterior features a front-mounted display with touchscreen controls for simplified management of temperature and production settings. To identify problems early on and prevent breakdowns, this unit is equipped with advanced diagnostics and built-in alarms. The Time-of-Flight™ sensor detects ice build-up and eliminates the need for a bin thermostat. It’s important to note that a storage bin must be purchased separately.
- Part of the True Ice series
- TrueTech aluminum exterior and plastic interior
- Produces 640 lbs. of ice daily
- Cube-style ice
- TrueZone protection and storage bin are sold separately
- R290 refrigerant
- Air-cooled, micro-channel condenser
- High/low pressure transducers
- Fully-insulated evaporator with copper plate
- Quiet fan operation
- Air filter with RCU technology
- Ambient temperature range: 35-110 degrees F
- Water temperature range: 35-100 degrees F
- 8,500-BTU heat transfer capacity
- 4 3⁄10-in. front display
- Touch controls
- Programmable ice production
- Advanced diagnostics
- Built-in alarms
- Push notifications
- Time-of-Flight ice sensor
- Remote monitoring and shut off
- 24 3⁄5 in. W x 22 1⁄4 in. D x 27 3⁄16 in. H
- 15 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration TCIM-622-FA1-A~T-3 within the 48 contiguous states.
From The Manufacturer
True Ice Series Ice Maker, head only (bin sold separately), cube style (full), self-contained, air-cooled condenser, 24.6"W x 22.25"D x 27.19"H, up to 640 lb. production/24 hr, advanced electronic control with 4.3" touch display, Truetech aluminum exterior finish, R290 Hydrocarbon Refrigerant, TrueZone™ protection sold separately, UL EPH Classified, cULus
True Refrigeration TCIM-622-FA1-A~T-3 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| 24 Hr. Production (lb) | 640 |
| Compressor Type | Air Cooled |
| Depth (in) | 22.25 |
| Height (in) | 27.19 |
| Hertz | 60 |
| Ice Type | Full Cube |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | True Ice Series |
| Special Features | One-touch Cleaning |
| Special Features | Removable Air Filter |
| Special Features | TrueGuard Antimicrobial |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Parts & Labor Evaporator; 5-year Compressor |
| Water Inlet (in) | 0.5 |
| Width (in) | 24.6 |
| Weight | 200.00 |
