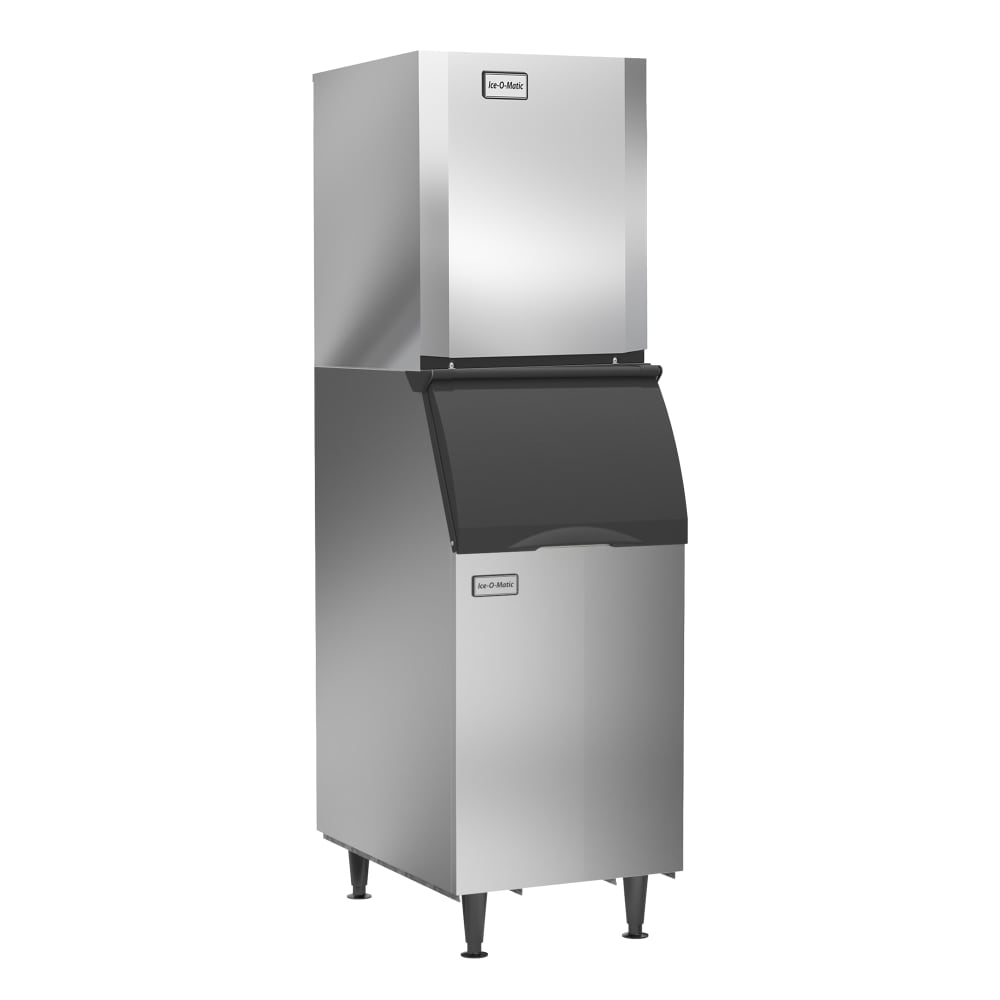

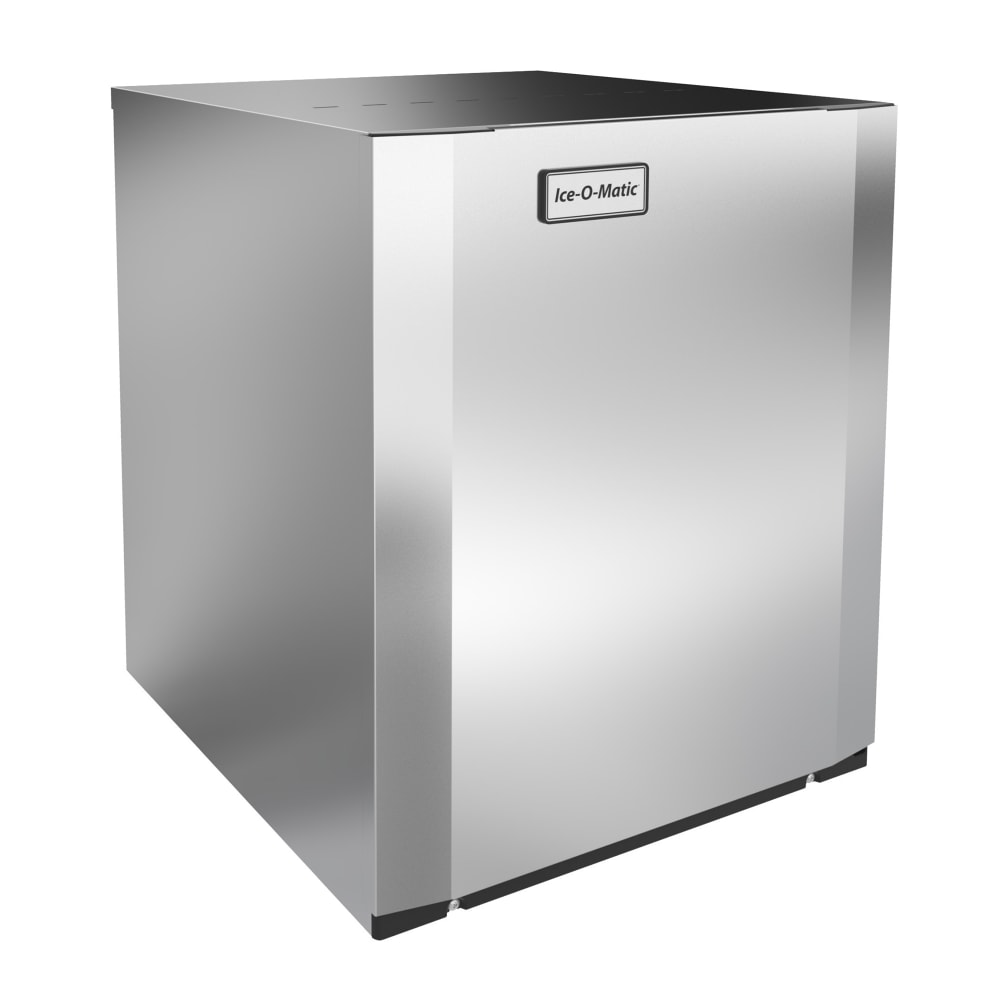

Ice-O-Matic CIM0330HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 320 lb/24 hr, Water Cooled, 115v/1ph
Typically ships in 2 - 3 weeks
$3,824.00 /Each
Selected Compressor Type: Water Cooled
Selected Ice Type: Half Cube
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Ice-O-Matic CIM0330HW90 Description
The Ice-O-Matic CIM0330HW90 ice machine head produces half-size cubes at a maximum rate of 320 pounds per day. Its built-in antimicrobial PURE ICE® inhibits bacterial growth, and it descales and sanitizes at the push of a button. This water-cooled unit features a self-contained condenser to streamline installation.
The Ice-O-Matic CIM0330HW90 ice maker discharges air from the top as well as the side to offer installation flexibility. Its plastic food zone eliminates crevices that could harbor bacteria, and its components can be removed and cleaned in the dishwasher. Operators can monitor the unit’s status on a clear LED display.
- Part of the Elevation Series™
- 320-lb. maximum daily ice production
- Makes half-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- Water cooled
- Self-contained condenser
- Dual exhaust discharges air from top and side for installation flexibility
- 1-touch controls simplify sanitizing and descaling
- LED status display
- Snap-out components are dishwasher safe
- PURE ICE agent inhibits microbial growth
- Uses R290 refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 30 1⁄4 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- 10.7 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0330HW90 within the 48 contiguous states.
From The Manufacturer
Elevation Series™ Modular Cube Ice Maker, half-size cubes, 30"W, approximately 320 lb production/24 hours at 70°/50° (270 lb at 90°/70°), LED status display, one touch sanitize & descaling controls, dishwasher safe food zone components, self-contained water-cooled condenser, R290 refrigerant, cULus
Ice-O-Matic CIM0330HW90 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 320 |
| Also Known As | CIM0330HW |
| Compressor Type | Water Cooled |
| Depth (in) | 24.25 |
| Height (in) | 21.25 |
| Ice Type | Half Cube |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 30.25 |
| Weight | 145.00 |
- Ice-O-Matic ICE0250HW
Compare to Similar Items
| Attributes |
Ice-O-Matic CIM0330HW90 Ice-O-Matic CIM0330HW90 30 1/4" Elevation Series™ Half Cube Ice Machine Head - 320 lb/24 hr, Water Cooled, 115v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $3,824.00 / Each | $4,063.00 / Each | $3,649.00 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | Typically ships in 2 - 3 weeks | Typically ships in 4 - 8 Business Days |
| 24 Hr. Production (lb) | 320 | 310 | 372 |
| Ice Type | Half Cube | Half Cube | Half Cube |
| Compressor Type | Water Cooled | Water Cooled | Water Cooled |
| Width (in) | 30.25 | 30 | 30 |
| Rating | Better | Best | Best |
| Voltage | 115 | 115 | 115 |
| Series | Elevation Series™ | Indigo NXT™ | Prodigy ELITE® |
| Refrigerant | R290 (Hydrocarbon) | R290 (Hydrocarbon) | R290 (Hydrocarbon) |
| Warranty | 3-year Parts & Labor; 5-year Evaporator & Compressor Parts | 3-year Parts & Labor; 5-year Evaporator Parts & Labor ; 5-year Compressor Parts; 3-year Compressor Labor | Commercial: 3-year Limited Parts & Labor; 5-year Limited Parts & Labor Evaporator; 5-year Limited Compressor & Condenser Parts; Residential: 1-year Parts & Labor |
