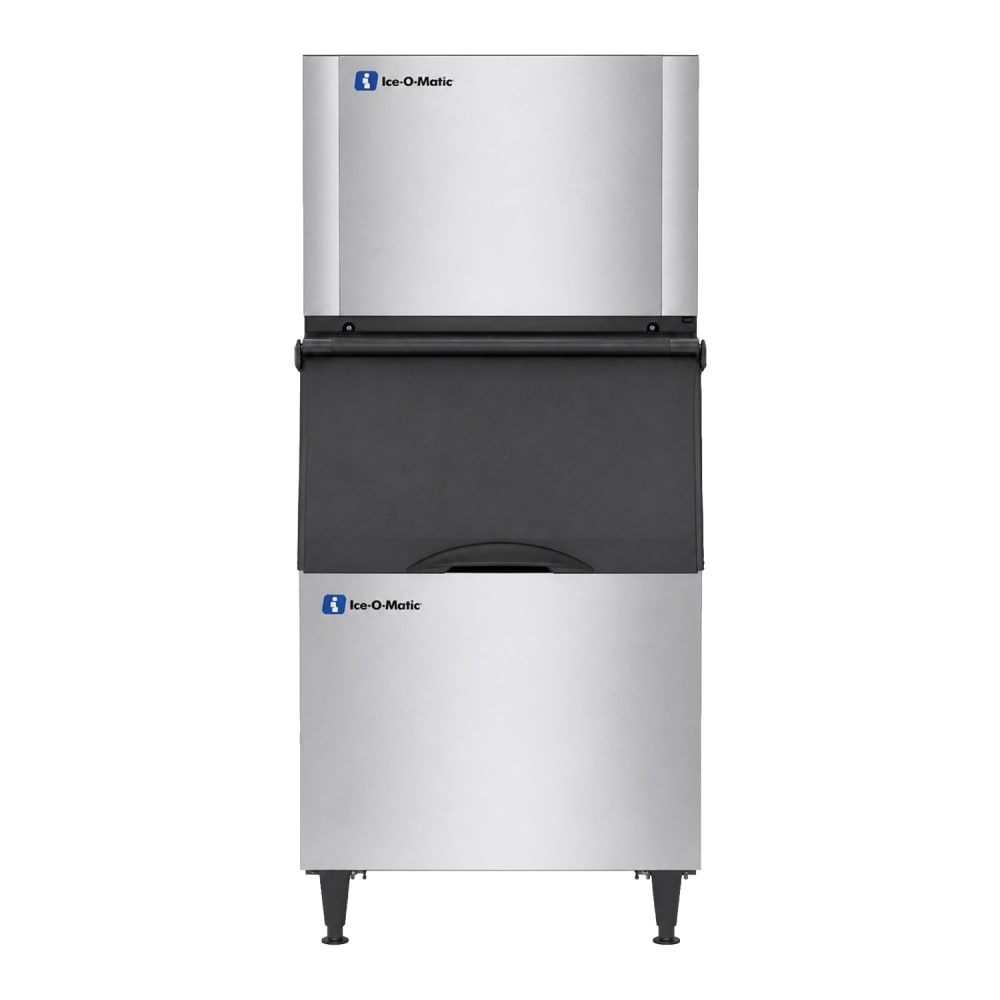

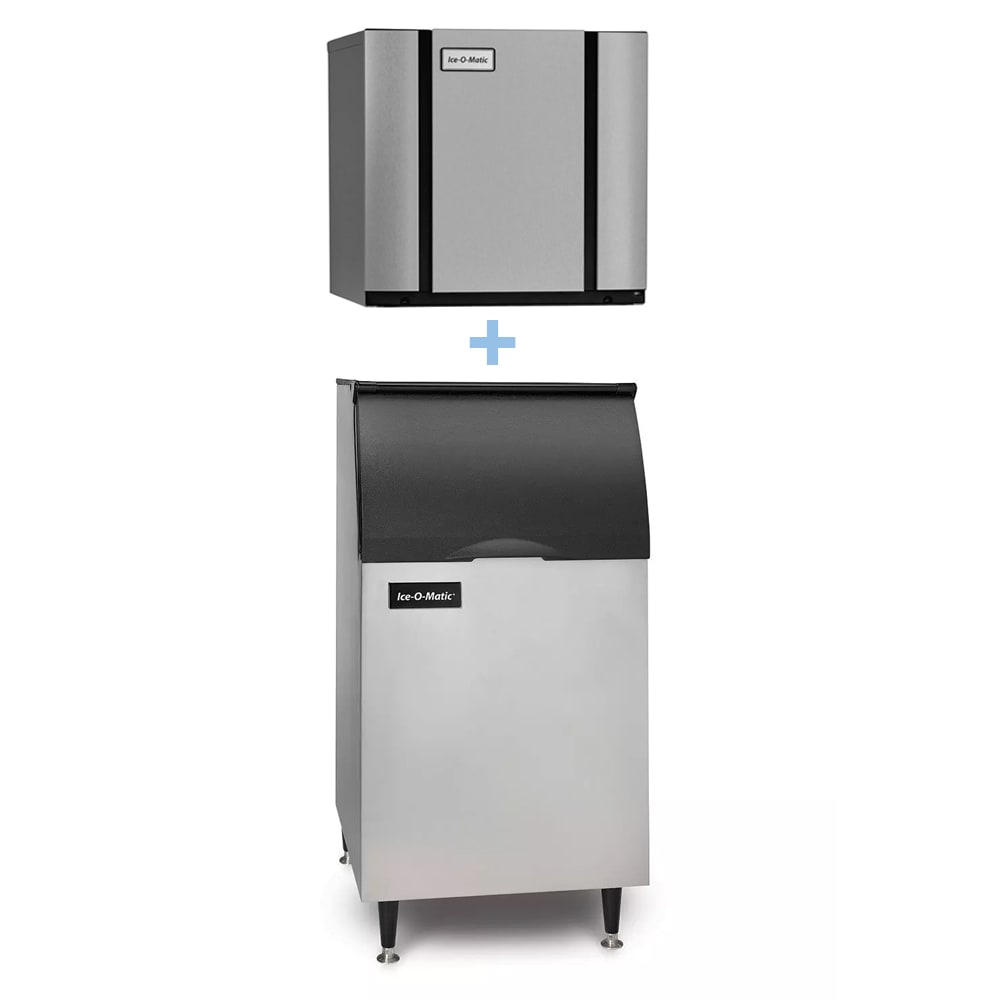

Ice-O-Matic CIM0320FA90/B42 313 lb Elevation Series™ Full Cube Ice Machine w/ Bin - 351 lb Storage, Air Cooled, 115v
QUICK SHIP: Typically ships in 1 - 3 Business Days
$5,160.00 /Each
Selected Ice Type: Full Cube
Ice-O-Matic CIM0320FA90/B42 Description
When the ambient temperature is low enough, the Ice-O-Matic CIM0320FA90/B42 ice maker with bin makes 313 pounds of ice daily, but when conditions are less than ideal, it makes closer to 244 pounds per day. It uses a self-contained, air-cooled condenser to produce full-size cubes of ice, and the bin has storage space for 351 pounds for later use. To clean the unit and remove limescale, operators must simply push a button, and to inhibit microbe growth, the head is protected with PURE ICE® antimicrobial.
To ensure proper operation, the Ice-O-Matic CIM0320FA90/B42 full-cube ice machine with bin provides system statuses on an LED display. The food zone components inside the head can be removed and placed in the dishwasher for cleaning. Providing durability, the exterior of the bin is made of aluminum, while the interior has a polyethylene liner that provides corrosion resistance. To slow the melting of ice, the bin has foam insulation.
- Part of the Elevation Series™
- 313-lb. maximum daily ice production
- 244-lb. daily ice production at 70-90 degrees F
- Makes full-size cubes
- Cube size: 7⁄8 in. x 7⁄8 in. x 7⁄8 in.
- LED display updates system status
- Sanitizing and descaling performed with 1 touch
- Food zone components are dishwasher safe
- PURE ICE antimicrobial protection inhibits bacteria growth
- Air cooled
- R290 hydrocarbon refrigerant
- Self-contained condenser
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 351-lb. application capacity
- Sloped, top-hinged door for ice access
- Lined with corrosion-resistant polyethylene
- Ice preserved with foam insulation
- Resilient aluminum exterior
- Sturdy 6-in. legs
- Ice maker: 22 1⁄2 in. W x 24 1⁄4 in. D x 21 1⁄4 in. H
- Ice bin: 22 in. W x 31 in. D x 50 in. H
- 11 A
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Ice-O-Matic CIM0320FA90/B42 within the 48 contiguous states.
From The Manufacturer

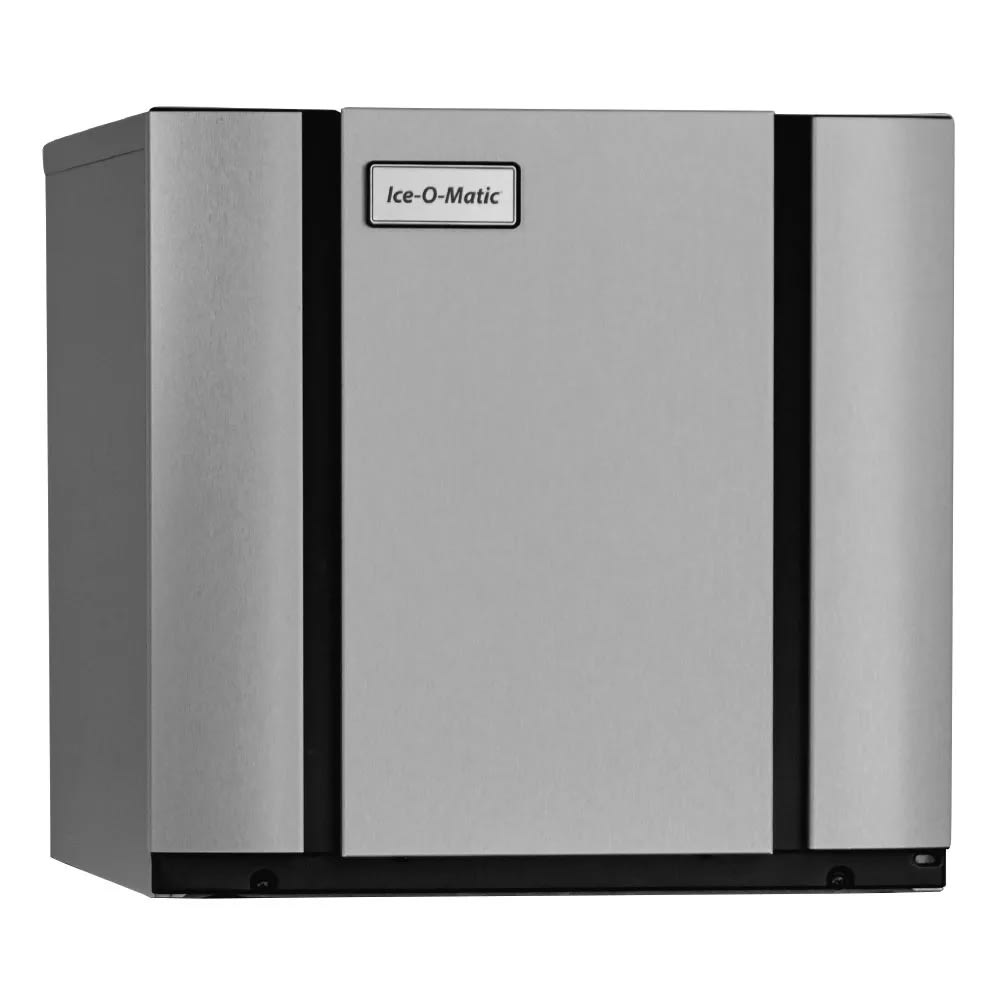

Elevation Series™ Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 22" W, approximately 313 lb production/24 hours at 70°/50° (244 lb at 90°/70°), full-size cubes, PURE ICE® built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, R290 refrigerant, cULus, NSF, CE, BPA Free

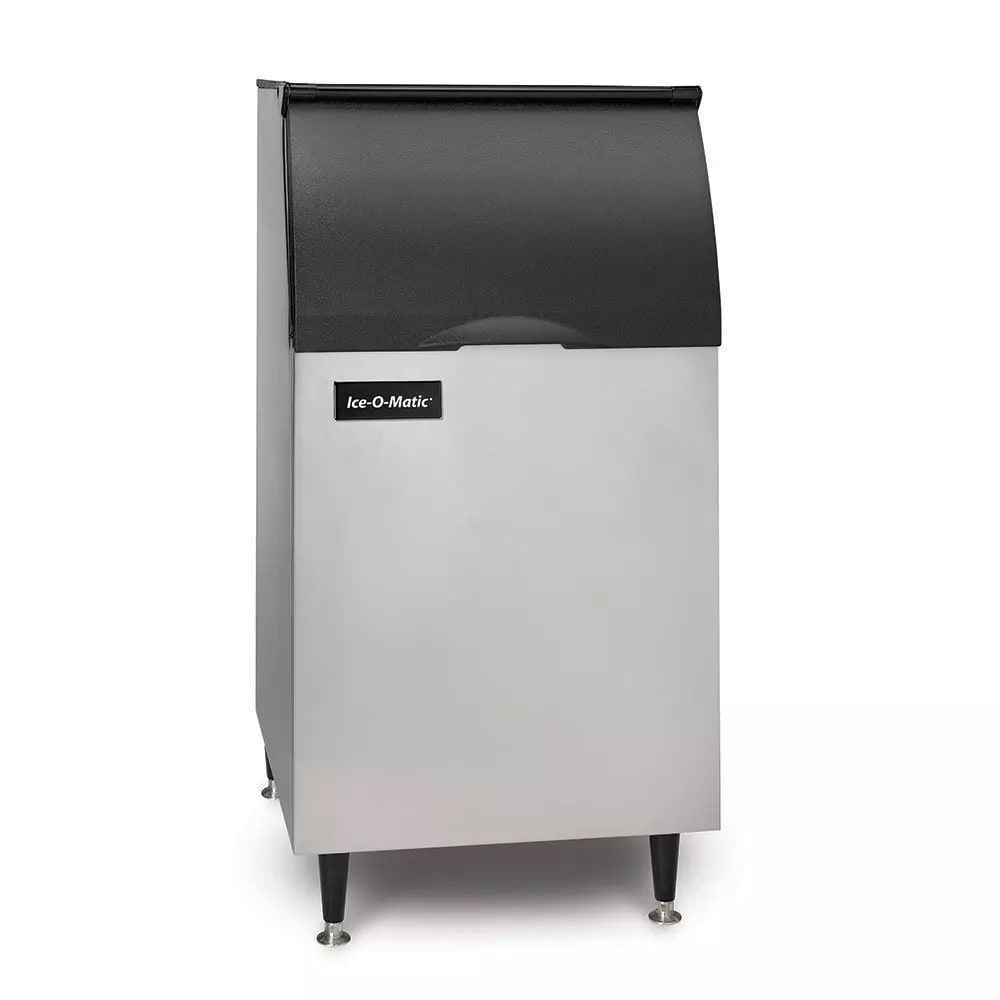

Ice Bin, 351 lb storage capacity, 22"W, 31"D x 50"H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable aluminum exterior, 6" legs, NSF
Ice-O-Matic CIM0320FA90/B42 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Ice-O-Matic |
| 24 Hr. Production (lb) | 313 |
| Access | Lift Up Door |
| Also Known As | CIM0320FA/B42PS |
| Bin Capacity (lb) | 351 |
| Compressor Type | Air Cooled |
| Depth (in) | 31 |
| Height (in) | 71.25 |
| Hertz | 60 |
| Ice Type | Full Cube |
| Phase | 1 |
| Product | Ice Machines with Bins |
| Product Type | Ice Makers & Bins |
| Rating | Better |
| Refrigerant | R290 (Hydrocarbon) |
| Series | Elevation Series™ |
| Suggested Use | Commercial |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 2-year Parts & Labor Storage Bin; 5-year Evaporator & Compressor Parts |
| Water Inlet (in) | 0.38 |
| Width (in) | 22.25 |
| Weight | 249.00 |
