Scotsman NH1322A-32 22" Prodigy Plus® Nugget Ice Machine Head - 1186 lb/24 hr, Air Cooled, 208-230v/1ph
Retail Price: $25,269.00
$10,360.00 /Each
Selected Compressor Type: Air Cooled
Selected Ice Type: Hard Nugget
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Scotsman NH1322A-32 Description
To minimize the environmental impact of the Scotsman NH1322A-32 nugget ice machine head, it uses R-404A refrigerant. The head is air cooled and can produce as much as 1,186 pounds of H2 nugget ice per day in ideal conditions. Its exterior, evaporator, and auger are all constructed of durable stainless steel, and because it's part of the Prodigy Plus® series, it has sealed, maintenance-free bearings. AutoAlert™ indicator lights brightly indicate its operating status as well as when it's time to sanitize or descale, and the unit-specific QR code included in the panel provides immediate access to manuals and warranty information.
To help prevent the growth of mold between cleanings, the Scotsman NH1322A-32 nugget ice machine head is equipped with AgION™ antimicrobial protection guards, and the sealed refrigeration system prohibits access to airborne contaminants. The front panel of the machine head is self-aligning to simplify access to the head's internal components, and the air filter is on the front of the unit to streamline its replacement.
- Part of the Prodigy Plus series
- Air-cooled unit
- 1,186-lb. maximum daily ice production
- 944-lb. AHRI-certified daily ice production
- Makes nugget ice

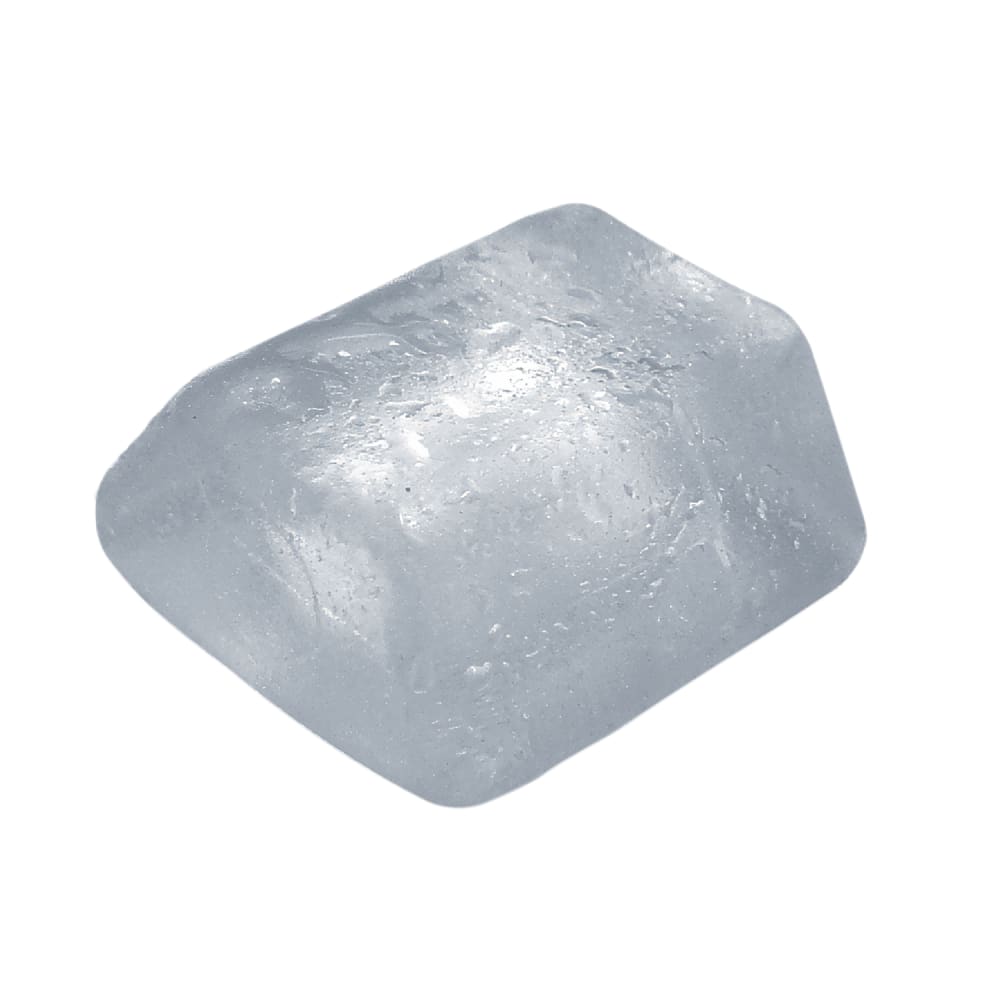

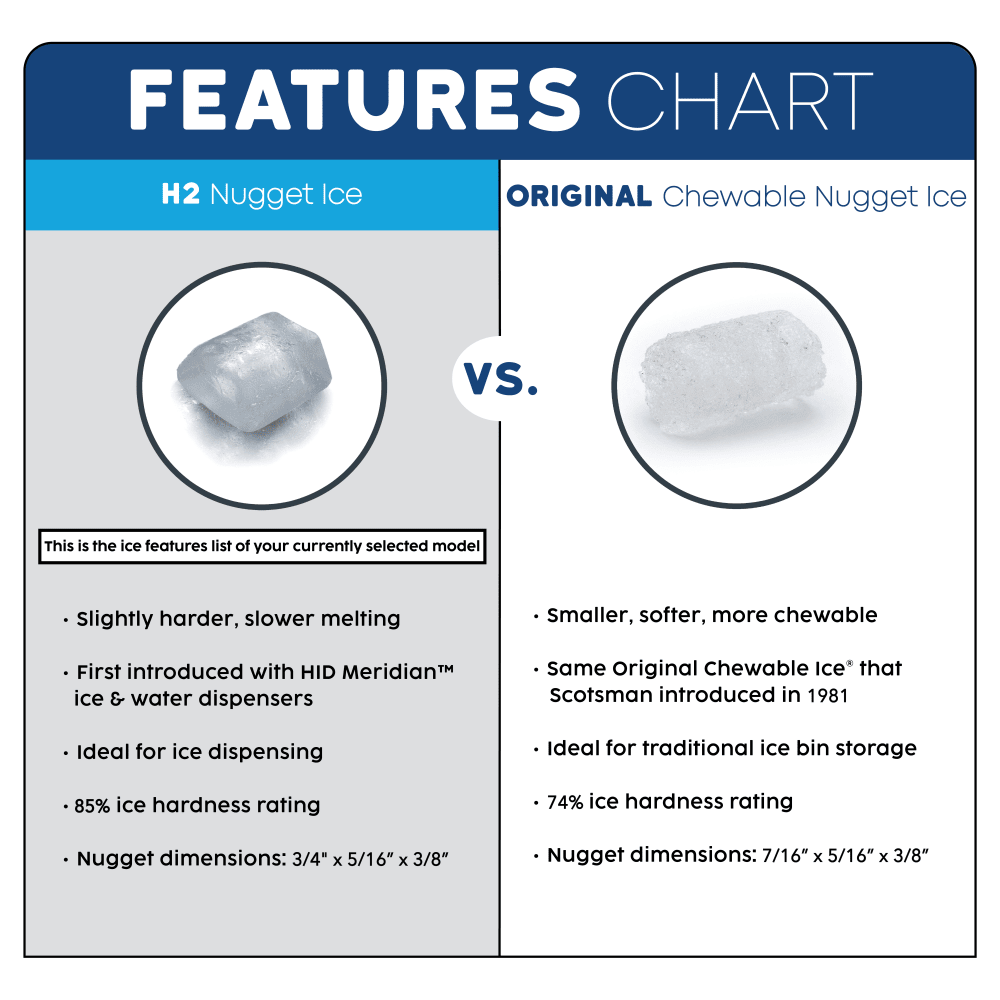

- Nugget ice size: 3⁄4 in. x 5⁄16 in. x 3⁄8 in.
- Stainless steel exterior, auger, and evaporator
- AutoAlert indicator lights for operation display
- Model-specific QR code
- Front-facing air filter for improved access through a self-aligning front panel
- Smart-Board™ expands diagnostic capabilities
- Antimicrobial guards slow mold growth between cleanings
- Sealed refrigeration system
- R-404A refrigerant minimizes environmental impact
- Ice bin sold separately
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 16,000-BTU heat transfer capacity
- 22 7⁄10 in. W x 24 91⁄100 in. D x 27 in. H
- 17.8 A, 4.35 kW
- 208-230 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman NH1322A-32 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 1186 lb/24 hours at 70°/50° (944 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert™ indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION™ antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 17.8 amps, NSF, cULus, engineered and assembled in USA
Watch a video about this product
Scotsman NH1322A-32 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 1186 |
| Compressor Type | Air Cooled |
| Depth (in) | 24 |
| Height (in) | 27 |
| Ice Type | Nugget |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Rating | Best |
| Refrigerant | R404A |
| Series | Prodigy Plus® |
| Special Features | H2 Harder Nugget Ice |
| Special Features | Sealed, Maintenance-Free Bearings |
| Suggested Use | Commercial |
| Voltage | 208/230 |
| Warranty | Commercial: 3-year Parts & Labor; 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Water Inlet (in) | 0.38 |
| Width (in) | 22 |
| Weight | 225.00 |
