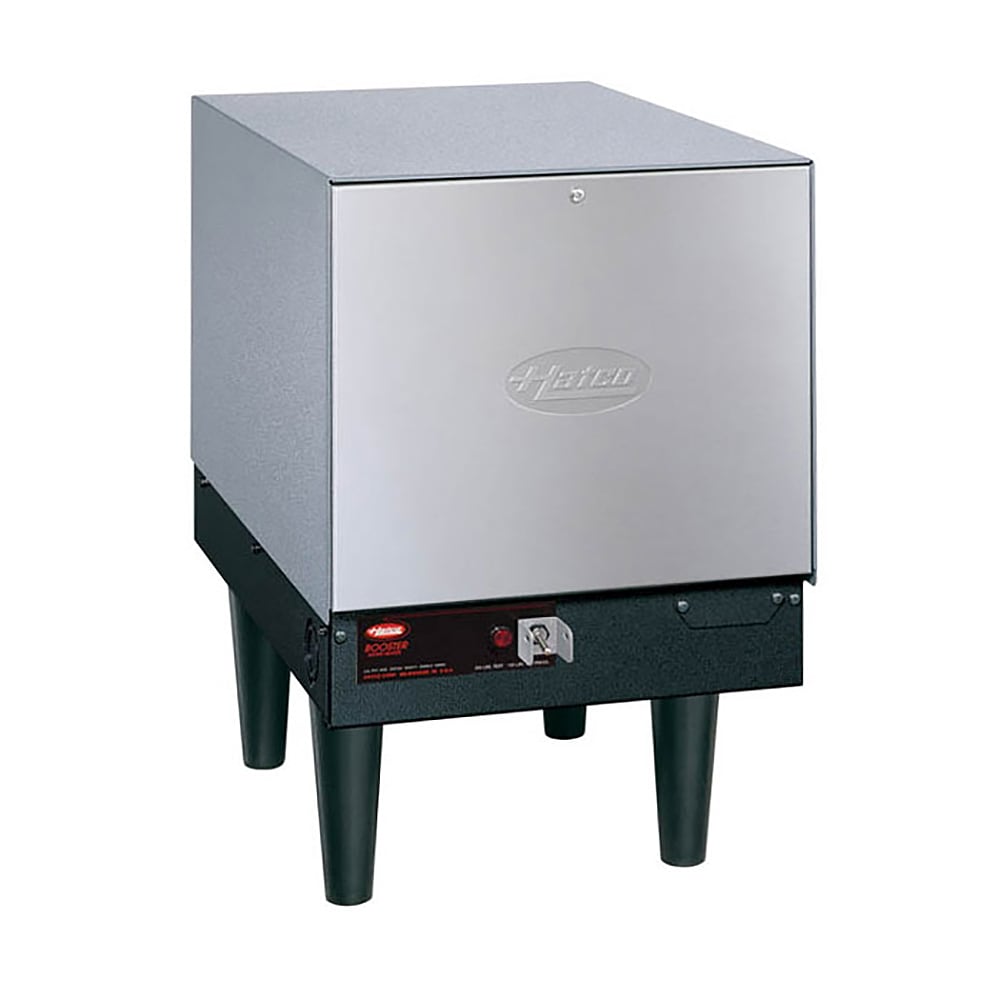

Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW, 480v/1ph
Retail Price: $4,571.00
$2,514.05 /Each
Selected Voltage: 480V, 1 Phase
| 480V, 1 Phase |
| 208V, 3 Phase |
| 240V, 3 Phase |
| 480V, 3 Phase |
Hatco C-5 Description
Featuring a low-water cut-off and a high-temperature limit control, the Hatco C-5 compact booster water heater operates safely and prevents element burnout. This powder-coated hammertone unit includes a limestone-resistant, Castone®-lined tank and a stainless steel front panel that swings open for access to probes. To prevent heat loss, the booster tank is completely insulated with fiberglass, and for efficient sanitation, it is designed to boost water to 180 degrees Fahrenheit.
The Hatco C-5 compact booster water heater can be monitored with two temperature gauges and a calibrated immersion thermostat. For simplicity, its pressure relief valve and pressure reducing valve operate automatically, ensuring safe levels. The pilot indicator light alerts users when this unit is not operating at its full potential. Equipped with 6-inch plastic legs, this booster can operate as a standalone model, but slide mounting brackets are also available.
- Raises water temperature to 180 degrees F for proper sanitization
- Maximum 50 GPH at 40-degree-F rise
- Maximum 29 GPH at 70-degree-F rise
- 6-gal. capacity
- Front swinging panel offers access to probes and elements for servicing
- Calibrated immersion thermostat
- Pre-wired and pre-plumbed at factory
- Durable stainless steel front
- Silver powder-coated hammertone construction is insulated with fiberglass
- Temperature relief valve
- Pilot indicator light
- On/off switch
- Pressure reducing valve
- 2 temperature gauges
- Low-water cut-off protects elements
- High-temperature limit control
- 6-in. legs
- 3⁄4-in. NPT pipe
- Fittings for water inlet and outlet
- Slide mounting brackets available (not included)
- 13 1⁄16 in. W x 26 in. D x 19 39⁄50 in. H
- 10.5 A, 5 kW
- 480 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-5 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 5-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, NSF, cUL, UL, 480v/60/1ph
Hatco C-5 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 50 |
| 70F Recovery (gph) | 29 |
| Amps | 10.5 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 5 |
| Phase | 1 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 480 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 0 - 10 |
| Width (in) | 13 |
| Weight | 105.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-5 Hatco C-5 Compact Booster Water Heater, 6 Gallon, 5 kW, 480v/1ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $2,514.05 / Each | $2,514.05 / Each | $2,514.05 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 50 | 50 | 50 |
| 70F Recovery (gph) | 29 | 29 | 29 |
| Capacity (gallons) | 6 | 6 | 6 |
| Width (in) | 13 | 13 | 13 |
| Watts | 0 - 10 | 0 - 10 | 0 - 10 |
| Heat | Electric | Electric | Electric |
| Voltage | 480 | 208 | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
