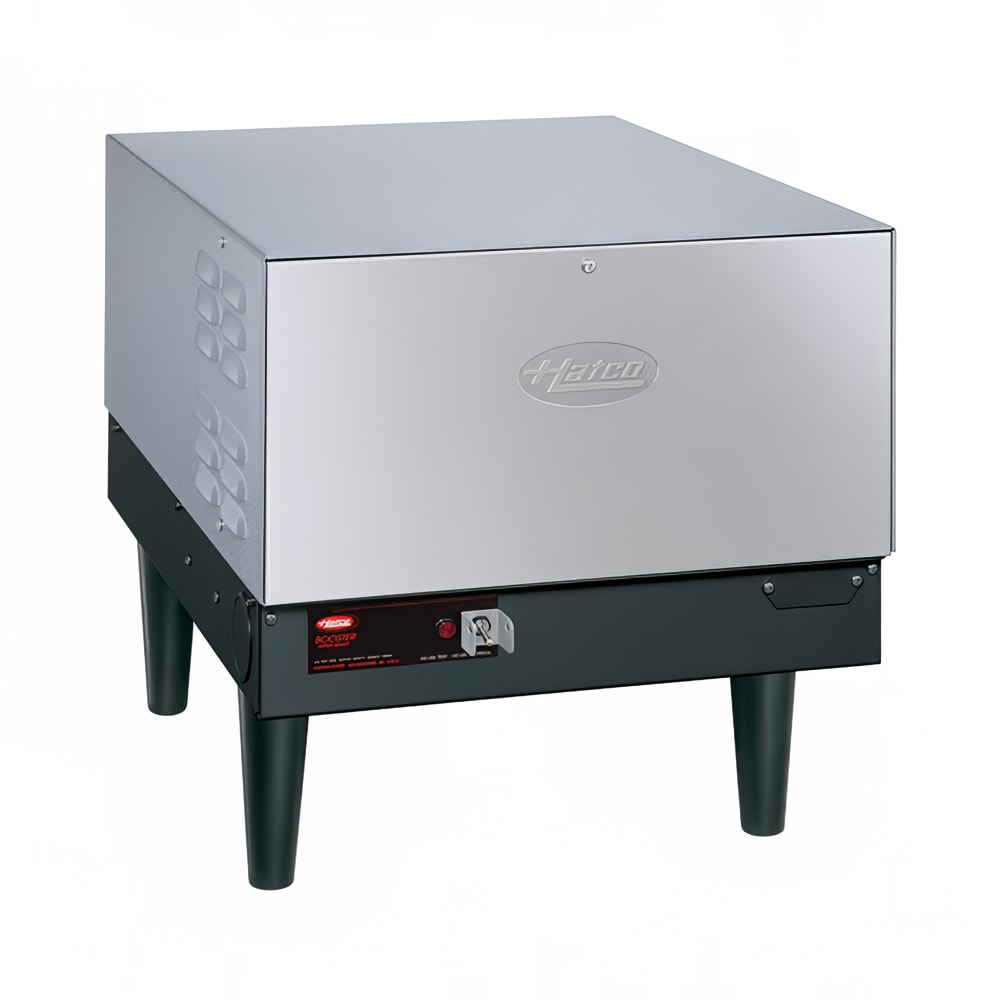

Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 240v/3ph
Retail Price: $8,656.00
$4,760.80 /Each
Selected Voltage: 240V, 3 Phase
| 240V, 3 Phase |
| 208V, 3 Phase |
| 480V, 1 Phase |
| 480V, 3 Phase |
Hatco C-54 Description
The Hatco C-54 compact booster heater brings rinse water to 180 degrees Fahrenheit by heating the incoming water 40 or 70 degrees Fahrenheit. A high-limit switch and low-water cut-off feature prevent the unit from overheating while a pilot indicator light informs operators when the unit is on or off. Unsafe pressure buildup is monitored by a pressure-relief valve.
A stainless steel front panel and silver-gray hammertone body are used to construct the Hatco C-54 booster heater body. Its 6-gallon tank is lined with Castone® on the interior to resist corrosion and scale buildup from hard water. This tank is insulated with fiberglass to prevent heat from escaping, and the front panel removes for access to interior components.
- Heats water to 180 degrees for proper dish sanitization
- Maximum 542 GPH at 40-degree-F rise
- Maximum 310 GPH at 70-degree-F rise
- Pressure-relief valve monitors unsafe pressure buildup
- High-limit safety switch prevents overheating
- Low-water cut-off feature prevents damage and overheating if tank water runs low
- Pressure and temperature gauges enable users to watch internal conditions
- Pilot indicator light shows whether the unit is on or off
- Pressure-reducing valve provides correct incoming water pressure
- Fiberglass insulation traps heat
- Plumbing and wiring are factory installed
- Front panel swings away to provide maintenance access to electric components
- Tank is lined with Castone—a material similar to concrete—to protect against corrosion and limescale buildup
- Stainless steel front panel resists corrosion and simplifies cleaning
- Textured, powder-coated hammertone body offers durability
- 18 in. W x 29 1⁄4 in. D x 18 3⁄100 in. H
- 54 kW, 130 A
- 240 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco C-54 within the 48 contiguous states.
From The Manufacturer
Compact Booster Heater, electric, 6-gallon storage capacity, electric operation, 54-KW, stainless steel front panel, powder-coated silver-gray hammertone body, 6" plastic non-adjustable legs, Castone tank, 240v/60/3-ph, NSF, cUL, UL
Hatco C-54 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| 40F Recovery (gph) | 542 |
| 70F Recovery (gph) | 310 |
| Amps | 130 |
| Capacity (gallons) | 6 |
| Heat | Electric |
| Hertz | 60 |
| kW | 54 |
| Phase | 3 |
| Product | Booster Heaters |
| Product Type | Dishwashing Equipment & Supplies |
| Usage Level | Medium Duty |
| Voltage | 240 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts |
| Watts | 51 - 60 |
| Width (in) | 18 |
| Weight | 142.00 |
Important Prop 65 information for California residents.
Compare to Similar Items
| Attributes |
Hatco C-54 Hatco C-54 Compact Booster Water Heater, 6 Gallon, 54 kW, 240v/3ph Current Item |
||
|---|---|---|---|
| Customer Rating |
|
|
|
| Price | $4,760.80 / Each | $4,708.55 / Each | $4,760.80 / Each |
| Shipping | Free Shipping | Free Shipping | Free Shipping |
| Usage Level | Medium Duty | Medium Duty | Medium Duty |
| 40F Recovery (gph) | 542 | 542 | 542 |
| 70F Recovery (gph) | 310 | 310 | 310 |
| Capacity (gallons) | 6 | 6 | 6 |
| Width (in) | 18 | 18 | 18 |
| Watts | 51 - 60 | 51 - 60 | 51 - 60 |
| Heat | Electric | Electric | Electric |
| Voltage | 240 | 480 | 208 |
| Warranty | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts | 1-year Parts & Labor; 10-year Tank Parts |
