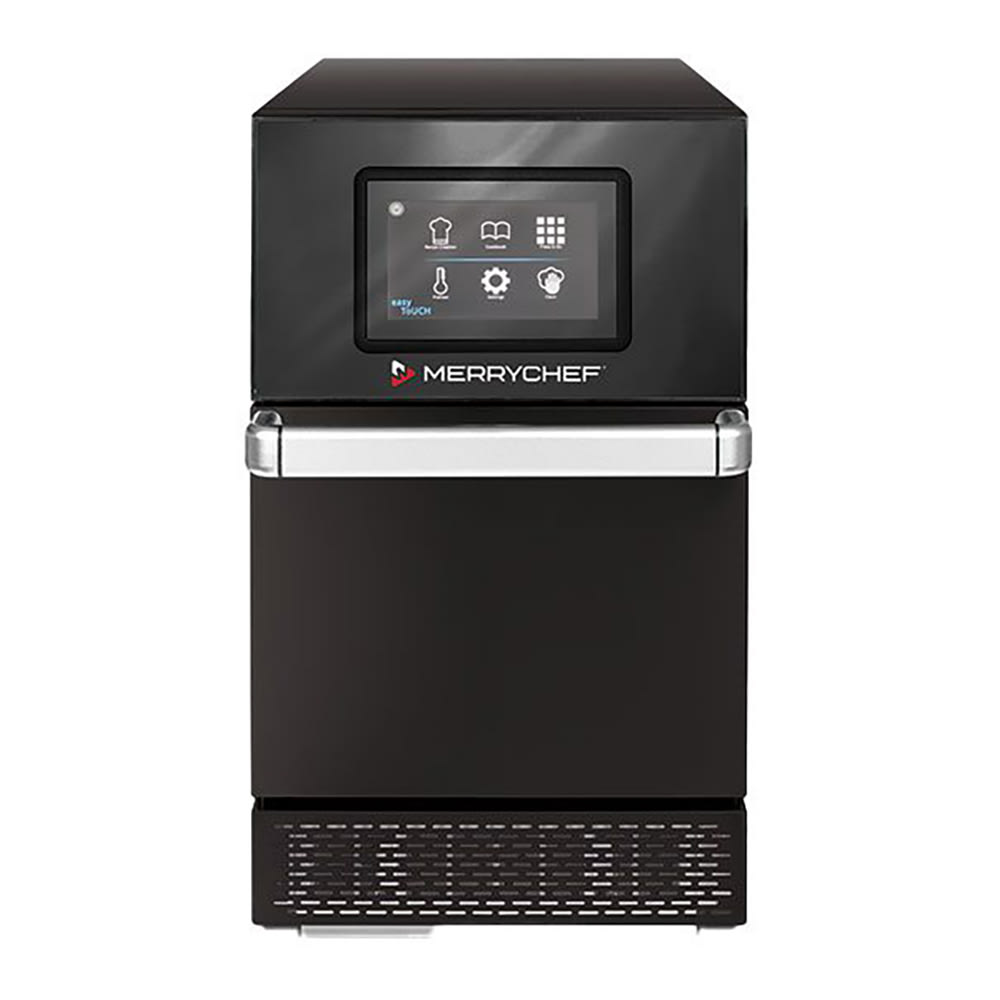

Merrychef CONNEX12HPNEMA6-30PBLACK Merrychef conneX® 12 High Power Microwave Convection/Impingement Oven - 208 240v/1ph, Black

KaTom #: 624-CONNEX12N630PBLK • MPN: CONNEX12HIGHPOWERCARBONBLACK
  • 624-CONNEX12N630PBLK Primary Thumbnail Image
  • 624-CONNEX12N630PBLK Multiple Thumbnail Image #1
  • 624-CONNEX12N630PBLK Multiple Thumbnail Image #2
  • 624-CONNEX12N630PBLK Multiple Thumbnail Image #3

Typically ships in 6 - 8 weeks

Free Shipping Item

Retail Price: $26,894.00

$11,564.00 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

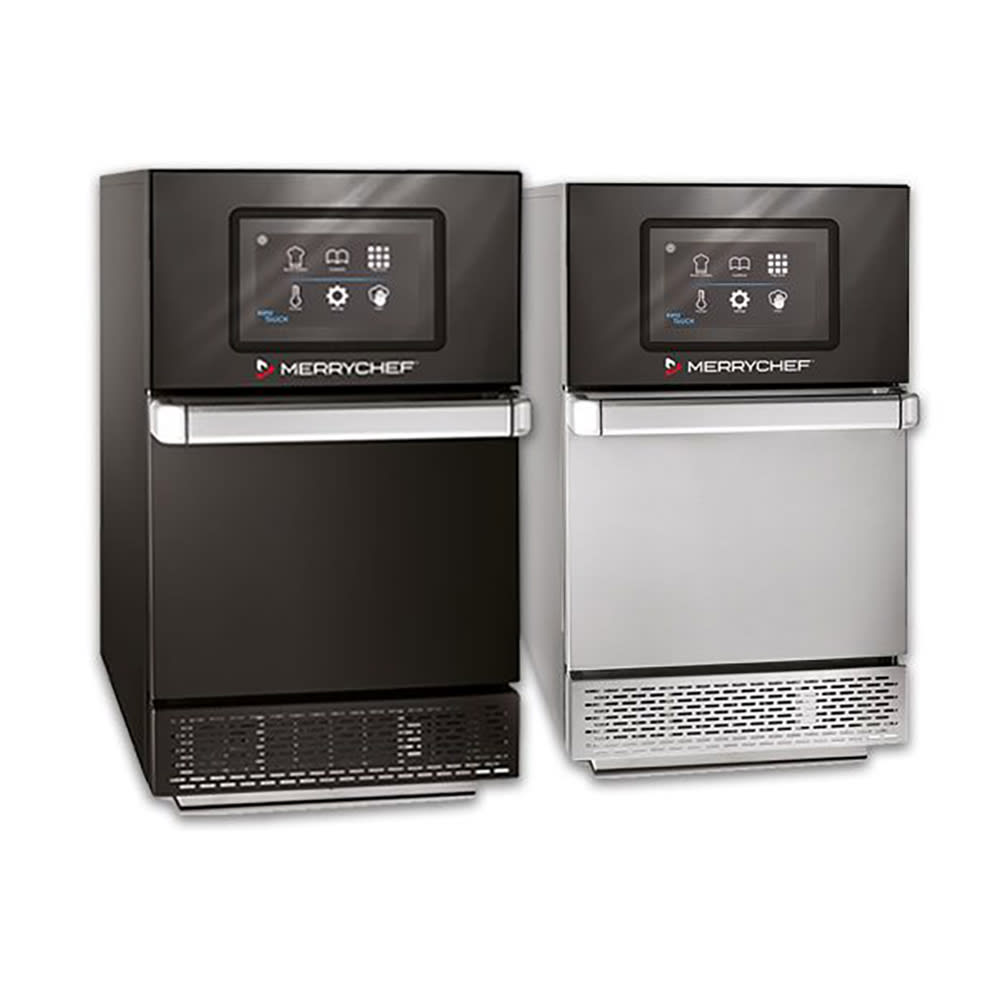

Selected Color: Black

Black
Stainless Steel
tony wall User Image
Ask a Foodservice Equipment Specialist

Merrychef CONNEX12HPNEMA6-30PBLACK Description

This Merrychef CONNEX12HIGHPOWERCARBONBLACK microwave convection and impingement oven combines three heating methods for highly efficient operation. Its microwaving system operates between 5 and 100 percent and heats with a rotating antenna, while the convection heating functions between 212 to 527 degrees Fahrenheit and evenly browns using tuned impingement. Great for toasting, grilling, or reheating, the 12-inch by 12-inch interior cavity is accessible through the bottom-mounted door, which features an ergonomic handle. This unit measures 14 inches wide by 24 2⁄5 inches high and is supplied with catalytic converters for a ventless design that is simple to install on worktops. The cavity and casework of this unit are constructed of stainless steel with a carbon black finish for a modern touch.

The Merrychef CONNEX12HIGHPOWERCARBONBLACK high-power convection and impingement oven is simple to manage and operate using the front-placed, 7-inch control screen. This screen has an HD display with icon-driven controls that make it comfortable to navigate. The main menu screen provides the following sub menus: Recipe creation, Press & Go, Cookbook, Cleaning, Temperature Change, and Settings. Users can input their recipes, though this unit has pre-programmed memory with over 100 recipes for convenient operation. This unit’s menu can be readily updated with data with a USB memory stick or via the KitchenConnect cloud.

  • conneX® series
  • 7-in. high-definition touchscreen
  • Catalytic converters promote ventless design

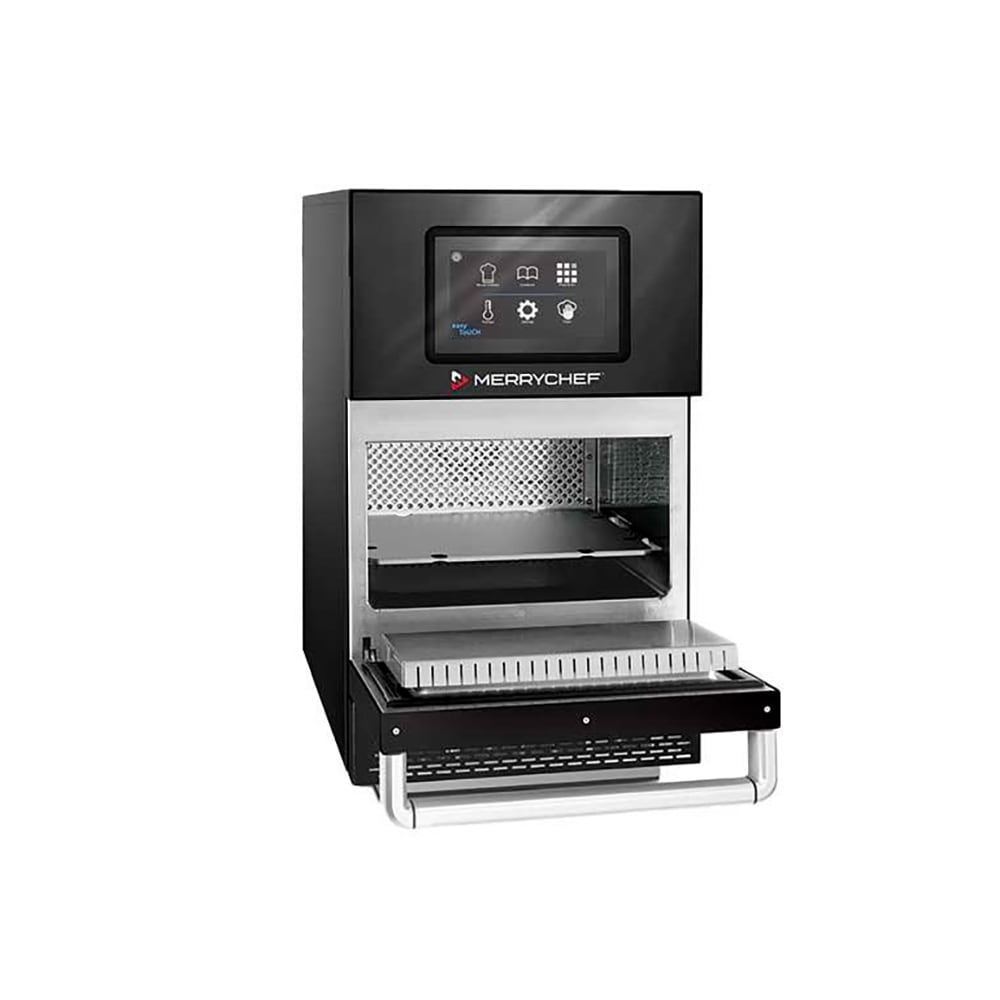

  • Bottom-hinged door
  • Door has simple-to-use, ergonomic handle
  • Carbon black finish
  • Stainless steel cavity with rounded corners
  • Microporous insulation
  • Front-facing monitored air filtration

  • 3 heat technologies: microwave, convection, and impingement
  • Microwave setting options: 5-100 percent
  • Convection temperature range: 212-527 degrees F
  • easyTouch® icon-driven control system
  • Convenient diagnostic self-monitoring
  • Cooking profiles with programmable cooking times, microwave power settings, and instructions
  • Data transfer through USB memory stick or KitchenConnect cloud for convenient updates to menu

  • Cook plate
  • Paddle
  • Solid-bottom basket
  • Cool-down pan
  • Non-stick cooking liner
  • Oven cleaner/protector pack

  • Cooking cavity: 12 in. W x 12 in. D
  • Overall: 14 in. W x 25 1⁄2 in. D x 24 2⁄5 in. H
  • 30 A
  • 208-240 V/60 Hz/1 ph, NEMA 6-30P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Merrychef CONNEX12HPNEMA6-30PBLACK within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Merrychef conneX® 12, High Power Microwave Convection/Impingement Oven, 2000 watt microwave / 2200 watt convection, ventless, 12" x 12" cooking cavity, EasyTouch™ 2.0 , 7" high definition touchscreen control, bottom-hinged door, built-in catalytic converters, (1) cook plate (DB0739), (1) paddle (SR318), (1) solid bottom basket (32Z4165), (1) cool down pan (32Z4079), (1) non-stick cooking liner (32Z4088), (1) oven cleaner/protector pack (32Z4148), (1) Scrapper (32Z4191), (1) steam pipe brush (32Z4188), carbon black exterior, cULus, UL EPH Classified

Warranty Icon
1-year Limited Parts & Labor

Merrychef CONNEX12HPNEMA6-30PBLACK Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
