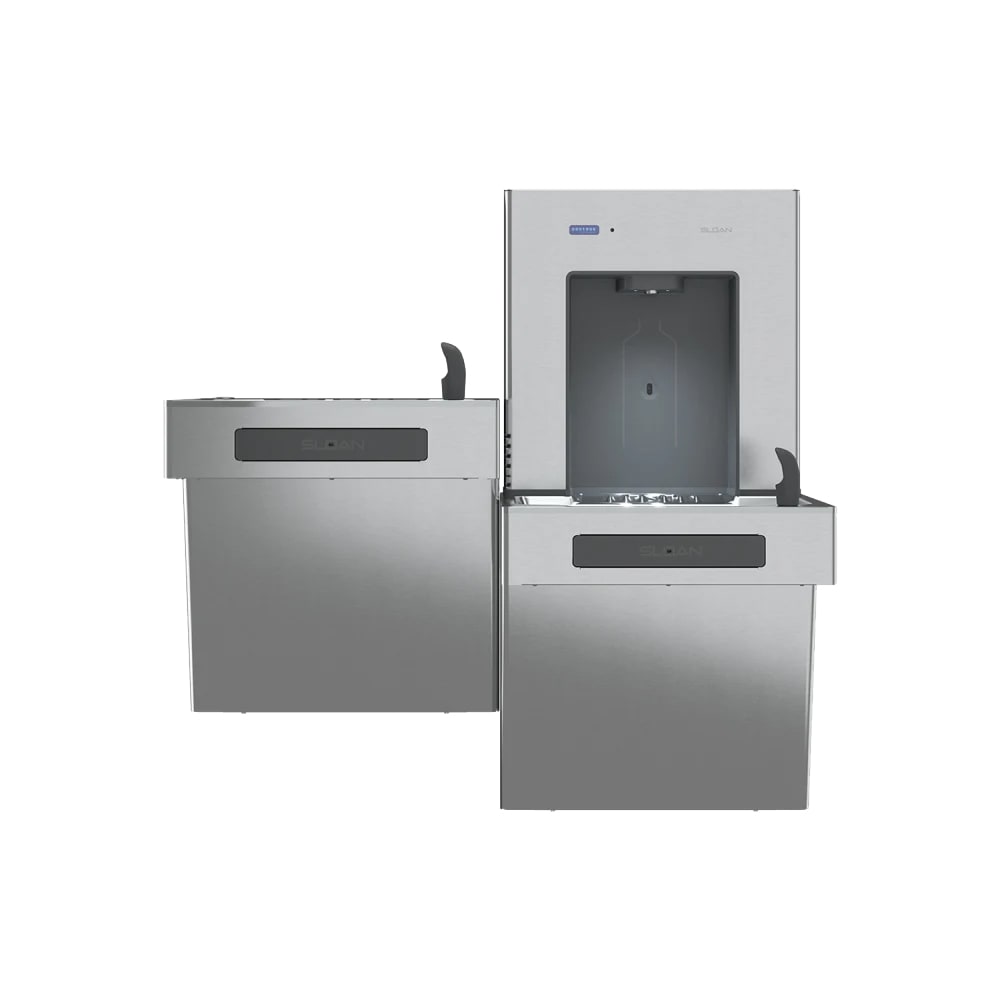

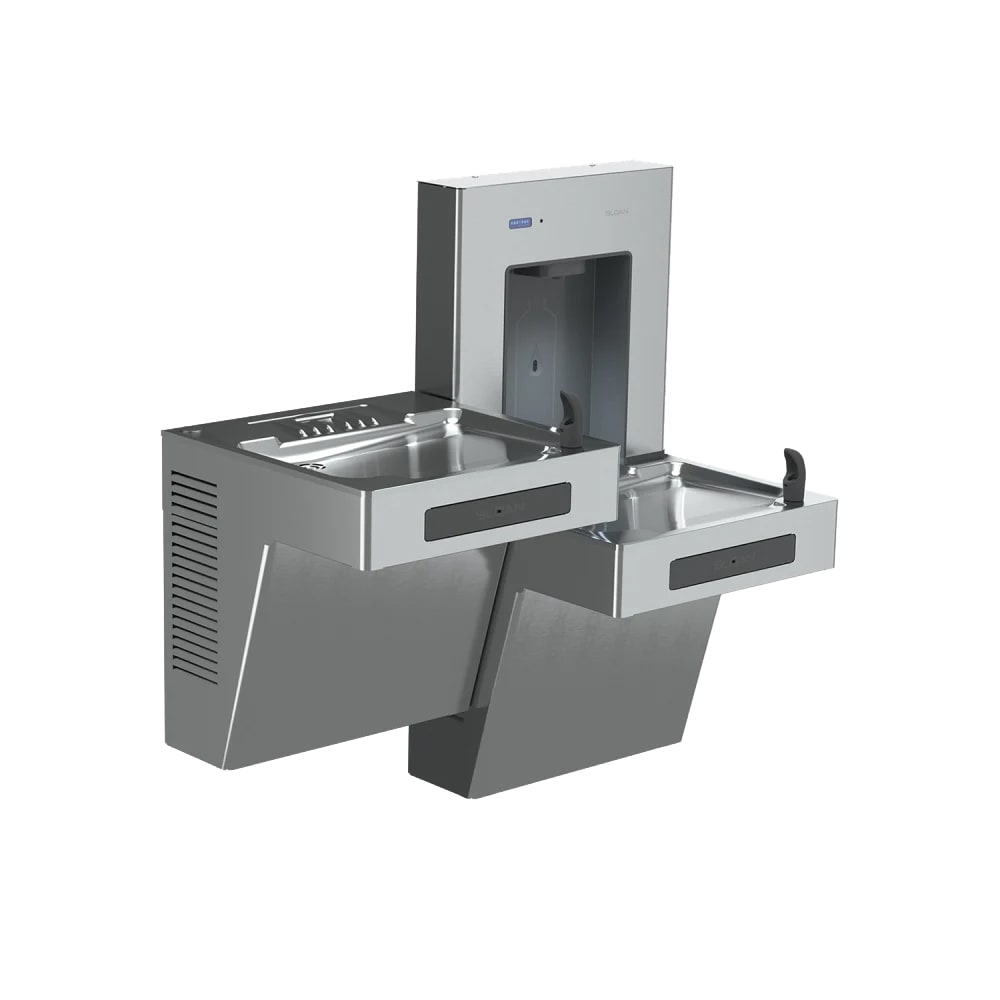

Sloan DropSpot™ Wall Mount Bi Level Drinking Fountain w/ Bottle Filler - Refrigerated, Filtered (33820006)
$2,597.73 /Each
Selected Color: Silver
Selected Filtration: Filtered
| Filtered |
| Non-Filtered |
Sloan 33820006 Description
The Sloan 33820006 DropSpot™ wall-mounted drinking fountain features a bi-level cooler layout that supports dual-user access and accommodates varying heights in compliance with ADA standards. Designed for indoor applications, this model includes a touchless bottle filler with a 20-second automatic shutoff and integrated backlit LED lighting to illuminate the fill zone. The antimicrobial push bar and bubbler components support safer operation in high-traffic areas, while the unit’s drop-down door design simplifies filter access and replacement.
Made of 304 stainless steel with a silver finish, the Sloan 33820006 drinking fountain features a refrigerated and filtered system that dispenses up to 8 gallons of chilled water per hour at 50 degrees Fahrenheit. The bottle counter display tracks ounces dispensed and quantifies the number of 16-ounce plastic bottles saved. Its versatile design is compatible with left-high or right-high mounting, and it uses R134A refrigerant for cooling.
- DropSpot series
- Indoor use only
- Wall-mounted design
- 304 stainless steel construction with silver finish
- Drop-down door assembly
- Push bar activation with antimicrobial protection
- Sensor-activated bottle filler with 20-sec. shutoff
- Touch-free operation with backlit LED fill area
- Bottle counter
- Delivers up to 8 GPH of 50-degree F water
- Laminar flow
- Bottle filler flow rate: up to 1 1⁄5 GPM
- Bubbler flow rate: 3⁄10 GPM
- Filtered and refrigerated
- Hermetically sealed compressor
- Tube/tank type cooling unit
- R134A refrigerant
- Factory-set adjustable thermostat
- 38 1⁄8 in. W x 19 in. D x 39 11⁄16 in. H
- 5.3 A, 370 W
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Sloan 33820006 within the 48 contiguous states.
From The Manufacturer
DropSpot™ Refrigerated Filtered Stainless Steel On-wall Bottle Filler with Bi-level Cooler, ADA Compliant, cULus Listed, NSF
Sloan 33820006 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Sloan |
| Application | Indoor |
| Color | Silver |
| Depth (in) | 19 |
| Filtration | Filtered |
| Height (in) | 39.69 |
| Hertz | 60 |
| Mounting Location | Wall |
| Number of Levels | 2 |
| Operation | Push Bar/Sensor |
| Phase | 1 |
| Product | Bottle Filler Water Fountain |
| Product Type | Commercial Plumbing Supplies |
| Refrigeration Type | Refrigerated |
| Series | DropSpot™ |
| Special Features | Drop-down Door Assembly Easy Access to Filter |
| Voltage | 115 |
| Warranty | See Warranty Document for Details |
| Width (in) | 38.13 |
| Weight | 112.00 |
