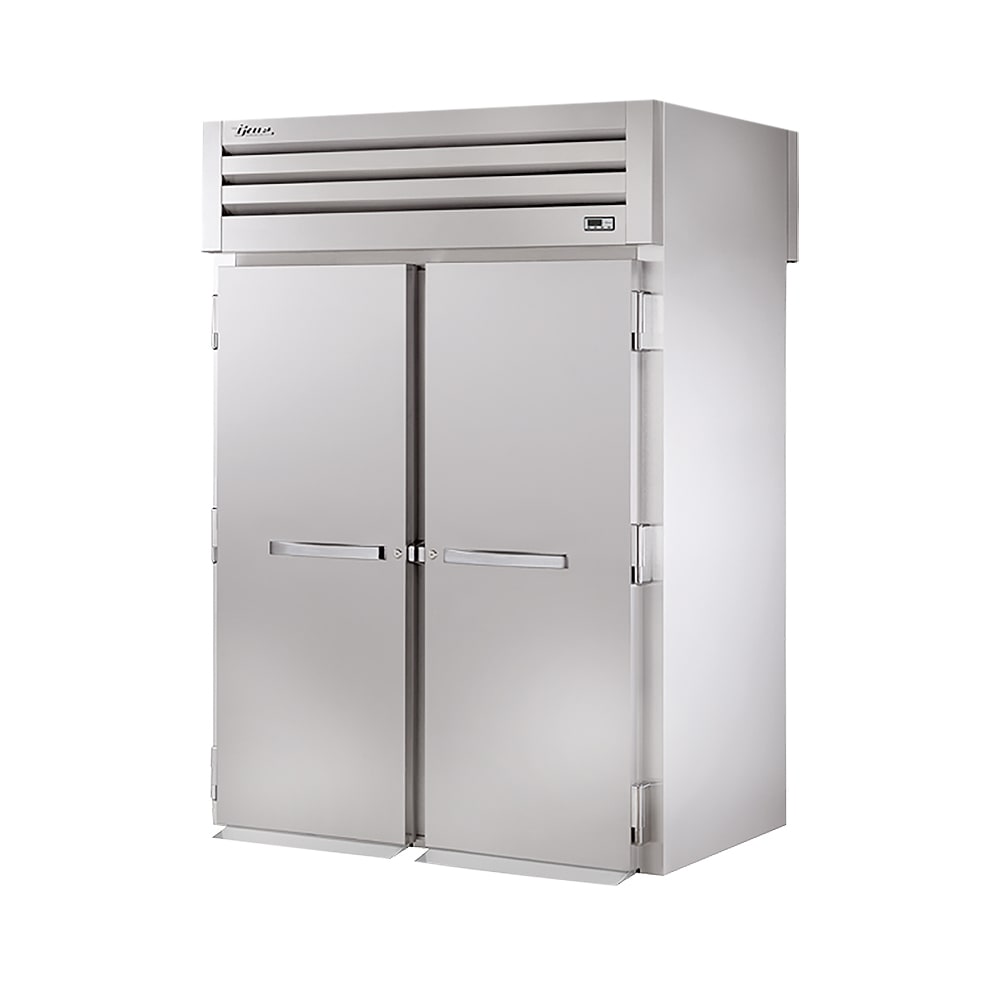

Heated Cabinet, Roll-Thru, 2 Section, 4 SS Doors, 75 cu ft

MODEL TR2HRT-2S-2S

STANDARD FEATURES:

• Provides cabinet holding temperature of 80˚F to 180˚F (26.67˚C to 82.22˚C).
• Internal fan provides low velocity, forced-air heat distribution to assure even temperatures throughout the cabinet.
• Two stainless steel 1000 watt finned tube heating elements for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.
• 300 series stainless steel exterior front and interior. The very finest stainless; higher tensile strength for fewer dents and scratches.
• (3) lifetime guaranteed, cam-lift hinges per door. Full 180 degree open capability with a stay open feature at 120 degrees.
• Designed to accept roll-in racks (inboard castors) with a maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm). (1) heavy gauge stainless steel ramp standard per door.
• Entire cabinet structure and solid door are foamed-in-place using high density, CFC free, polyurethane insulation.

HEATER SYSTEM:

• Cabinet is designed to provide holding temperatures of 80˚F to 180˚F (27˚C to 83˚C). Heating system controlled by exterior on/off switch and temperature control dial.

• Two stainless steel, finned tube heating elements (1000 watts each) per section for uniform generation of electric heat. Cabinet comes with a total of 2000 watts.

• Cabinet equipped with low-velocity fan to assure even temperature distribution throughout the cabinet. Fans are controllable by exterior on/off switch.

• Manually controlled vent located on top of the cabinet for positive humidity control.

• Exterior dial thermometer; accurate direct reading of internal cabinet temperature..

CABINET CONSTRUCTION:

• Exterior - 300 series stainless steel front, shroud and doors. 300 series stainless steel exterior ends, top, back, and bottom.

• Interior - 300 series stainless steel interior cabinet side walls, back, door liner and floor. Construction of liner in accordance with NSF standards.

• Stainless steel breaker cap.

• Insulation - entire cabinet structure and solid door are foamed-in-place using high density, CFC free, polyurethane insulation.

• (1) heavy gauge stainless steel ramp standard per door.

• Designed to accept roll-in racks (inboard castors) with a maximum dimensions of 27"L x 29"D x 66"H (686 mm x 737 mm x 1677 mm).

LIGHTING:

• Incandescent interior lighting; safety shielded.

MODEL FEATURES:

• True heated cabinets are designed to hold warm baked or cooked food. Cabinets are not designed to heat ambient or cold product.

DOORS:

• 300 series stainless steel door liner. Door opens within cabinet dimension. Door lock standard.

• (3) lifetime guaranteed, cam-lift hinges per door. Full 180 degree open capability with a stay open feature at 120 degrees.

• Lifetime guaranteed recessed door handle. Each door fitted with 12" (305 mm) long recessed handle that is foamed-in-place with a sheet metal interlock to insure permanent attachment.

• Magnetic door gasket of one piece construction, removable without tools for ease of cleaning.

• Door is field reversible.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory and ready for final connection to a 115/208-240/60 Hz. Single phase - 20 amp dedicated outlet.

• A sole use circuit is required.


OPTIONAL FEATURES/ACCESSORIES:
(At Extra Cost - Lead Time May Apply)

• Metal door handle.

• Export units - consult factory.

• Prison package options - consult factory.
