Scotsman F0522W-1 23" Prodigy Plus® Flake Ice Machine Head - 530 lb/24 hr, Water Cooled, 115v
Scotsman F0522W-1 Description

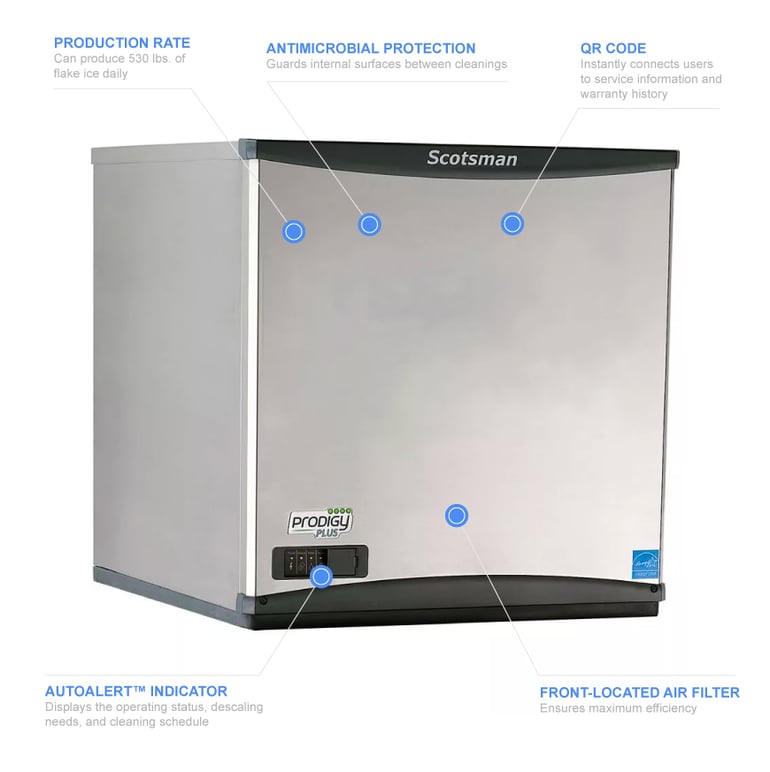

The Scotsman F0522W-1 Prodigy Plus® ice machine head does not include a bin. This unit can produce 429 to 530 pounds of flake ice within 24 hours and is ideal for displaying seafood and produce. Components that make contact with water have AgION®, a silver-based antimicrobial agent, built in to slow bacteria growth between cleanings. The head features a self-aligning panel and a front-facing air filter. The Scotsman F0522W-1 ice machine head has AutoAlert lights that inform the operator of issues.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- Produces flake ice
- 530-lb. ice production capacity
- 429-lb. AHRI-certified ice production capacity
- Issues are conveyed by AutoAlert lights
- Service information and warranty history are available through the QR code
- Front air filter
- Self-aligning front panel
- AgION antimicrobial compound is built into major components to slow bacteria growth
- Water-cooled motor
- Uses R404A refrigerant
- Ice bin sold separately
- Ambient air temperature range for operation: 50-100 degrees F
- Incoming water temperature range for operation: 40-100 degrees F
- 5,000 BTU
- 14.4 A, 3.73 kW
- 208-230 V/60 Hz/1 ph
- Overall dimensions: 22 9⁄10 in. W x 24 in. D x 23 in. H
Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Scotsman F0522W-1 within the 48 contiguous states.
From The Manufacturer
Prodigy Plus® Ice Maker, flake style, water-cooled, self-contained condenser, production capacity up to 530 lb/24 hours at 70°/50° (429 lb AHRI certified at 90°/70°), Auto-alert™ indicating lights, stainless steel finish, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus
Scotsman F0522W-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Scotsman |
| 24 Hr. Production (lb) | 530 |
| Amps | 14.4 |
| Cold Water (in) | 3/8 |
| Compressor Type | Water Cooled |
| Depth (in) | 24 |
| Height (in) | 23 |
| Hertz | 60 |
| Ice Type | Flake |
| Indirect Waste Size (in) | 3/4 |
| Phase | 1 |
| Product | Ice Machine Heads |
| Product Type | Ice Makers & Bins |
| Series | Prodigy Plus® |
| Special Features | AutoAlert™ |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor, 5-year Compressor Parts; Residential: 1-year Parts & Labor |
| Width (in) | 23 |
| Weight | 173.00 |
