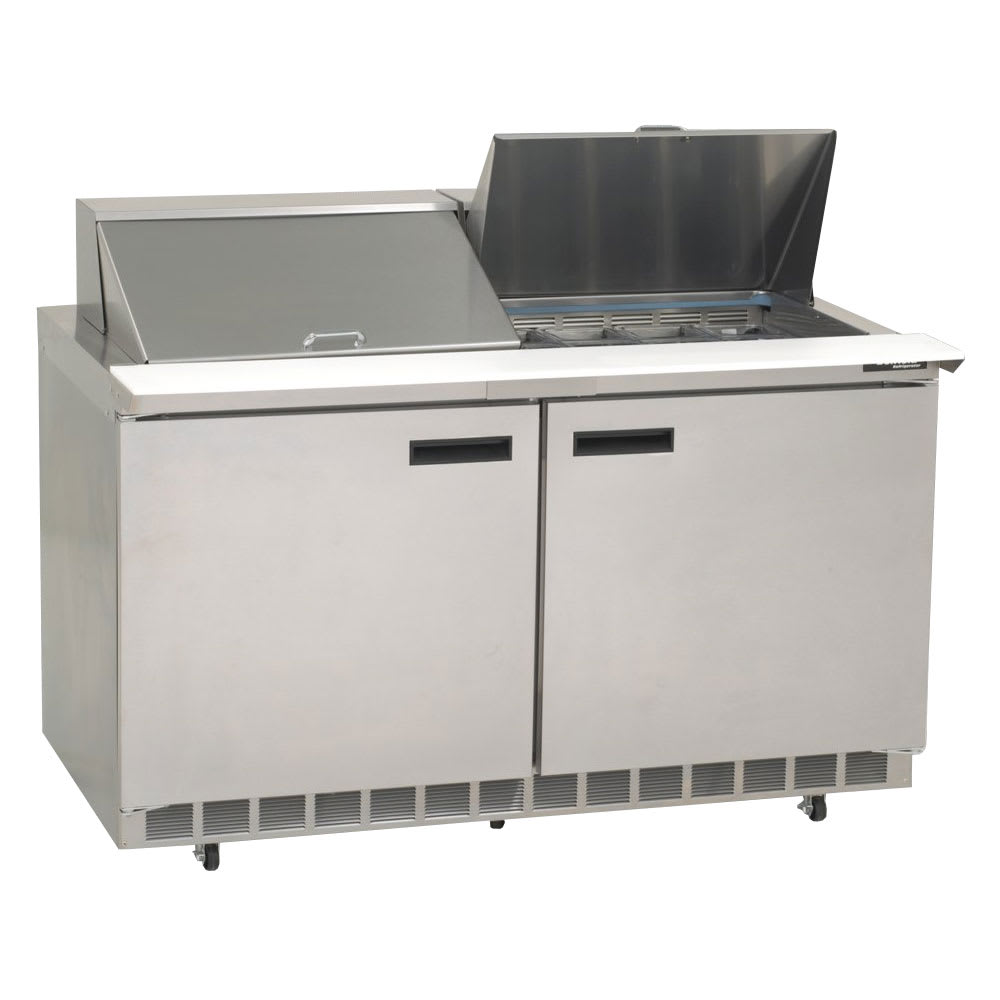

60in Salad Top Refrigerator, 24 Pans, Mega Top
Delfield - Model 032-4460N24M
 |
 |
Front-Breathing Self-Contained Compact Mega Top Refrigerators |
|
|
MODEL 4460N24M
Good, Basic, Cold Storage |
|
|
60" Sandwich/Salad Top
Refrigerator , 24 Pan,
Mega Top
Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYSOPTIONS & ACCESSORIES:
-
Flat lift off covers
-
4″ x 2″ stainless steel back-splash
-
18″ wide single tier over-shelf
-
Stainless steel back
-
Plastic laminate on front
-
Additional wire shelves
-
Door lock
-
*220V/50 Hertz electrical system
* Inclusion of this option will alter
electrical specifications of the unit.
Features, Options & Specifications
Subject to Change Without Notice
|
STANDARD FEATURES:
-
Exterior Top is one-piece 22-gauge stainless steel with integral 2.12″ (5.1cm) square nosing on the front. Telescoping lid is constructed of 20-gauge stainless steel. Top opening can accept 12, 18 or 24 1/6 size plastic pans 4″-6″ (10.1cm-15.2cm) deep. Adapter bars and 1/6 size pans are supplied by Delfield. Temperature in top openings maintains 33°F (1°C) to 41°F (5°C), with pans recessed 2.5″ (6.4cm) at 86°F ambient room temperature, meeting NSF 7 requirements. One 60″ x 8″ x .5″ (152.4cm x 20.3cm x 1.3cm) plastic cutting board is mounted on the top at the front edge.
-
Exterior back and bottom are two piece 24-gauge galvanized steel. Exterior ends are stainless steel.
-
Interior Sides are thermoformed ABS plastic with integral shelf supports. Base is fully insulated with high- density foamed in place polyurethane.
-
Door has a 22-gauge stainless steel exterior, with thermoformed ABS plastic interior liner. Cabinet is supplied with one adjustable epoxy-coated wire shelf per door opening.
-
Refrigeration uses HFC-404A refrigerant. Compressor is 1/2 H.P., with condenser coil and condensate evaporator mounted on rear of the cabinet. Evaporator coils and temperature control are located on the interior rear wall of the cabinet. Refrigerant flow is controlled by a capillary tube. Cabinet maintains an interior cabinet temperature of 36°F to 40°F (2°C to 4°C).
-
Electrical connection is 115 volt, 60 Hertz, single phase. Unit has an 8″ (2.4m) long electrical cord and NEMA 5-15P plug.
-
Casters: Equipment is mounted on 2″ (5.08cm) diameter plate casters with front two locking. Equipment clearance above the floor is 2.5″ (6.35cm).
-
Drawers have 22-gauge stainless steel exterior with thermoformed ABS plastic interior liner. Drawer frames are 14-gauge stainless steel. Drawer slides are 14-gauge stainless steel with stainless steel bearings. Each top drawer holds one 12″ x 20″ (30.5cm x 50.8cm) pan 4″ -6″ (10.1cm-15.2cm) deep. Each bottom drawer holds one 12″ x 20″ (30.5cm x 50.8cm) pan 4″ (10.1cm) deep. Pans are supplied by others.
|
|
|
|
|
|
CLICK IMAGE FOR LARGER VIEW |


|
|
|
MECHANICAL DATA |
|
Model Number |
1/6 Size Pan
Capacity |
Number
Of
Shelves |
Shelf
Area Sq. Ft. |
Storage
Cap. Cu. Ft. |
H. P. |
Volts/
Hertz/
Phase |
AMPS |
NEMA
Plug |
Ship
Weight
Lbs. |
|
4460N24M |
24 |
2 |
7.36 |
15.7 |
1/2 |
115-60-1 |
12.0 |
5-15P |
430 |
|
| |
|
 |
|
|
 |
This item is manufactured by a
company that is part of the Enodis Group. Enodis offers
financing for all brands and preferred rates for orders that contain any Enodis Group
products. There is a $5,000 minimum total order to finance
through Enodis. Learn more about
Enodis Financing. |
|
State and local sales tax will be collected on the sale of Delfield products
in all 50 states per the requirements from the Delfield Corporation. The
sales tax will show on the automated invoice only for sales within the state of Tennessee. Read more about
sales tax collection by KaTom. |
Product Specifications
- Product Spec Sheet
- Crated Weight: 430.00 lbs.
- Category: Food Prep Tables
- Cutting Board: 8 inch
- Doors/Drawers: 2 Door
- Length (in): 60
- Pans: 24
- Type: Sandwich/ Salad Prep
- Manufacturer: Delfield
