	TSSU Series - Food Prep Table - ADA Compliant

True's salad/sandwich units are
designed with enduring quality
that protects your long term
investment..

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

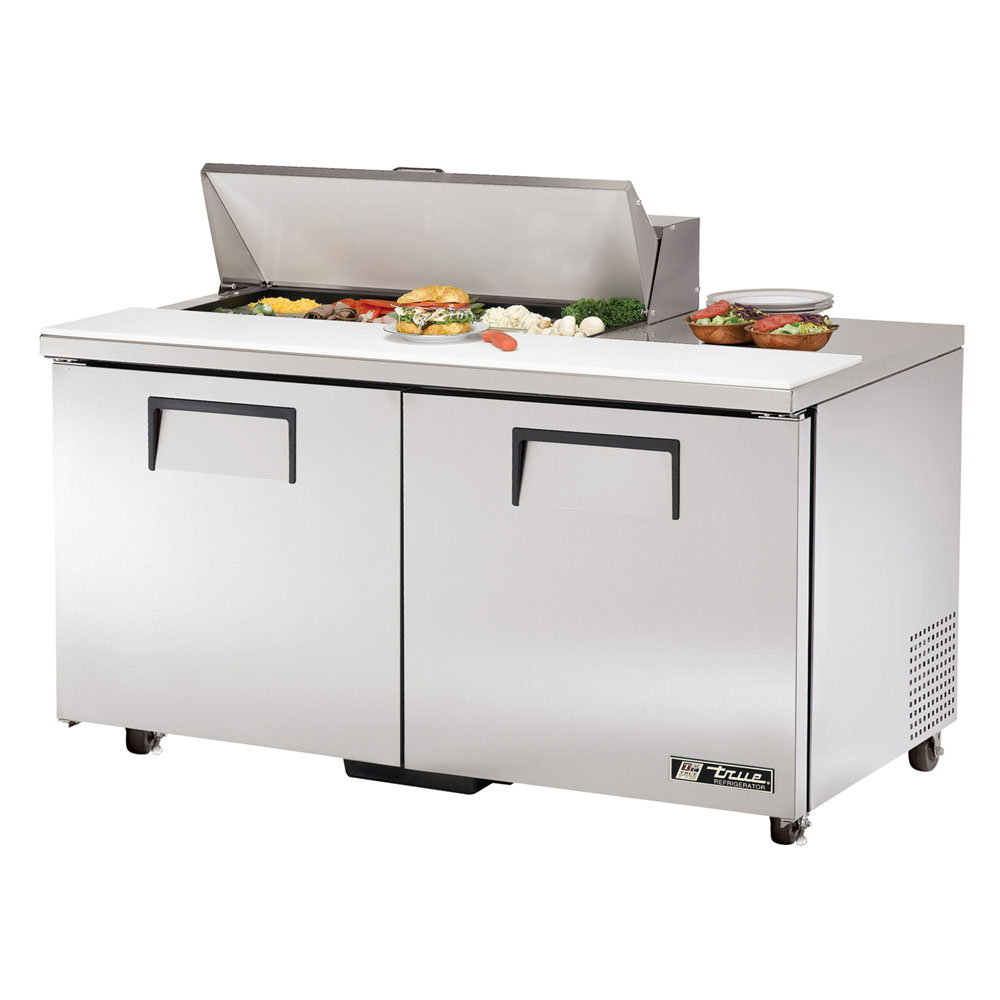

Solid Door Sandwich / Salad Unit
2 DOORS
15.5 CUBIC FEET
ADA COMPLIANT 34" WORK COUNTER HEIGHT

MODEL TSSU6010ADA

STANDARD FEATURES:

Oversized, environmentally friendly (134A) forced-air refrigeration system holds 33°F to 41°F (.5°C to 5°C).
Complies with and listed under ANSI/NSF-7-1997-6.3. All stainless steel front, top and cabinet ends. Matching aluminum finished back.
Stainless steel, patented, foam insulated lid and hood keep pan temperature colder, lock in freshness and minimize condensation. Removable for easy cleaning.
11 3/4" (299 mm) full length removable cutting board included. Sanitary, high density, NSF approved white polyethylene provides tough preparation surface.
Foamed-in-place, high density polyurethane insulation (CFC free).
Heavy duty PVC coated wire shelves..

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.

230 - 240V / 50 Hz.
6" (153 mm) standard legs.
6" (153 mm) seismic/flanged legs.
2 1/2" (64 mm) diameter castors.
Additional shelves.
Basic over-shelf.
Sandwich/salad service shelf.
Single utility shelf.
Double utility shelf.
Sneeze guard.
19"(483 mm) deep, 1/2" (13 mm) thick, white polyethylene cutting board. Requires L brackets.
19" (483 mm) deep, 3/4" (20 mm) thick, white polyethylene cutting board. Requires L brackets.

11 3/4" (299 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
19" (483 mm) deep, 1/2" (13 mm) thick, composite cutting board. Requires L brackets.
Crumb catcher. Requires crumb catcher cutting board for proper installation.
ADA compliant model with 34" (864 mm) work surface height.
Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ADA Compliant 34" work counter height

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model

Doors

Capacity
(cu. Ft.)
Liters

Shelves

Pans
(top)

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)
(total m)

Crated
Weight
(kg)

H *

TSSU6010ADA
43" WORK COUNTER HEIGHT

15.5

60 3/8

30 1/8

36 3/4

1/3

115/60/1

7.8

5-15P

330

439

1534

766

934

1/3

230-240/50/1

4.2

▲

2.13

150

Depth does not include 1" (26 mm) for rear bumpers.
* Height does not include 4" for castors .

▲ Plug type varies by country.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	METRIC DIMENSIONS ROUNDED UP TO THE NEAREST WHOLE MILLIMETER SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
			TSSU6010	TFNY06E	TFNY05S	TFNY06P	TFNY063
