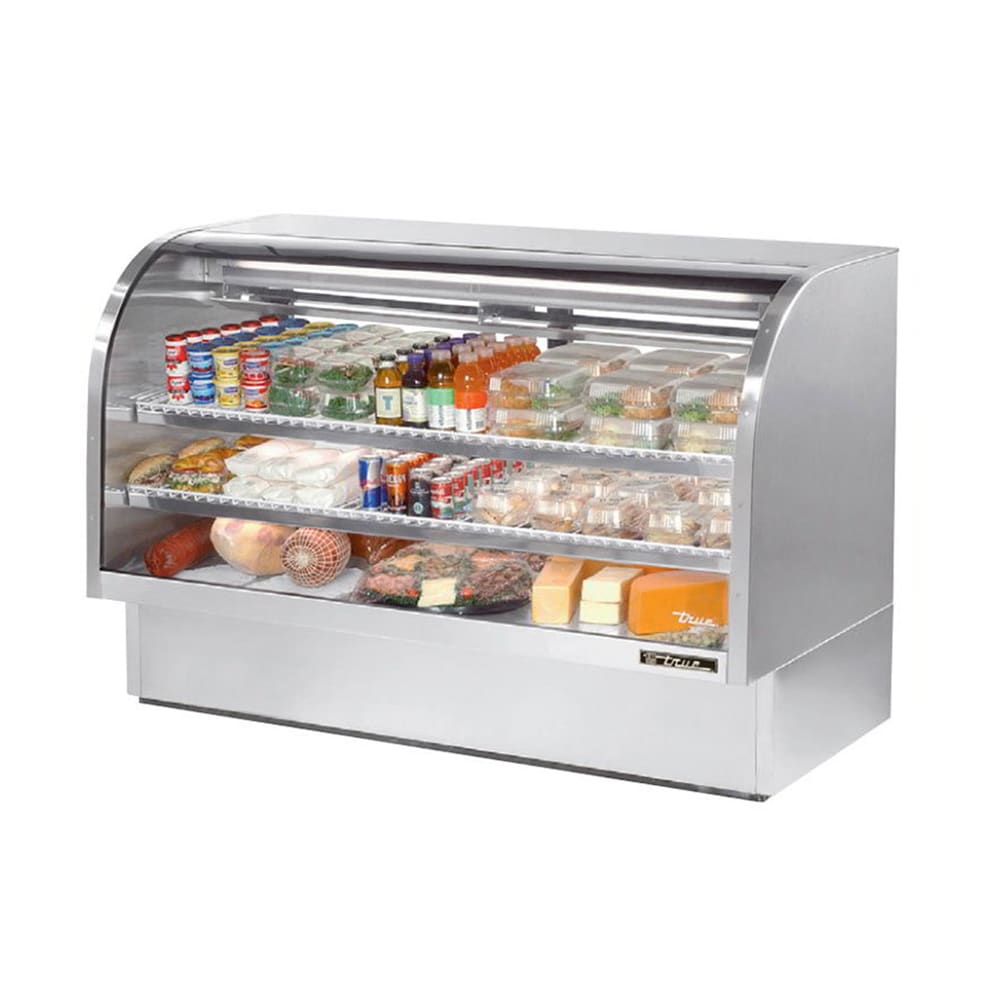

73in Curved Glass Deli Case, SS, Service Type, 2 Adj Shelves, Gl Slide Rear Drs - Restaurant Equipment at KaTom Restaurant Supply


	TCGG Series - Curved Glass Deli Cases

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS

stainless steel
2 Door
37.1 CUBIC FEET

MODEL TCGG72S

STANDARD FEATURES:

True™s curved glass deli display case combines efficient, high volume merchandising and superior refrigeration with an elegant curved glass front for sophisticated presentation of deli products.
Superior gravity coil refrigeration system maintains 38°F to 40°F (3.3 °C to 4.4°C) for the freshest display of meats and cheeses designed to increase sales and profits.
Self-contained, environmentally friendly (CFC free) 134A refrigeration system.
Cabinet is NSF-7 certified to hold open food product.
Insulated double pane glass provides maximum insulation value for greater efficiency and energy savings. Both panes are tempered for safety.
Full length adjustable stainless steel mezzanine shelf with light.
Low UV emitting fluorescent lighting system.
All stainless steel interior and exterior.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
Lighted stainless steel mezzanine shelves. Non-lighted stainless steel mezzanine shelves.	Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8".

Model

Doors

Capacity
(Cu. Ft.)

# of
Shelves

Dimensions
(Inches)

Volts

Amps

NEMA
Config.

Cord
Length
(total feet)

Crated
Weight

TCGG72S

37.1

72 1/4

35 1/4

47 3/4

3/4

115/60/1

16.0

5-20P

695

Depth does not include 7/8" for rear door handle.

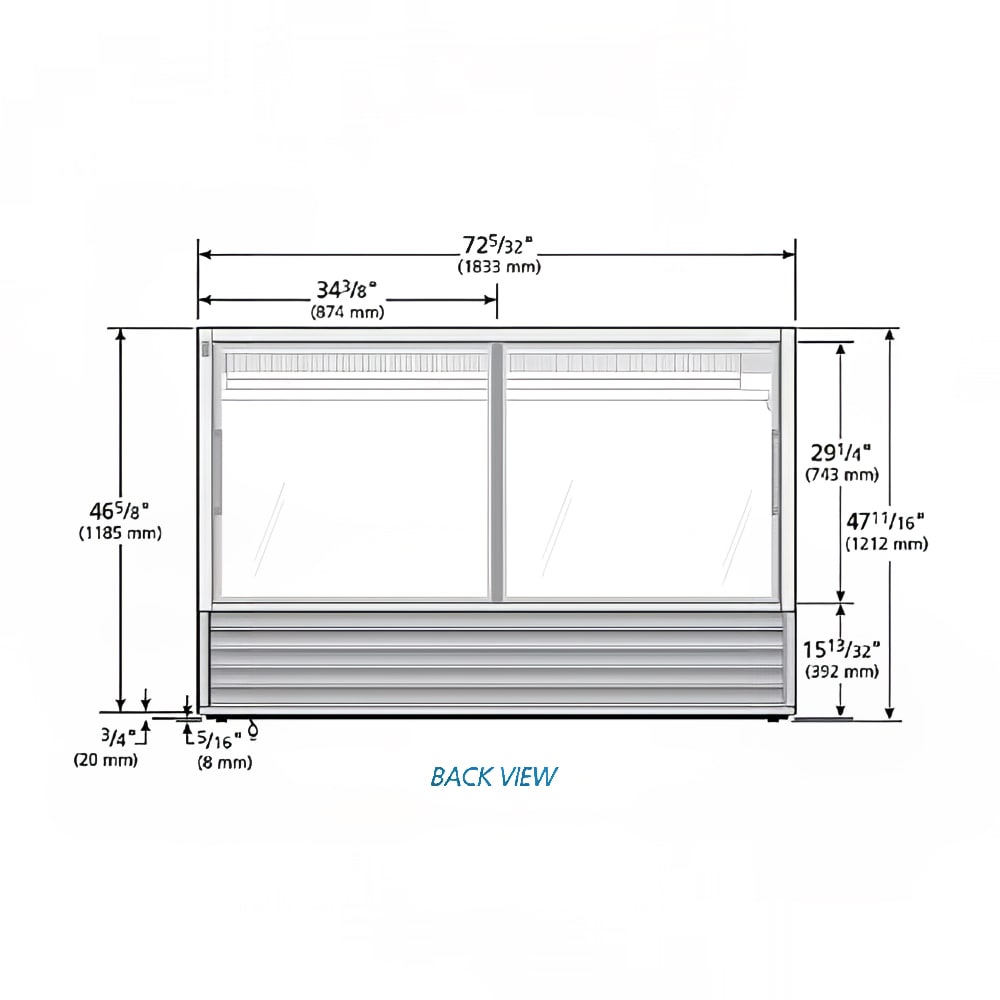

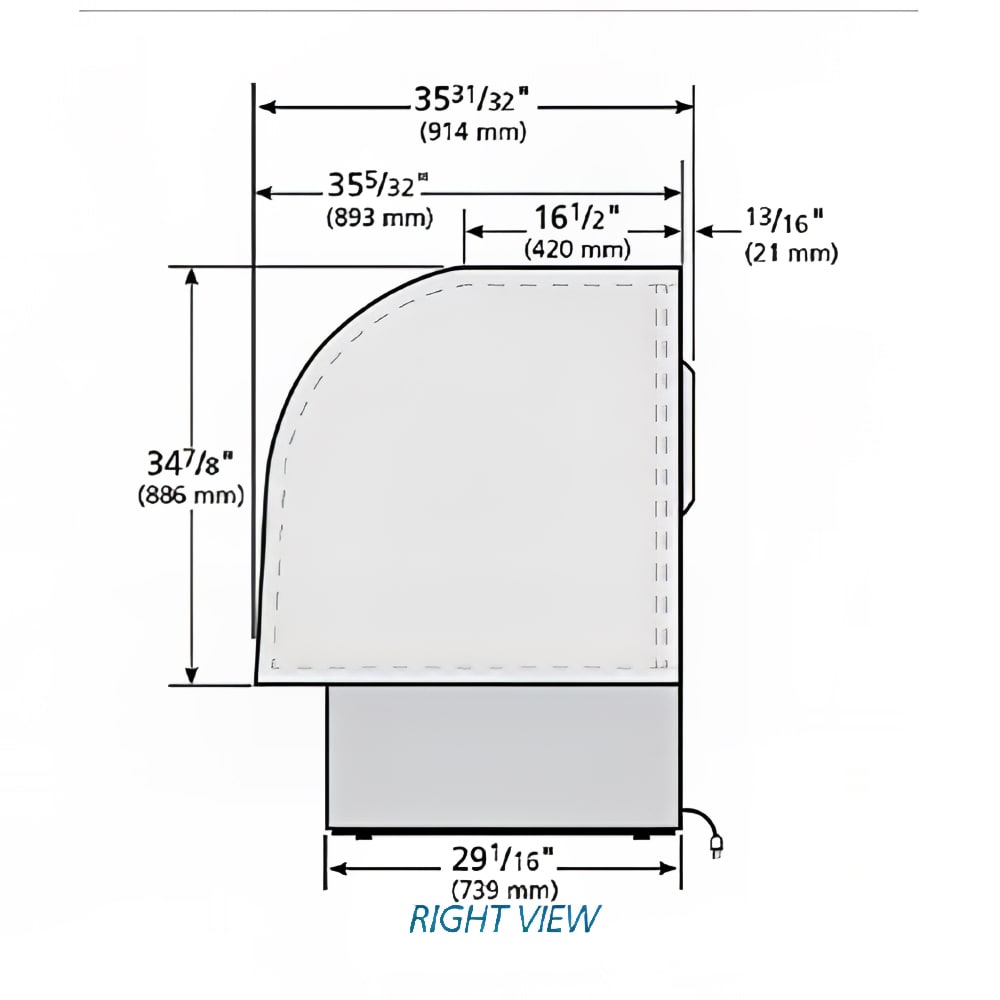

WARRANTY One year warranty on all parts and labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D	Back
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TCGG72S	TFD057E	TFD057S	TFD057P	TFD0573	TFD057B
