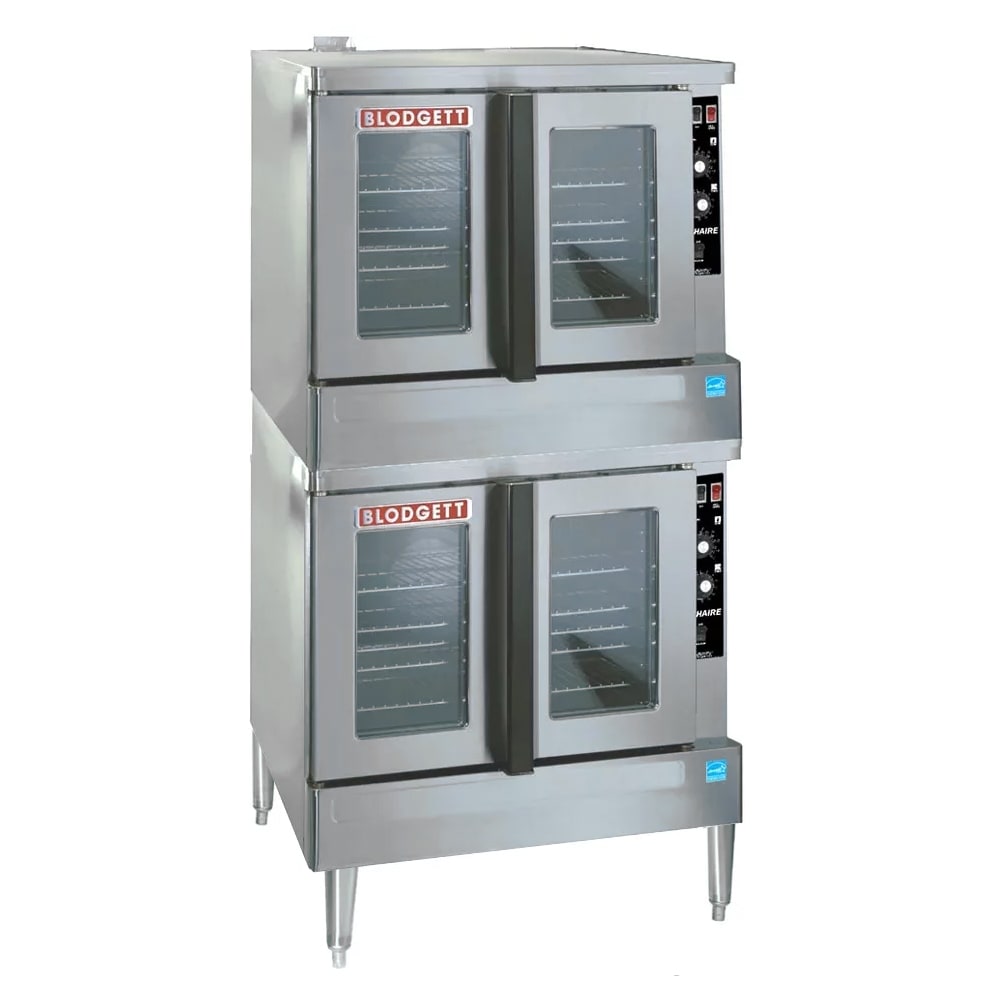

Blodgett ZEPH-100-E DBL Zephaire Double Full Size Electric Convection Oven - 22kW, 220-240v/3ph
In each compartment of the Blodgett ZEPH-100-E DBL Zephaire convection oven, three tubular heaters can generate heat between 200 and 500 degrees Fahrenheit as operators adjust the solid-state infinite...
Blodgett ZEPH-100-E Zephaire Double Full Size Electric Convection Oven - 22kW, 220 240v/3ph
Blodgett ZEPH-100-E Description
The Blodgett ZEPH-100-E DBL double full-size convection oven comes with five racks in each compartment. The unit can accommodate (10) 18-inch-by-26-inch pans, while its standard depth holds them in the left-to-right position. There are lamps in the oven to illuminate the product. Windows in the four doors make it easy to see the cooking process from the outside. Loading and unloading product is simplified since one handle opens two doors simultaneously, and the doors are aligned and sealed with the triple-mounted pressure lock design.
A two-speed fan circulates heated air inside the Blodgett ZEPH-100-E DBL double full-size convection oven. Temperatures in the compartments range from 200 to 500 degrees Fahrenheit. The unit is protected from premature system breakdowns by automatic thermal overload protection and a cooling fan. Overload protection keeps the blower motor safe from thermal damage, while the cooling fan keeps the control area within a safe temperature range.
Product Details
- Includes 5 chrome-plated racks that adjust to 11 positions with a 1 5⁄8-in. minimum spacing
- Standard compartment depths accommodate 18-in. x 26-in. pans left to right
- Lamps in the ovens shine on the product to illuminate the cooking process
- Dual-pane thermal glass windows in stainless steel door frames provide a way to see inside
- Single handle per oven simultaneously opens both doors
- Triple-mounted pressure lock design aligns and seals the doors
- Solid insulation at the sides, top, bottom, and back creates structure and retains heat
- Stainless steel-constructed top, front, and sides are corrosion resistant and heavy duty
- Full angle-iron frame provides extra strength for commercial applications
- Temperature range: 200-500 degrees F
- 2-speed fan is designed to evenly distribute hot air in the cavities
- Automatic thermal overload protection for the blower motor
- Control area cooling fan keeps the components safe from overheating
- Removable front control panel simplifies maintenance
- 6-in. stainless steel legs can be adjusted to suit different floors
- 240 V/60 Hz/3 ph, 22 kW
- Interior dimensions: 29 in. W x 24 1⁄4 in. D x 20 in. H
- Overall dimensions: 38 1⁄4 in. W x 42 7⁄8 in. D x 70 5⁄8 in. H
Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Blodgett ZEPH-100-E within the 48 contiguous states.
From The Manufacturer
Zephaire Convection Oven, electric, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-D) solid state infinite controls with digital timer, two speed fan, vent connector, dependent glass doors, interior light, stainless steel front, sides and top, 6" stainless steel legs, ETL, NSF, ENERGY STAR®
Blodgett ZEPH-100-E Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Controls | Manual |
| Door Construction | Glass Only |
| Door Type | Dependent |
| Heat | Electric |
| Hertz | 60 |
| Interior Construction | Stainless Steel |
| Number of Ovens | Double |
| Pans Per Deck | 5 |
| Phase | 3 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Series | Zephaire |
| Size | Full Size |
| Type | Floor Model |
| Voltage | 240 |
| Warranty | 2-year Parts; 1-year Labor; 3-year Door Parts |
| Weight | 960.00 |
