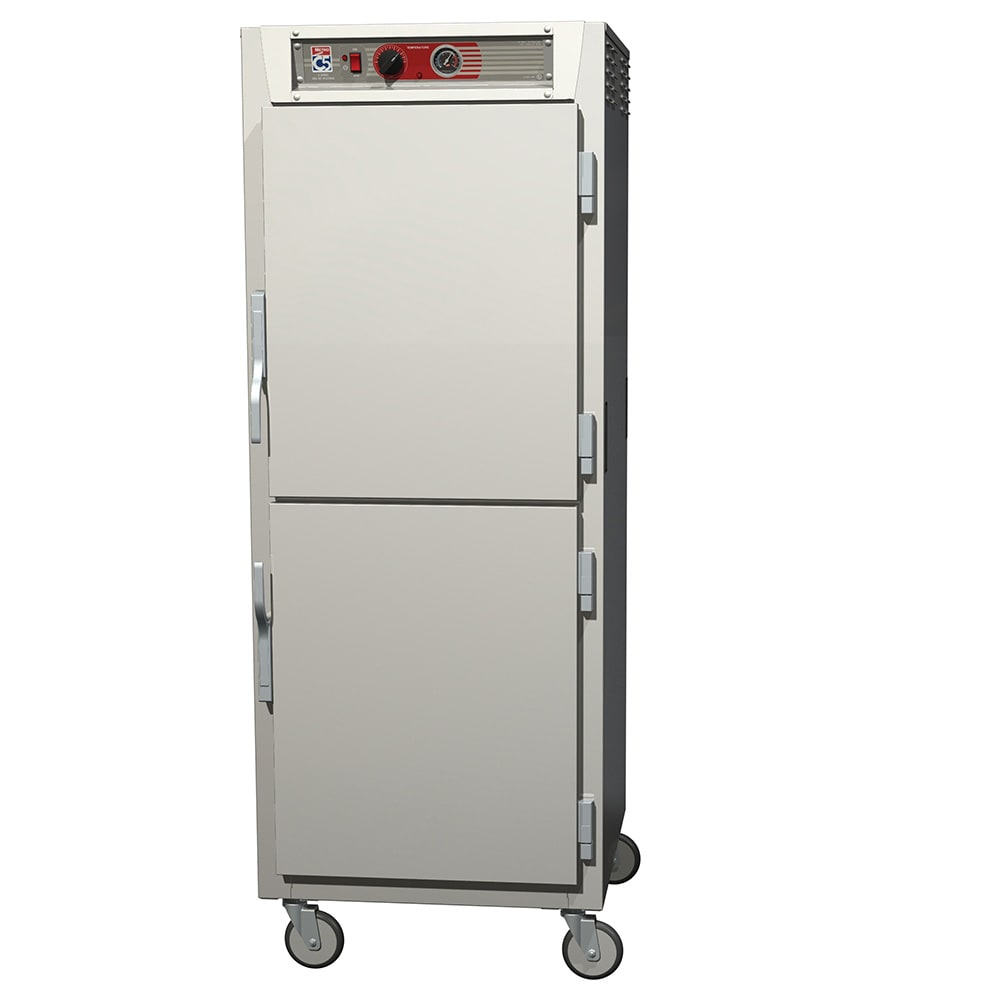

Metro C569-NDS-U Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v
Non Returnable Item
Metro C569-NDS-U Description
The Metro C569-NDS-U C5™ 6 Series heated holding cabinet has quick heat up and heat recovery with a ducted heating system that's thermostatically controlled. A passive-humidity water pan system prevents food from drying out by adding humidity to the cabinet's interior environment. This cabinet is made of aluminum and has 2 1⁄2-inch-thick fiberglass insulation that retains heat. Its full-length, dutch-style doors are solid and fully insulated with a double-panel construction. The doors are double hinged with lift-off hinges that are self-closing, and high-strength magnetic latches keep the doors closed and have a lever-action release.
To simplify cleaning, the Metro C569-NDS-U heated holding cabinet's controls are mounted on top. An analog thermometer displays the temperature of the cabinet at all times, even when the cabinet is turned off or unplugged. Universal slides hold pans inside the cabinet and are made of nickel-chrome wire. The 1⁄4-inch-diameter slides are adjustable in 1 1⁄2-inch increments. The pan capacity for pans measuring 18 inches by 26 inches is 17 while the capacity for pans measuring 12 inches by 20 inches by 2 1⁄2 inches is 32. These capacities are based on the standard 18 slide pairs provided.
Product Details
- Part of C5 6 series
- Full-height aluminum cabinet is made for holding hot food
- Fast heat up and recovery time with the thermostatically controlled, ducted heating system
- Passive-humidity water pan system keeps food from drying out by adding humidity to cabinet interior
- Santoprene gasket is mounted on cabinet to keep heat from escaping
- Heating element is thermostatically controlled
- Ball-bearing blower motor
- 4 swivel nickel-plated casters with 5-in. neoprene wheels
- 2 casters have brakes so cabinet stays in place
- Dutch-style solid doors are fully insulated and built with double-panel construction
- 4 polymer handles are built into cabinet for easy transport
- Double-hinged, lift-off hinges are self-closing
- Chrome-plated magnetic pull latch with a lever-action release
- Controls are mounted on top of cabinet to prevent damage
- Analog thermometer continuously displays cabinet temperature even if off or unplugged
- 200-degree-F maximum temperature
- Electromechanical temperature control
Universal Wire Slides
- Universal nickel-chrome wire slides
- 1⁄4-in.-dia. slides
- Slides are adjustable in 1 1⁄2-in. increments
- 18 slide pairs are provided but can hold 35
- Holds 17 pans measuring 18 in. x 26 in.
- Holds 32 pans measuring 12 in. x 20 in. x 2 1⁄2 in.
Dimensions & Utilities
- 29 1⁄8 in. W x 32 5⁄8 in. D x 74 3⁄4 in. H
- 16 A, 2000 W
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C569-NDS-U within the 48 contiguous states.
From The Manufacturer
C5™ 6 Series Heated Holding Cabinet, mobile, full height, insulated, solid Dutch doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire slides (17) 18" x 26" or (32) 12" x 20" x 2-1/2" pan capacity, 3" OC (adjustable on 1-1/2" increments), 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C569-NDS-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Aluminum |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 32.63 |
| Door Design | Half |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 74.75 |
| Hertz | 60 |
| kW | 2 |
| Load Type | Reach In |
| No. of Doors | 2 |
| Pan Capacity | 17 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 6 Series |
| Size | Full Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Special Features | Passive Humidity |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 29.13 |
| Weight | 275.00 |
Compare to Similar Items
| Attributes |
Metro C569-NDS-U Metro C569-NDS-U Full Height Insulated Mobile Heated Cabinet w/ (17) Pan Capacity, 120v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $3,240.00 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | Typically ships in 2 - 3 weeks | |
| Application | Heat & Humidity | Heat Only |
| Type | Insulated | Insulated |
| Size | Full Height | Full Height |
| Pan Capacity | 17 | 17 |
| No. of Doors | 2 | 2 |
| Door Design | Half | Half |
| Door Type | Solid | Solid |
| Load Type | Reach In | Reach In |
| Sections | 1 | 1 |
| Slide Type | Universal | Fixed Wire |
| Slide Spacing (in) | 3 | 3 |
| Width (in) | 29.13 | 27.63 |
| Depth (in) | 32.63 | 31.5 |
| Height (in) | 74.75 | 71 |
| Controls | Dial | Dial |
| Voltage | 120 | 120 |
| Warranty | 1-year Parts & Labor | 1-year Against Manufacturing Defects |
