Home > Shop By Vendor > TRUE Refrigeration > True Underbar Refrigeration > True Club Top Direct Draw Beer Dispensers
Home > Equipment > Restaurant Refrigeration > Underbar Refrigeration > Club Top Direct Draw Beer Dispensers

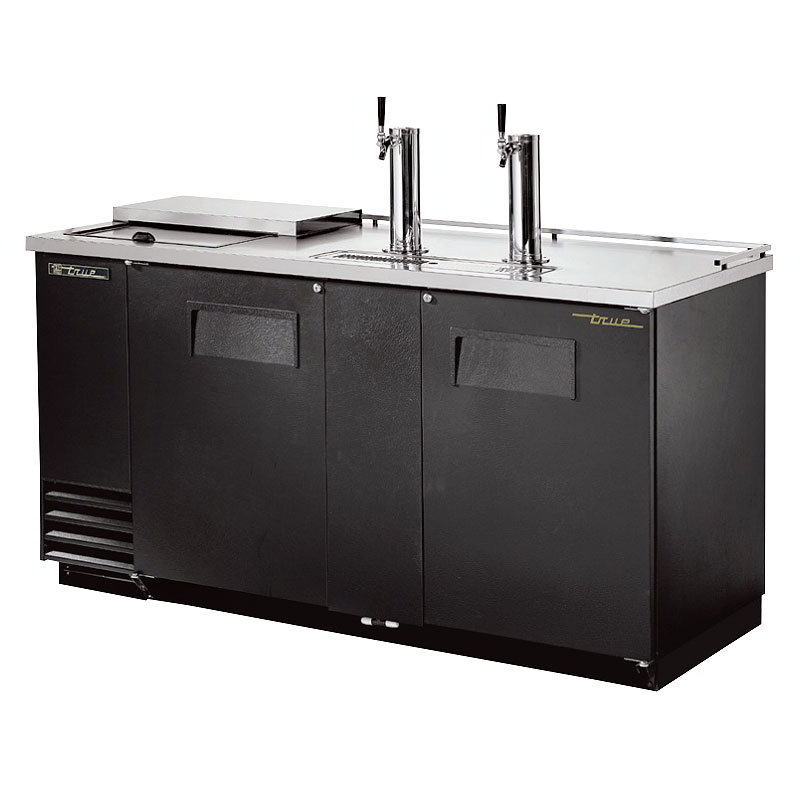

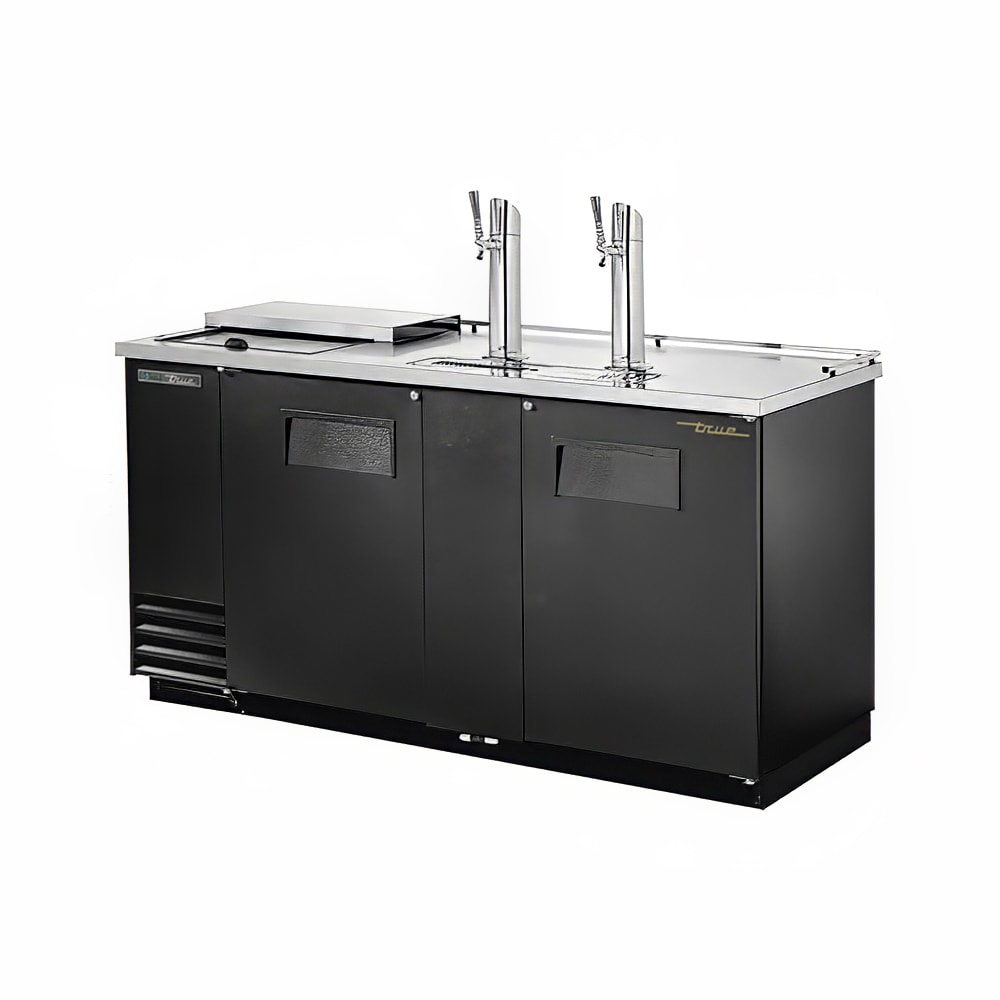

70inClub Top Draft Beer Cooler, 2 Faucets, 2 Door, Holds 3 Kegs

Click for Larger Image
Download Product Spec Sheet Download the Adobe Acrobat Reader software to view the spec sheet

70inClub Top Draft Beer Cooler, 2 Faucets, 2 Door, Holds 3 Kegs
Retail Price: $5,625.00
KaTom Price: $1,991.25
You Save: 65%
Manufacturer: True
Model #: 598-TDD3CT
Priced Per: Each
Shipping Weight: 365.00 pounds
Quantity in Basket: none

Quantity:

TDD Series - Underbar Refrigeration

True® direct draw beer dispensers are designed with enduring quality and value. Our commitment to using the highest quality materials and oversized refrigeration assures colder product temperatures and years of trouble free service.



Photo May Include Optional Accessories!
TYPICALLY SHIPS IN 5 - 10 DAYS


 Club Top Direct Draw Beer Dispensers
HALF barrels: 3
doors: 2


MODEL TDD3CT
STANDARD FEATURES:
  • Easy to reach refrigerated storage area under slide top for chilled product or glasses.
  • Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
  • Exterior - heavy duty, wear resistant laminated black vinyl front and sides. Matching black aluminum back. All stainless steel counter top.
  • Interior - 300 series stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF approved for pre-packaged and bottled product.
  • Adjustable, heavy duty PVC coated shelf.
  • 3" (77 mm) diameter stainless steel insulated beer column. Cold air is directed into beer column to reduce foaming and maximize draft beer profits.
  • Anodized aluminum glass rail provides convenient storage for glasses on top.
  • Entire cabinet structure and solid door are foamed-in-  place using high density, CFC free, polyurethane insulation.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • 230 - 240V / 50 Hz.
  • 6" (153 mm) standard legs.
  • 6" (153 mm) seismic/flanged legs.
  • 21/2" (64 mm) diameter castors.
  • 4" (102 mm) diameter castors.
  • Double headed draft standard.
  • Two-way tapper manifold.
  • Three-way tapper manifold.
  • Draft cap.
  • Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.



ROUGH - IN DATA

This Product is recommended for commercial purposes only.
Specifications subject to change without notice.
Chart dimensions rounded up to the nearest 1/8"
Model Doors Half
Barrels
 		 Dimensions
(Inches)		 HP Volts PH Amps NEMA
Config.		 Cord
Length
(total feet)
 		 Crated
Weight

L D H
TDD3CT 2 swing 3 69 1/8 27 1/8 38 1/2 1/3 115/60/1   8.5 5-15P 7 365

* Height does not include 13 3/4" for draft arm.




WARRANTY
One year warranty on all parts
and labor and an additional 4
year warranty on compressor.
(U.S.A. only)
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

Model Elevation Side Plan 3D
TDD2 TFHY03E TFHY03S TFHY03P TFHY033



View Installation Manuals for True Refrigeration Equipment
