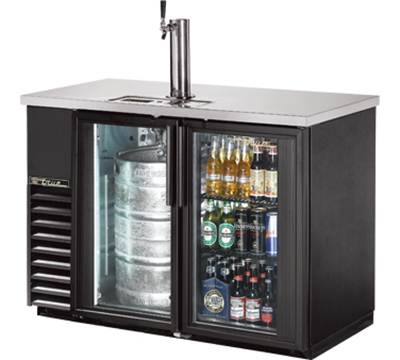

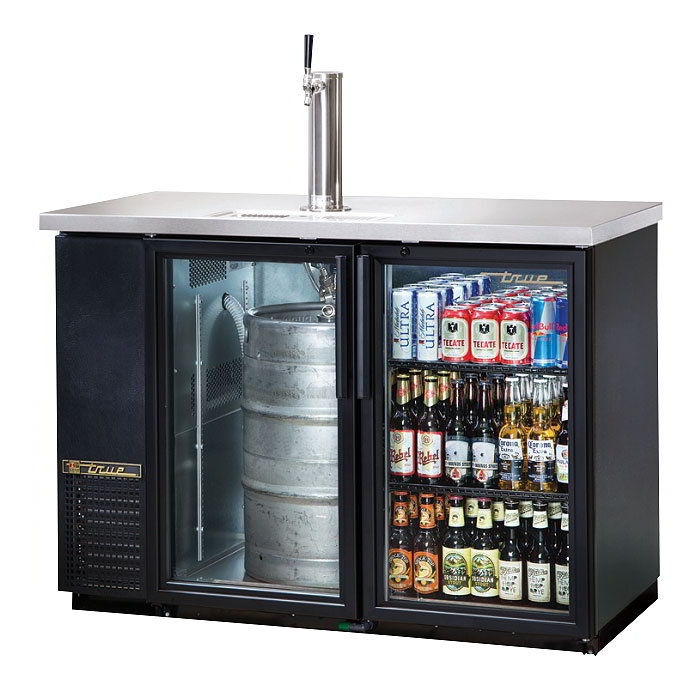

24in Draft Beer Cooler, 1 Faucet, 2 Shelves/Glass Doors, Holds (2) 1/2 Keg

TDB Series - 24" Back Bar True® oversized and balanced refrigeration system with extra large evaporator performs in the hottest, most humid climates. Excellent for all tropical beach bars. Photo Includes Optional Accessories! THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS   Direct Draw Beer Dispenser GLASS DOOR half barrels: 1 12 OZ. CANS: 245 MODEL TDB2448G STANDARD FEATURES: Oversized, factory balanced, refrigeration system holds 33° F to 38° (.5° C to 3.3° C). Exterior - heavy duty, wear resistant laminated black vinyl front and sides. Matching black aluminum back. All stainless steel counter top. Interior - 300 series stainless steel floor with 1/2" (13 mm) reinforced lip and heavy gauge galvanized steel walls. NSF approved for pre-packaged and bottled product. 3" (77 mm) diameter stainless steel insulated beer column. Cold air is channeled directly into beer column to reduce foaming and maximize draft beer profits. Positive seal doors. Entire cabinet structure and solid doors are foamed- n-place using high density, CFC free, polyurethane insulation. Features, Options & Specifications Subject to Change Without Notice. OPTIONAL ACCESSORIES: Up-charge and lead times may apply. 6" (153 mm) standard legs. 6" (153 mm) seismic/flanged legs. 21/2" (64 mm) diameter castors. 4" (102 mm) diameter castors. One liter or wine bottle organizers. 12 oz. (355 ml) bottle organizers. Double headed draft column. Two-way manifold. Three-way manifold. Draft cap. Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.     CLICK IMAGE FOR LARGER VIEW   ROUGH - IN DATA This Product is recommended for commercial purposes only. Specifications subject to change without notice. Model Doors Capacity # of Shelves Dimensions (Inches) HP Volts PH Amps NEMA Config. Cord Length (total feet)   Crated Weight   Left Door 1/2 Barrels Right Door 12 oz. Cans L D H * TDB2448G 2 1 245 2 49 1/8 24 1/4 35 5/8 1/3 115/60/1   7.6 5-15P 7 290 *Add 15 1/4" to height for draft arm. Depth does not include 1 3/8" for door handle     WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only) SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Model Elevation Right Plan 3D TDB2448G

View Installation Manuals for True Refrigeration Equipment
