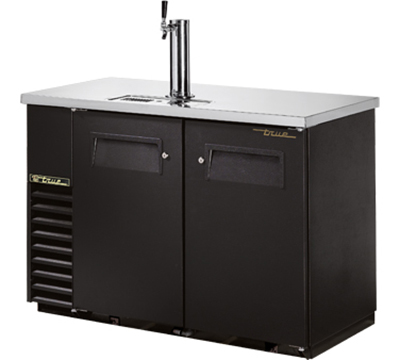

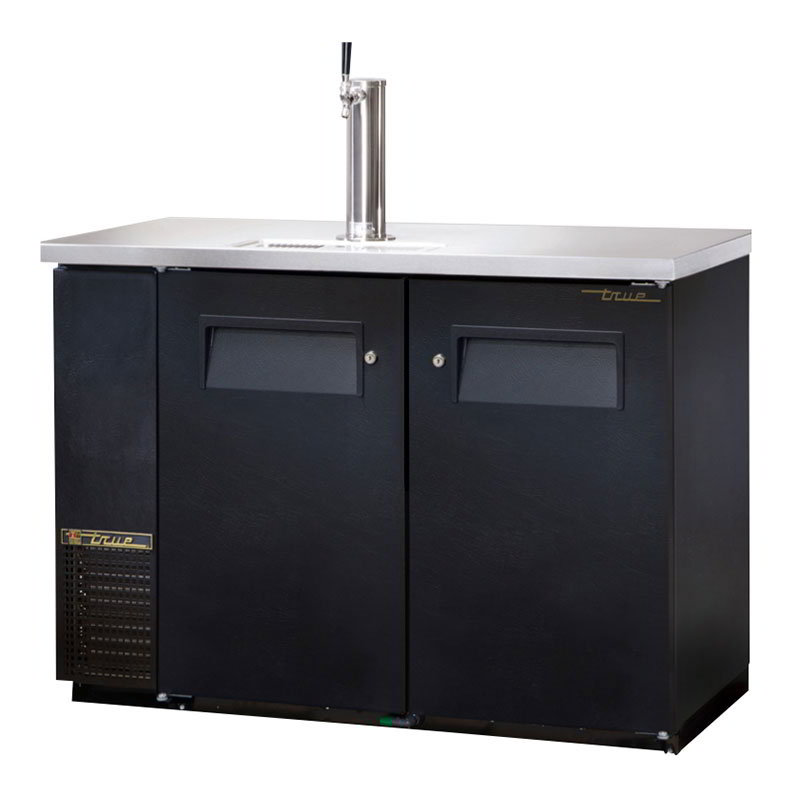

True TDB-24-48-HC 49" Draft Beer System w/ (1) Keg Capacity - (1) Column, Black, 115v

The True TDB-24-48-HC draft beer system's exterior is constructed of laminated black vinyl in the front and sides with a back made of matching aluminum. It has a stainless steel countertop for preparing beverages and is equipped with an insulated stainless steel beer column that channels cold air to reduce foaming. Able to accommodate (144) 12-ounce cans and one half-barrel keg, the interior has a stainless steel floor with a 1⁄2-inch lip and galvanized steel walls. The cabinet and doors are insulated with polyurethane that is foamed in place to lock in cold air.

The True TDB-24-28-HC draft beer system has two black vinyl doors that are laminated and lined with galvanized steel. A door threshold protector prevents the cabinet from being damaged while loading and unloading product, and adjustable, PVC-coated shelves maximize storage space. With a self-contained capillary tube system that uses R290 hydrocarbon refrigerant, the refrigeration system maintains temperatures between 33 and 38 degrees Fahrenheit. To speed up maintenance, the condensing unit can be accessed from behind and conveniently slides out.

Product Details

• Accommodates (144) 12-oz. cans and 1 half-barrel keg
• Exterior has a laminated black vinyl front and sides with a matching aluminum back
• Stainless steel countertop can be wiped clean quickly
• Interior has a stainless steel floor with a 1⁄2-in. lip and galvanized steel walls
• 3-in.-diameter insulated beer column is constructed of stainless steel and channels cold air to reduce foam production
• 2 laminated black vinyl doors lined with galvanized steel
• 12-in. recessed handle has been foamed in place on each door
• Door threshold protector prevents cabinet from being damaged by loading and unloading product
• 1-piece magnetic door gaskets seal doors to frame
• Standard door lock helps prevent theft
• Cabinet and doors are insulated with foamed-in-place polyurethane
• 2 adjustable, PVC-coated wire shelves are adjustable in 1⁄2-in. increments
• 4 chrome-plated shelf clips per shelf
• Fluorescent interior lighting provides additional product visibility

Refrigeration System

• Electronically commutated evaporator and condenser fan motors move air consistently to reduce energy waste
• Capillary tube system holds refrigerant and is self-contained
• Uses R290 hydrocarbon refrigerant
• Condensing unit is accessible from behind the front grille and slides out to aid in maintenance
• Temperature holding range: 33-38 degrees F
• Evaporator is coated in corrosion-resistant epoxy

Dimensions & Utilities

• Shelves: 17 3⁄4 in. W x 18 in. D

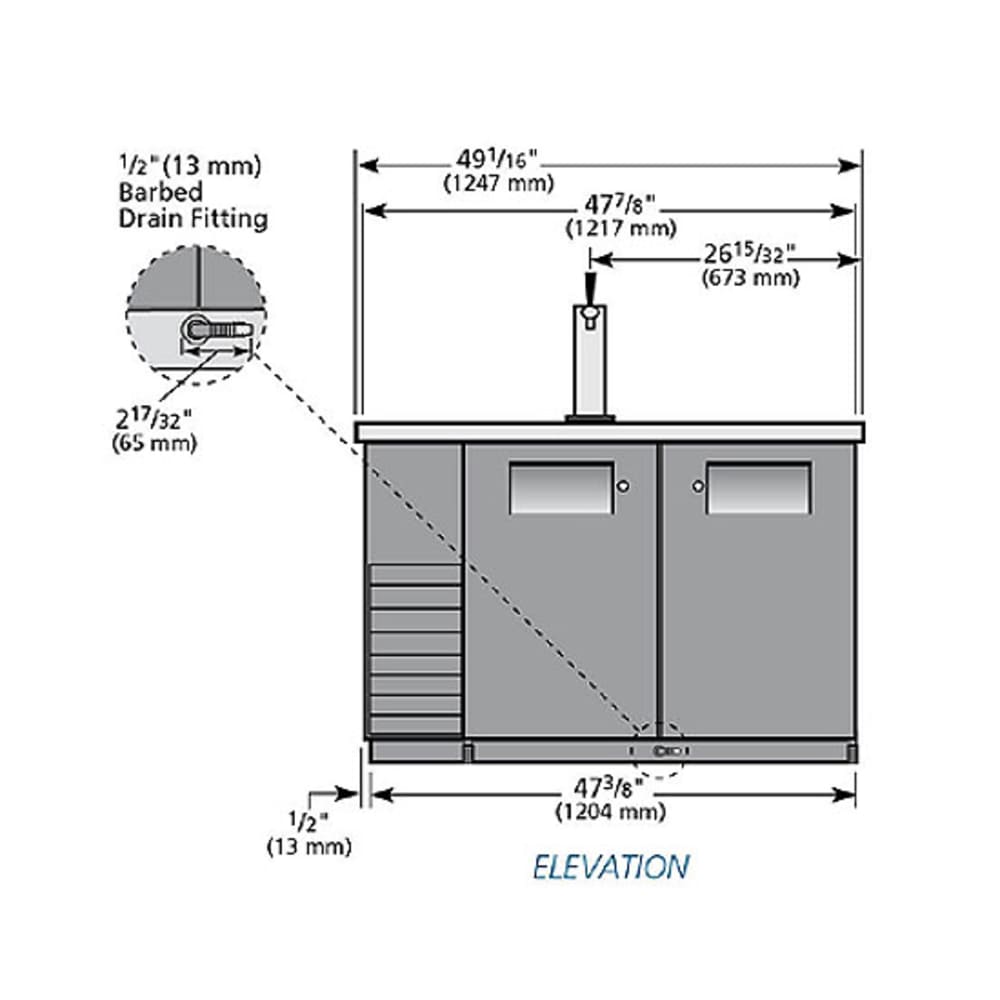

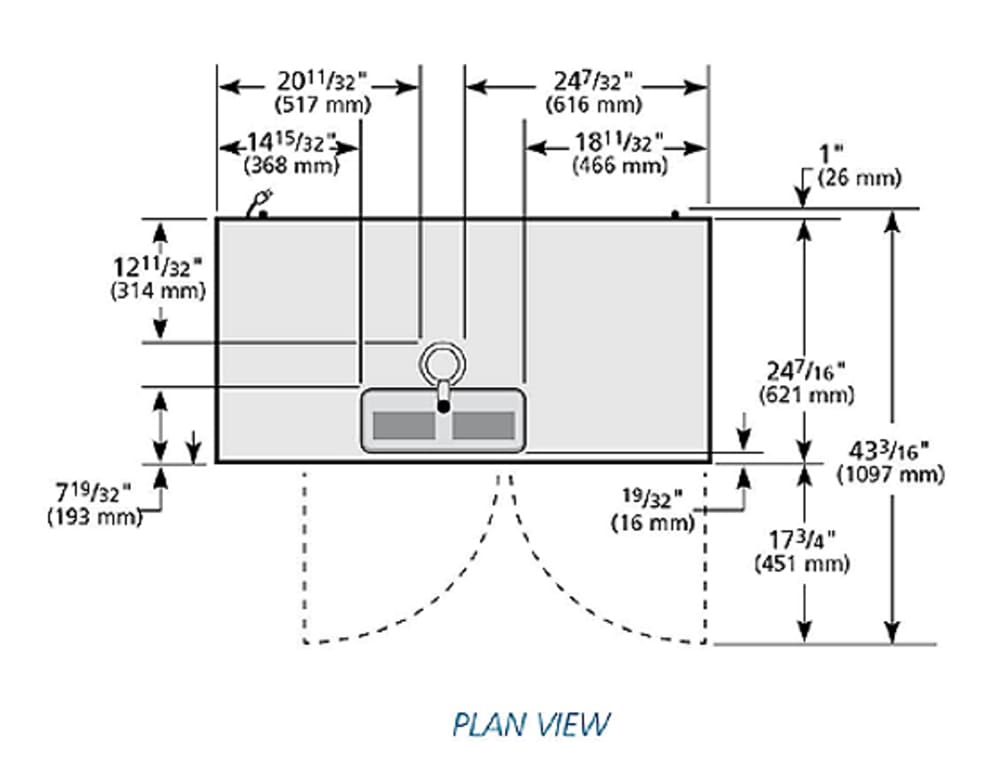

• Overall: 49 1⁄8 in. W x 25 1⁄2 in. D x 51 3⁄8 in. H
• 2.1 A, 1⁄5 HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
