	TAC Series - Vertical Merchandiser

True® air curtain merchandisers are designed with enduring quality that protects your long term investment.

Photo May Include Optional Accessories!

THIS PRODUCT TYPICALLY SHIPS IN 5-10 DAYS.

Latest Color & Sign Offerings

AIR CURTAIN REFRIGERATOR
25.5 Cubic Feet
4 Shelves

MODEL TAC30

STANDARD FEATURES:

Designed using the highest quality materials and components to provide the user with colder product temperatures and lower utility costs in an attractive merchandiser that brilliantly displays food and beverages.
Large, open front allows easy access to display levels and places maximum attention on merchandising.
Oversized, factory balanced, refrigeration system holds 33° F to 38° F (.5° C to 3.3° C).
Exclusive, reversing condenser fan motors reduce maintenance costs and optimize cabinet performance.
Durable and permanent non-peel or chip white vinyl exterior with white aluminum interior and 300 series stainless steel floor and deck pans.
Entire cabinet structure is foamed-in-place using high density, CFC free, polyurethane insulation.
Adjustable, heavy duty PVC coated shelves.

Features, Options & Specifications Subject to Change Without Notice.

OPTIONAL ACCESSORIES: Up-charge and lead times may apply.
230 - 240V / 50 Hz. 21/2"(64mm) diameter castors. Black exterior. Stainless steel exterior. Black interior liner with black shelves. Pricing strips. Night shade. Night cover.	Vandal cover. White locking security cover. Black/Bronze locking security cover. Silver locking security cover. Remote cabinets (condensing unit supplied by others), consult factory technical service department for BTU information.

CLICK IMAGE FOR LARGER VIEW

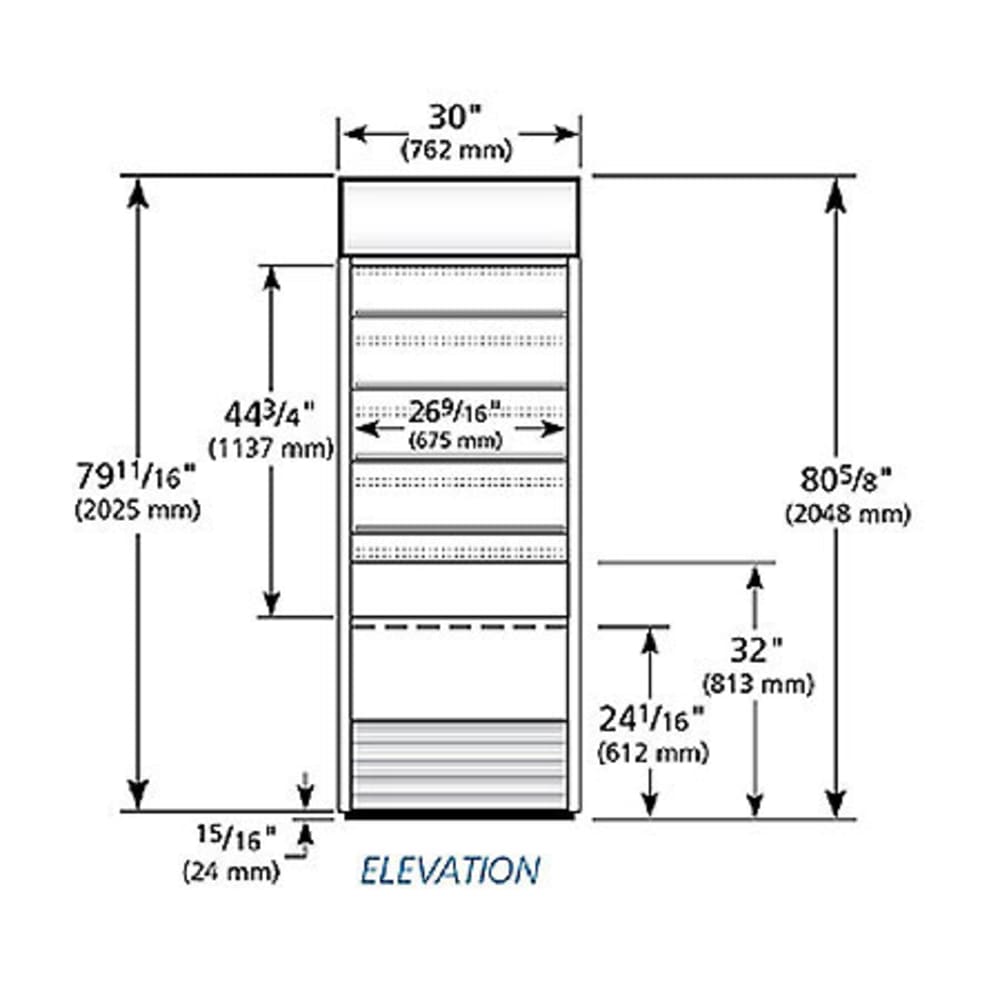

ROUGH - IN DATA

This Product is recommended for commercial purposes only.

Specifications subject to change without notice
Chart dimensions rounded up to the nearest 1/8" (millimeters rounded up to next whole number).

Model	Capacity (Cu. Ft.)	# of Shelves	Dimensions (Inches)			HP	Volts	Amps	NEMA Config.	Cord Length (total feet)	Crated Weight
			L	D	H *
TAC30	25.5	4	30	30 1/8	80 5/8	1/2	208-230/60/1	13.4	6-15P	9	355
Black vinyl exterior available at no extra charge. Stainless steel exterior available (up-charge applies). Black aluminum interior available (up-charge applies). TAC models are designed to operate in an environment where temperature and humidity do not exceed 75 degrees F and 55% respectively. Unit should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Unit should not be installed in direct sunlight.

WARRANTY One year warranty on all parts & labor and an additional 4 year warranty on compressor. (U.S.A. only)	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		Model	Elevation	Right	Plan	3D
	SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE		TAC48	TFD025E	TFD025S	TFD025P	TFD0253
