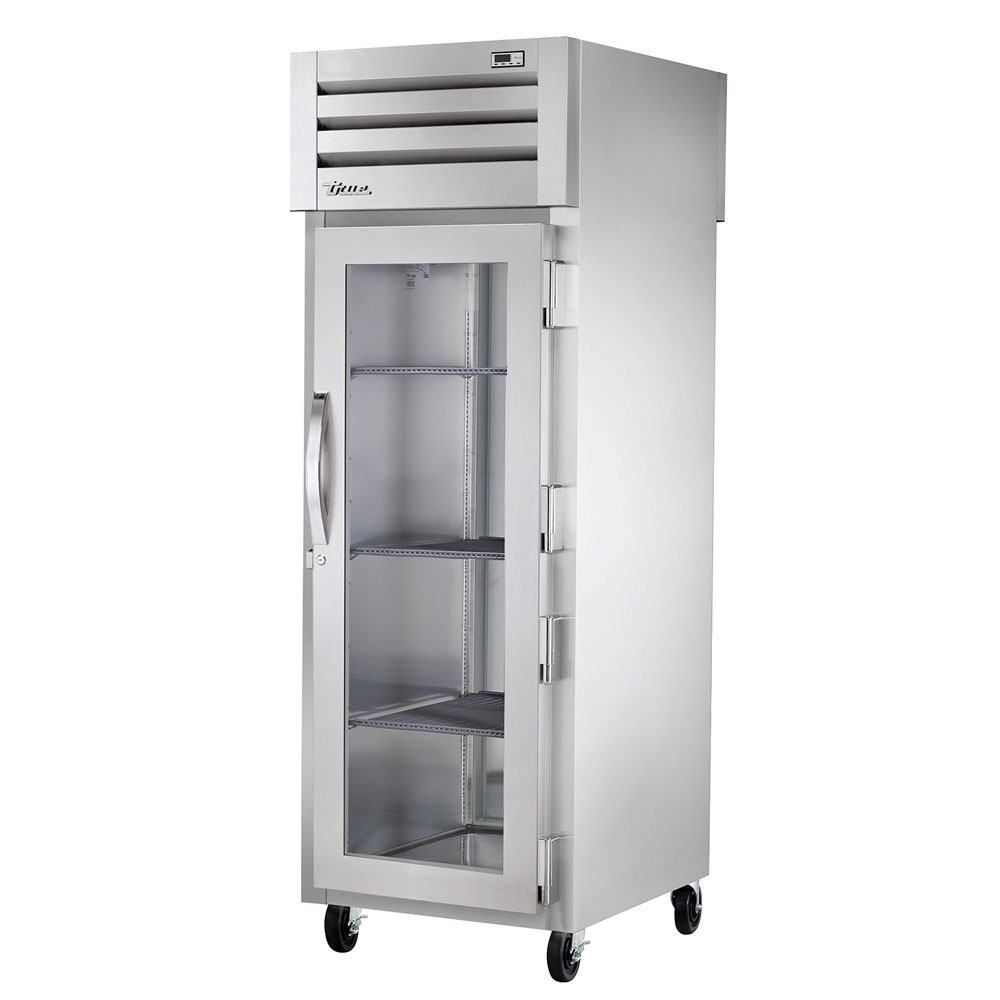

True STA1RPT-1G-1S-HC 27 1/2" One Section Pass Thru Refrigerator, (1) Glass Door, (1) Solid Door, Right Hinge, 115v

KaTom #: 598-STA1RPT1G1S • MPN: STA1RPT-1G-1S-HC
  • 598-STA1RPT1G1S Primary Thumbnail Image
Free Shipping Item
Lowest Price Guarantee

$9,239.77 /Each

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Christian Clark User Image
Ask a Foodservice Equipment Specialist

True Refrigeration STA1RPT-1G-1S-HC Description

This True STA1RPT-1G-1S-HC pass-thru refrigerator has a rear door made of stainless steel and a front door made of double-pane, low-e glass that is thermal insulated. To prevent loss of cold air, the front door's transparency provides product visibility when it is closed. Both doors close on their own to save energy and can stay open past 120 degrees to help with loading and unloading. Their magnetic gaskets have a one-piece construction and prevent cold air from seeping out. Ergonomic and secure, the doors have metal handles and bolt-style locks that protect contents and prevent theft.

With its pass-thru design, this refrigerator's front and back can be accessed simultaneously. Constructed of stainless steel and aluminum, it resists corrosion and dents, and its walls are foamed with polyurethane insulation for structure and temperature retention. The interior is illuminated with LED lights, ensuring products are easy to find. For movement, castors with a 5-inch diameter and locks are installed. Three interior chrome-plated wire shelves hold product.

This True STA1RPT-1G-1S-HC one-section refrigerator keeps user-set temperatures between 33 and 38 degrees Fahrenheit. Its self-contained capillary tube system uses and controls the flow of R290 hydrocarbon refrigerant. Since they are electronically commutated, the condenser and evaporator fan motors efficiently distribute air without using much energy or creating a lot of heat. To reduce the amount of dirt and debris that gets sucked in, the refrigeration system is mounted on top.

Dust and debris is blown off the condensing coil using a self-cleaning mechanism. When the compressor powers on, the condensing fan motor reverses direction for 20 seconds, optimizing the coil and the unit's overall performance. For ideal results, employees should continue to perform routine maintenance.

Pass-Thru Design
One-section double-door unit (glass front, solid rear) enables easy loading and unloading from both sides.
Glass Front Door
Full-view glass on front provides visibility of contents without opening the cabinet.
Hydrocarbon Refrigerant
Uses R290 refrigerant for efficient cooling with lower environmental impact.
Top-Mounted Compressor
Condensing unit mounted on top keeps food zone clear and simplifies service access.
Stainless Exterior
Stainless front and aluminum sides deliver durable finish in busy operations.
Aluminum Interior
Clear-coated aluminum liner resists stains and is easy to clean.

  • Stainless steel and aluminum construction resists corrosion and dents
  • Polyurethane foam insulates the cabinet and adds structure
  • Temperature is displayed in Fahrenheit or Celsius
  • Interior is brightened with LED lights
  • 5-in.-diameter castors enable movement
  • 3 chrome-plated wire shelves hold product

  • Front door is made of low-e, thermal-insulated glass that is double paned
  • Rear door is solid and made of stainless steel
  • 4 cam-lift hinges per section attach doors to cabinet
  • Bolt-style locks prevent theft
  • Metal handles provide a sturdy grip
  • Magnetic gaskets can be removed without tools and prevent cold-air leaks
  • Can stay open 120 degrees or close on their own

  • Self-contained capillary tube system regulates the flow of R290 hydrocarbon refrigerant
  • Temperature holding range: 33-38 degrees F
  • Evaporator and condenser fan motors are electronically commutated to efficiently circulate air
  • Dirt removed from condensing coil using a reverse condensing fan motor
  • Mounted on top, away from food zone and floor debris
  • Epoxy-coated evaporator resists corrosion
  • User can set temperatures with electronic controls

  • 27 1⁄2 in. W x 39 1⁄8 in. D x 84 1⁄8 in. H
  • 3.8 A, 1⁄4 HP
  • 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on True Refrigeration STA1RPT-1G-1S-HC within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

SPEC SERIES® Refrigerator, pass-thru, one-section, (1) glass door front, (1) stainless steel door rear, locks, cam-lift hinges, digital temperature control, (3) chrome shelves, LED interior lights, stainless steel front & sides, aluminum interior, 5" castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified

Warranty Icon
7-year Parts & Labor; 7-year Compressor

True Refrigeration STA1RPT-1G-1S-HC Specifications
