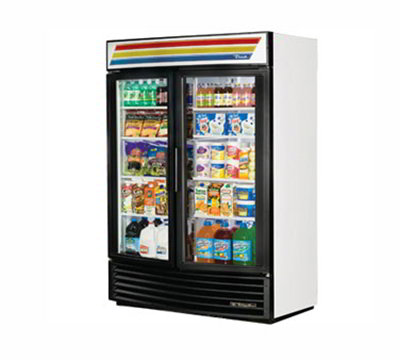

Radius Front Refrig Merchandiser, 2 Section/Glass Doors, 8 Shelves, 49 cu ft

MODEL GDM49RF

• Oversized and balanced, environmentally friendly 134A refrigeration system - holds 33F to 38F.
• White laminated vinyl exterior (rosewood, walnut and black vinyl also available ).
• White, vinyl coated aluminum interior and 300 series stainless steel bottom (NSF approved).
• Integrated door light.
• Bottom mount compressor.
• Slide out compressor can be serviced easily and accessed by a single repairman.
• Positive seal, torsion type closure system, self-closing doors.
• Adjustable vinyl coated wire shelves.
• Epoxy coated evaporator.
• Fluorescent interior lighting.
• Double pane thermal insulated glass.
• Foamed-in-place polyurethane high density cell insulation.
• GDM-14RF standard with 5/16" diameter appliance rollers.
• 1 year parts & labor warranty (USA).
• 5 year compressor warranty.

CABINET CONSTRUCTION:

• Durable and permanent non-peel or chip rosewood vinyl exterior.

• White, vinyl coated aluminum interior cabinet liner with 300 series stainless steel floor. Construction of liner in accordance with NSF standards.

• Cabinet mounted on a welded, galvanized frame rail, painted for additional corrosion protection.

• Safety shielded fluorescent interior lighting.

DOORS:

• Double pane thermal insulated glass. Doors extend full view of product.

• Adjustable, self closing, torsion type closure system. The face of each door fitted with a 12" long handle.

INSULATION:

• Entire cabinet structure insulated using foamed-in-place CFC free polyurethane foam.

SHELVING:

• Adjustable vinyl coated wire shelves. Shelves capable of supporting up to 250 lbs.

• Full height shelf support pilasters, with double oblong holes on 1/2" centers. Pilasters made of the same material as cabinet interior. Four (4) chrome plated, stainless steel shelf clips to be included for each shelf.

REFRIGERATION SYSTEM:

• Refrigeration system factory balanced using CFC free 134A refrigerant.

• Bottom mounted condensing unit - easy access for maintenance.

• Factory pre-engineered capillary tube system with oversized condenser and evaporator to reduce product pull down time and to consistently maintain 33F to 38F interior cabinet temperature. (non-adjustable capillary tube system superior to problematic expansion valve)

• Evaporator - epoxy coated at the time of manufacture to eliminate the potential of corrosion.

OPTIONAL FEATURES / ACCESSORIES:
 (Up-charge and lead times may apply.)

• Gravity-feed TrueTrac shelving.

• Wine racks.

• Novelty Baskets.

• Additional shelves available.

• Barrel locks available.

• Available with 2 1/2" diameter castors.

• Available with stainless steel or optional seismic legs.

• Wide variety of sign panels available.

ELECTRICAL CHARACTERISTICS:

• Unit completely pre-wired at factory, and ready for final connection to a 115/60/1 phase - 15 amp dedicated outlet.  A cord and plug set to be included.

• A sole use circuit is required.


CLICK IMAGE FOR LARGER VIEW

Clearance Required For Coolers (USA)
Sides Inches/mm	Sides Inches/mm	Sides Inches/mm
0 / 0	1 / 26	1 / 26
