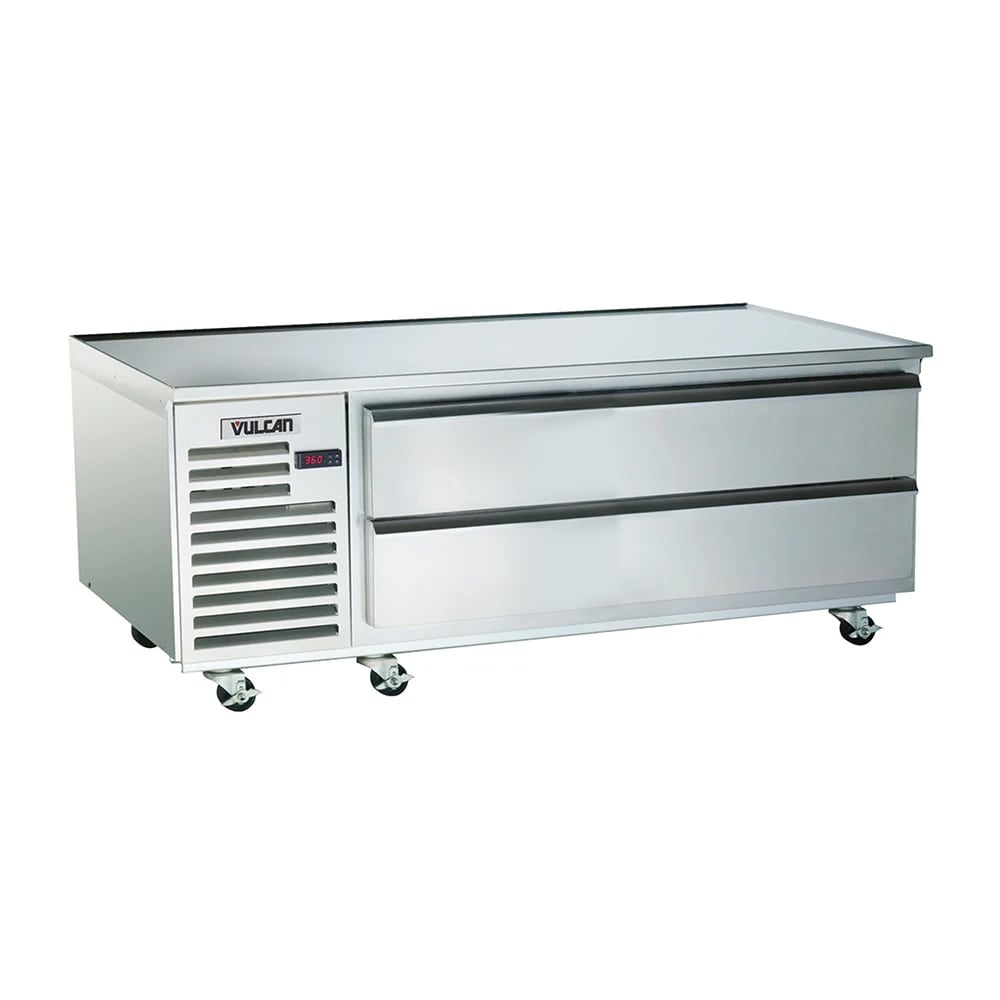

Vulcan ARS60 60" Achiever Chef Base w/ (2) Drawers - 115v
Typically ships in 6 - 8 weeks
Retail Price: $41,514.00
$15,567.69 /Each
Vulcan ARS60 Description
The Vulcan ARS60 Achiever chef base features two drawers designed to hold 12-inch by 20-inch by 6-inch pans. Each drawer includes 14-gauge stainless steel slides with 2-inch diameter rollers for smooth operation. Magnetic snap-in gaskets create a secure seal, and both drawers self-close automatically or remain open as needed to support loading during busy prep periods.
Refrigeration is handled by a left-mounted, self-contained system that uses R404A refrigerant to maintain internal temperatures between 34 and 38 degrees Fahrenheit. The Vulcan ARS60 Achiever chef base includes an INTELA-TRAUL microprocessor control system with a digital display, alarms, and data output. It also features a marine edge top, front-breathing design, and service panels on three sides for accessibility.
- Achiever Series
- Stainless steel top, front, sides, and interior
- Galvanized steel back and bottom
- Marine edge top
- (2) drawers with magnetic snap-in gaskets
- 14-ga. stainless steel drawer slides with 2-in. diameter rollers
- Self-closing drawers with stay-open feature
- Controllable anti-condensate drawer perimeter heaters
- INTELA-TRAUL microprocessor control system with RS485 data port
- Front, side, and rear access panels
- 4-in. heavy-duty casters in adjustable channels
- Uses R404A refrigerant
- Off-cycle evaporator defrost
- Automatic, non-electric condensate evaporator
- Condenser filter
- Self-contained system does not require plumbing
- Overall dimensions: 60 in. W x 34 in. D x 26 in. H
- 4.7 A, 1/3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan ARS60 within the 48 contiguous states.
From The Manufacturer
Achiever Refrigerated Base, 60", self-contained, one-section, (2) drawers, marine top, stainless base, top, front, sides, interior, galvanized back, 3" heavy duty casters, magnetic drawer gasket, 1/3 hp, 115v/60/1, 4.7 amps
Vulcan ARS60 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Depth (in) | 34 |
| Height (in) | 26 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Drawers | 2 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R404A |
| Sections | 1 |
| Series | Achiever |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 60 |
| Weight | 340.00 |
