Vulcan ARS36 36" Achiever Chef Base w/ (2) Drawers - 115v
Typically ships in 6 - 8 weeks
Retail Price: $38,074.00
$14,277.68 /Each
Vulcan ARS36 Description
Stainless steel construction forms the base, top, front, sides, and interior of the Vulcan ARS36 Achiever chef base with drawers providing durability in high-demand kitchens. A left-mounted, self-contained refrigeration system uses R404A refrigerant to maintain temperatures between 34 and 38 degrees Fahrenheit. The two drawers accommodate 12-inch by 20-inch by 6-inch pans and include magnetic gaskets for a secure seal.
The Vulcan ARS36 Achiever chef base with drawers includes galvanized back and bottom panels to increase structural strength, and a marine edge top helps contain spills. The INTELA-TRAUL control system features a digital display, alarms, and RS485 data output. Drawer slides include 14-gauge stainless steel construction and 2-inch diameter rollers. Each drawer self-closes and remains open when needed.

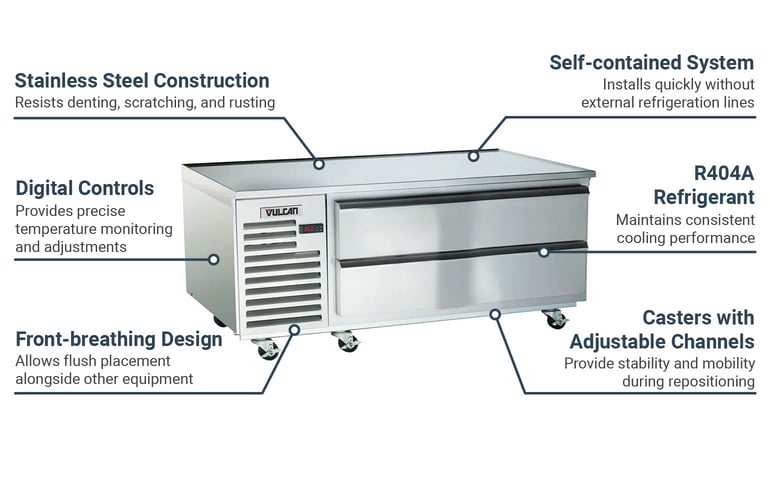

- Achiever Series
- Stainless steel top, front, sides, and interior
- Marine edge top
- Galvanized back and bottom
- Magnetic snap-in drawer gaskets
- Self-closing drawers
- 14-ga. stainless steel drawer slides with 2-in. rollers
- INTELA-TRAUL control system includes a digital display and RS485 data port
- Controllable perimeter heaters
- Front, rear, and side access panels streamline service
- Mounted on 4-in. heavy-duty casters set in adjustable channels
- Foamed-in-place polyurethane insulation
- Uses R404A refrigerant
- Off-cycle evaporator defrost helps manage ice buildup
- Automatic, non-electric condensate evaporator improves efficiency
- Condenser filter protects against dust accumulation
- Self-contained system installs without requiring external plumbing
- Overall dimensions: 36 in. W x 34 in. D x 26 in. H
- 6.7 A, 1/3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with NEMA 5-15P
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan ARS36 within the 48 contiguous states.
From The Manufacturer
Achiever Refrigerated Base, 36", self-contained, one-section, (2) drawers, marine top, stainless base, top, front, sides, interior, galvanized back, 3" heavy duty casters, magnetic drawer gasket, 1/3 hp, 115v/60/1, 6.7 amps
Vulcan ARS36 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Depth (in) | 34 |
| Height (in) | 26 |
| Hertz | 60 |
| NEMA | 5-15P |
| Number of Drawers | 2 |
| Phase | 1 |
| Product | Chef Bases |
| Product Type | Commercial Refrigeration |
| Rating | Best |
| Refrigerant | R404A |
| Sections | 1 |
| Series | Achiever |
| Type | Refrigerator |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; 7-year Compressor |
| Width (in) | 36 |
| Weight | 290.00 |
