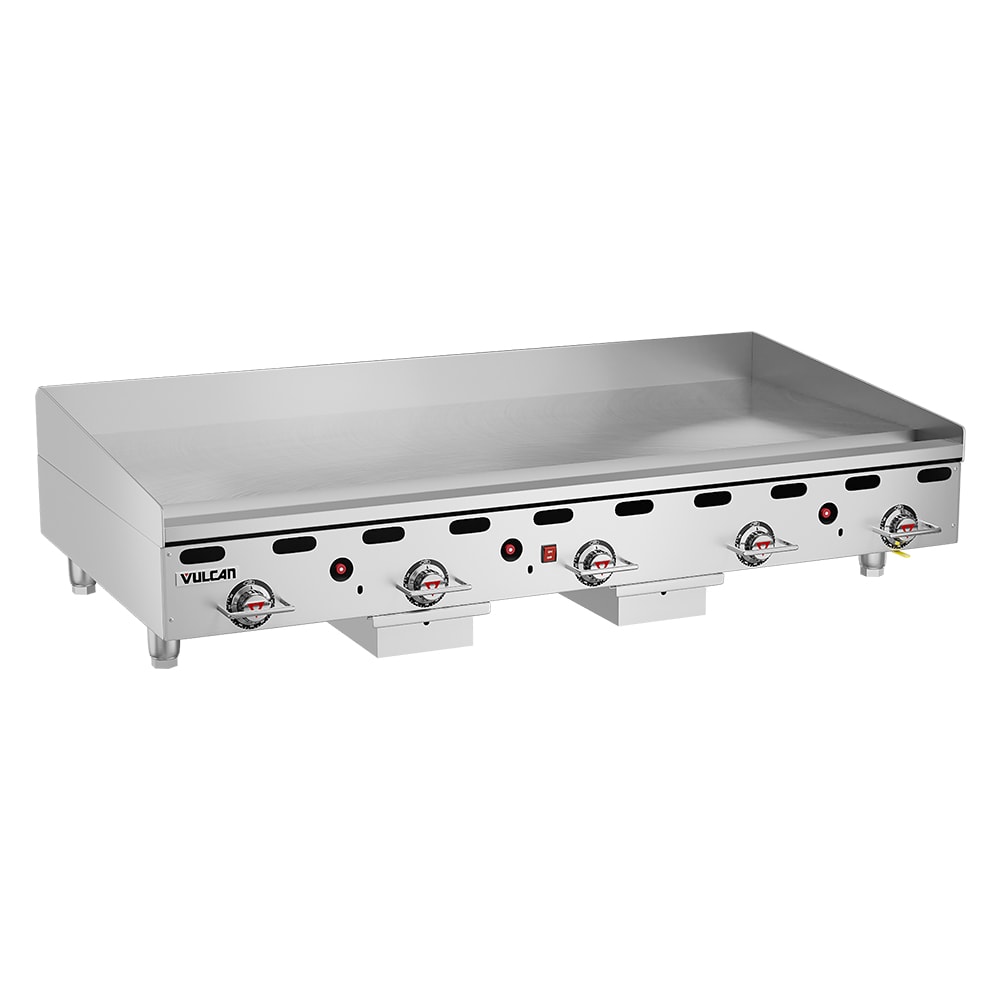

Vulcan 960RX 60" Gas Griddle w/ Thermostatic Controls - 1" Steel Plate, Liquid Propane
Typically ships in 2 - 3 weeks
Retail Price: $35,881.00
$14,770.00 /Each
Selected Gas Type: Liquid Propane
Vulcan 960RX Description
For durability against exposure to grease and salt, the Vulcan 960RX countertop gas griddle’s front, sides, and front top ledge are stainless steel. To add support and prevent sagging, it’s designed with a sturdy welded chassis frame made of stainless and aluminized steel. Withstanding frequent temperature changes without cracking or warping, the griddle’s plate is made of 1-inch-thick polished steel. The unit can be set to temperatures between 200 to 550 degrees Fahrenheit and has five individual burners to create separate cook zones.
Blocking hot grease from adjacent walls and counters, the Vulcan 960RX countertop griddle has a 4-inch rear splash that wraps around the unit into tapered side splashes. If the pilot light is extinguished, the griddle’s pilot light safety valve interrupts the flow of gas to prevent leaks. Directing hot grease runoff into the unit’s two grease drawers, its chute and gutter are fully welded, and each drawer can store as much as 6 quarts of grease to extend time between cleanings. To fit most spatulas, the griddle’s gutter measures 3 1⁄2 inches wide.
- Countertop model
- Sides, front, and front top ledge are stainless steel
- Temperature range:200-550 degrees F
- 5 aluminized steel U-shaped burners
- Dual electric and manual burner ignition
- Pilot safety valve prevents gas leaks if pilot light goes out
- Multiple cook zones with individually controlled burners
- Manual gas inlet shut-off
- Snap-action thermostats are embedded
- Chromed thermostat knob guards resist corrosion
- Heat transfer resisted with stay-cool bull-nose design
- Polished griddle plate is 1 in. thick to resist warping
- Splatter guard with tapered edges wraps around back and sides
- 12-ga. backsplash is 4 in. high
- Grease gutter is 3 1⁄2 in. in width
- Fully welded chute and gutter contain grease without leaking
- 6-qt. stainless steel grease drawer stores grease runoff
- Durable chassis frame made of aluminized and stainless steel is fully welded
- Griddle bottom with heat shields reduces heat transfer
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 135,000 BTU
- Cook surface: 60 in. W x 24 in. D
- Overall: 60 in. W x 31 1⁄2 in. D x 15 1⁄4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3⁄4 in.
- Uses LP gas
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vulcan 960RX within the 48 contiguous states.
From The Manufacturer
Heavy Duty Griddle, countertop, liquid propane gas, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 135,000 BTU, CSA, NSF
Vulcan 960RX Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vulcan |
| Application | Heavy Duty |
| BTU / Burner | 27,000 |
| Control Spacing (in) | 12 |
| Controls | Thermostatic |
| Cooking Area Depth (in) | 24 |
| Cooking Area Width (in) | 60 |
| Gas Type | LP |
| Heat | Gas |
| NEMA | 5-15P |
| Overall Width (in) | 60 |
| Plate Material | Steel |
| Plate Thickness (in) | 1 |
| Product | Griddles |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Series | 900RX Series |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 60 |
| Weight | 670.00 |
