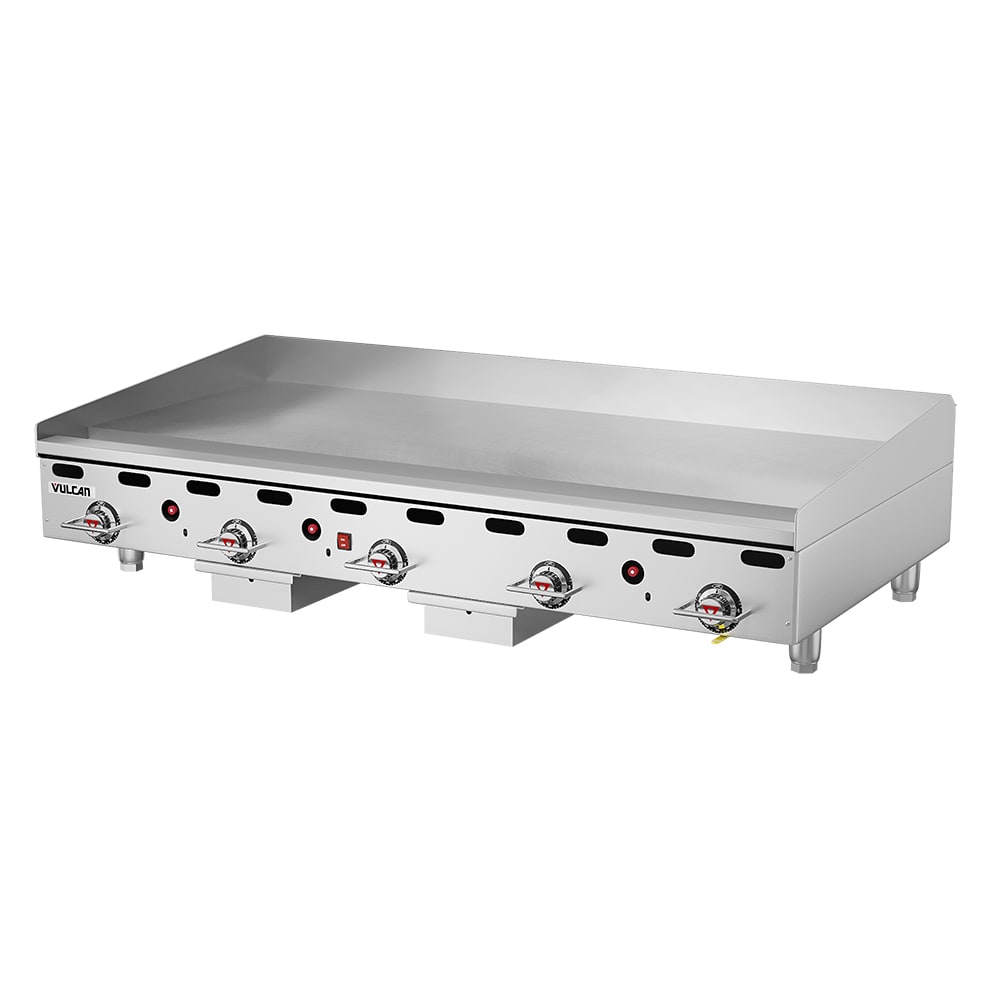

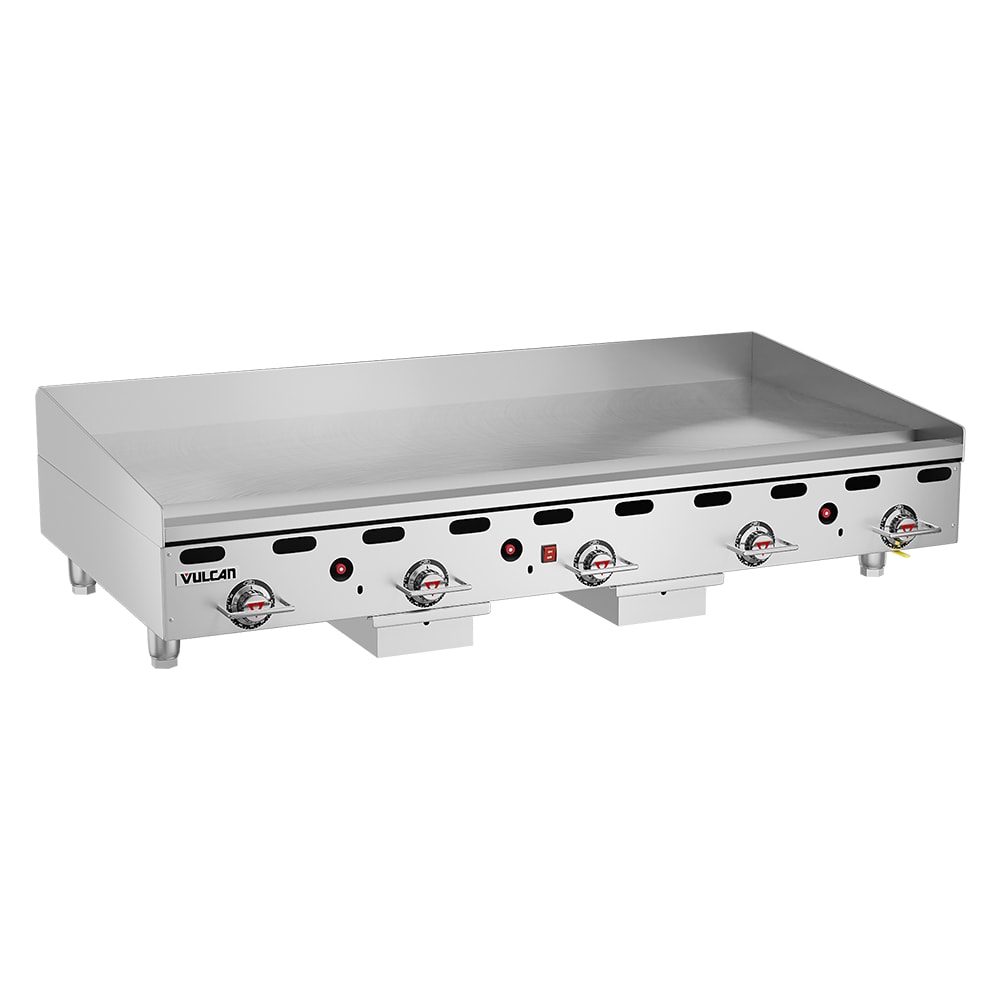

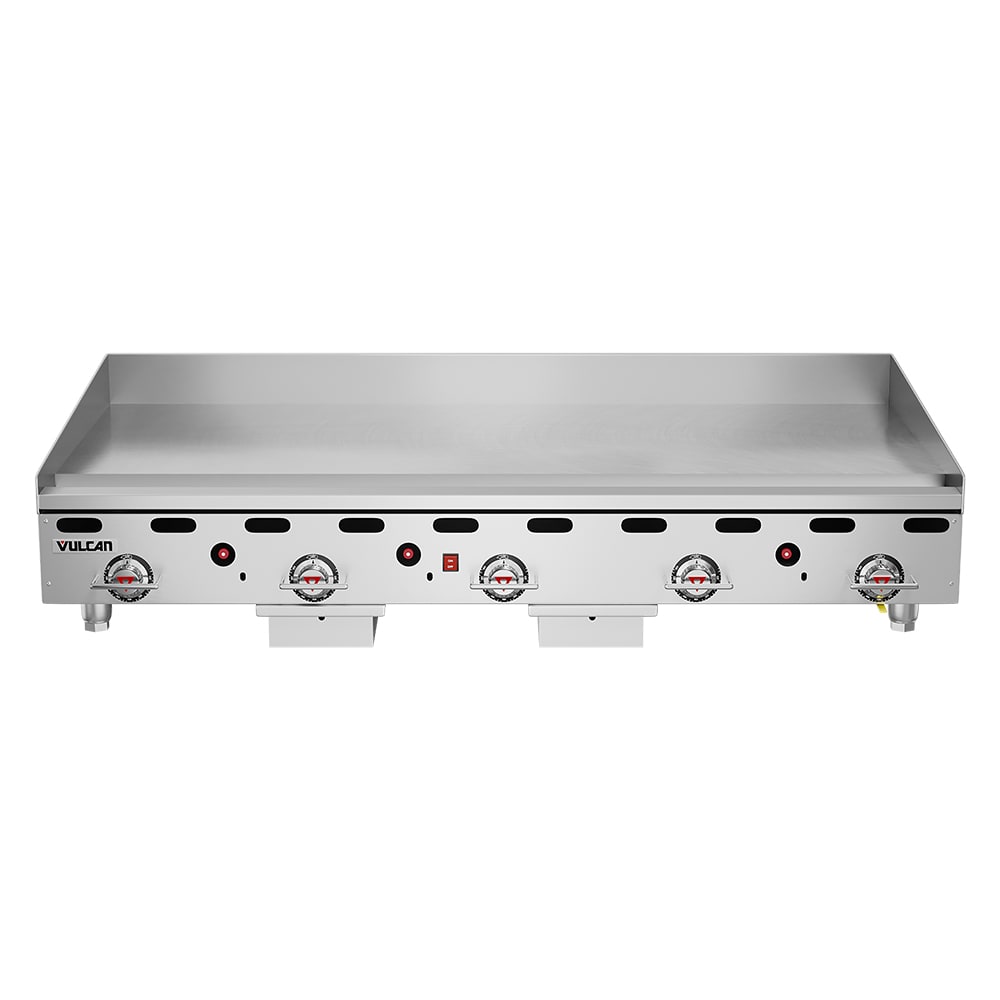

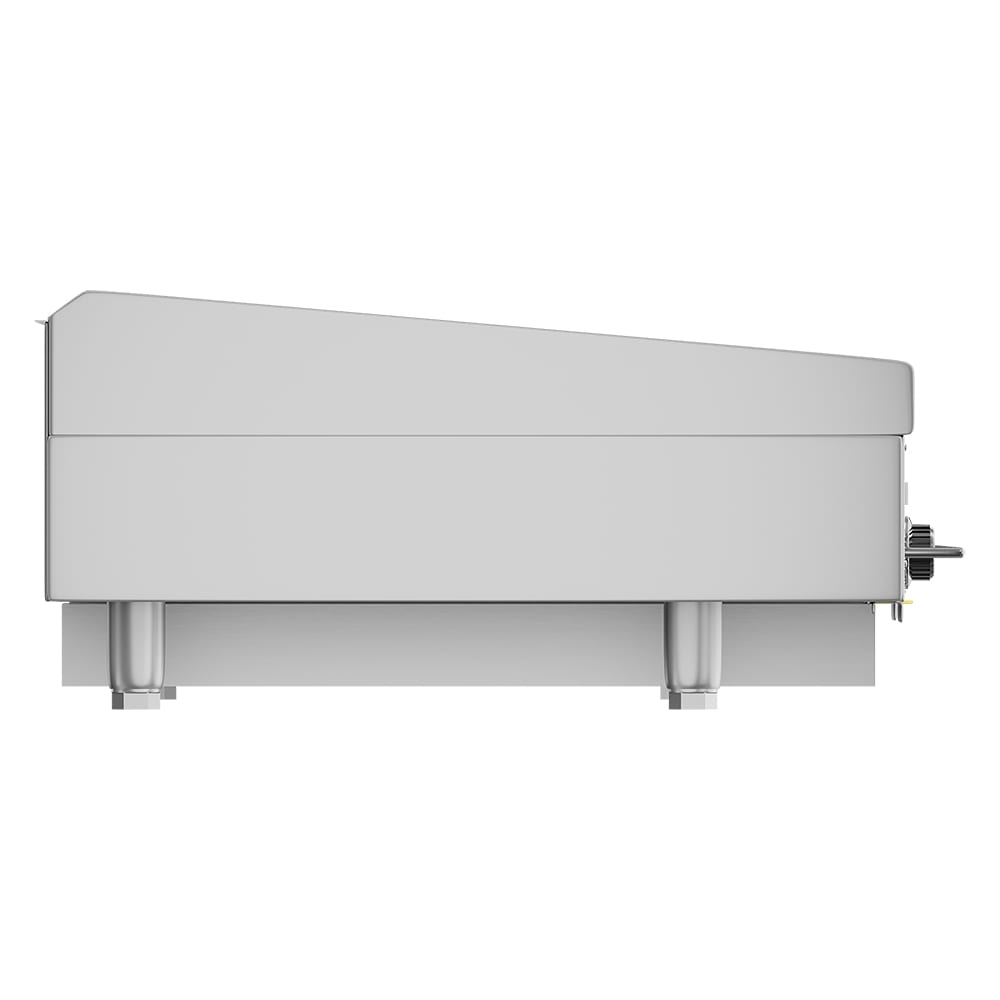

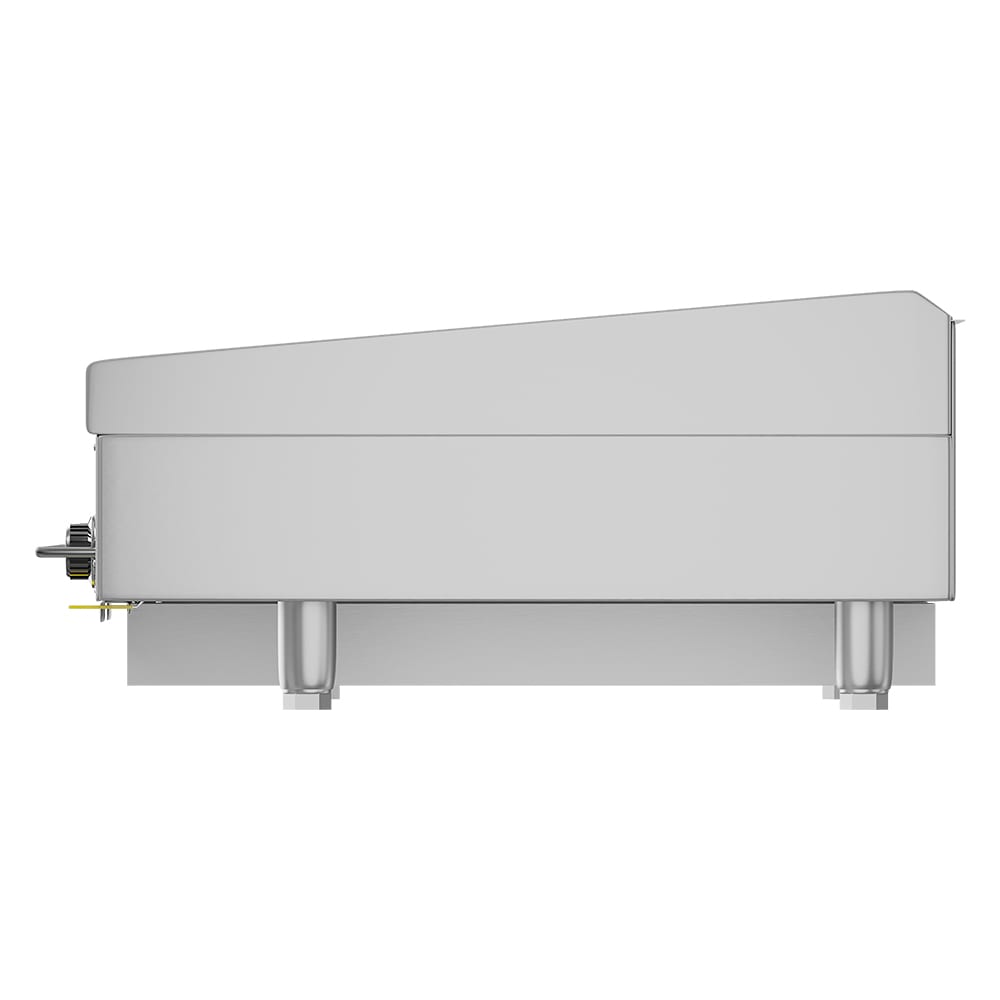

Vulcan 960RX 60" Electric Griddle - Thermostatic, 1" Steel Plate, NG

Image may not depict product color, inclusions or accessories.

KaTom #: 207-960RXNG • MPN: 960RX NG

Ships Free

Extended Lead Time (14+ days)

(0 reviews)Write a Review
Price: $7,235.00

Image may not depict product color, inclusions or accessories.

Vulcan 960RX Description


The Vulcan 960RX griddle’s stainless steel sides, front, and front top ledge provide durability and corrosion resistance. Five U-shaped burners heat the 1-inch-thick griddle plate; this thickness withstands the stress of heating up and cooling down repeatedly without warping. Since the burners are placed every 12 inches, there is an even heat transfer across the cooking surface. Embedded in each burner, snap-action thermostats offer quick response times and accurate heating at temperatures between 200 and 550 degrees Fahrenheit.

If the pilot extinguishes, the safety valve cuts off gas flow to the pilots and burners, reducing the risk of fires and other accidents. To reduce the risk of burns, the bullnose front on the Vulcan 960RX griddle stays cool to the touch. Tapered side splashes and a 4-inch backsplash minimize countertop messes by containing grease and food particles. There is a spatula-sized grease gutter, fully-welded grease chute, and two 6-quart grease drawers to make cleanup simple.

Product Details

  • Natural gas powered
  • Polished steel griddle plate withstands stress from repeatedly heating up and cooling down since it is 1-in. thick
  • Heats with 5 U-shaped aluminized steel burners
  • 12 in. of spacing between each of the burners provides even heat transfer
  • Each burner has a snap-action thermostat embedded in it for accurate heating and response times
  • Thermostats adjust the temperature from 200-550 degrees F
  • Chrome thermostat knobs give the griddle a professional look
  • Safety valves shut off the flow of gas to the pilots and burners when the pilot extinguishes
  • Bullnose front stays cool to reduce burn risks
  • 4-in. backsplash and tapered side splashes minimize countertop messes
  • 312-in.-wide grease gutter is sized to fit spatulas
  • Grease chute has a fully welded construction to stop grease movement
  • (2) 6-qt. grease drawers have stainless steel surfaces to make it easy to clean
  • Front top ledge, front, and sides are made of stainless steel to resist corrosion
  • Stability is created by the stainless and aluminized steel chassis frame
  • 4-in. legs adjust on uneven surfaces
  • Gas inlet has a manual shut-off valve
  • 34-in. rear gas connection and gas pressure regulator
  • 135,000 BTU
  • 120 V/50-60 Hz/1 ph, 1 A, NEMA 5-15 plug
  • Overall Dimensions: 60 in. W x 33 in. D x 1514 in. H
  • CSA listed; NSF certified

Heavy Duty Griddle, countertop, NG gas, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, embedded mechanical snap action thermostat every 12", millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4" back & tapered side splashes, 4" adjustable legs, 135,000 BTU, CSA, NSF

*The warranty will not be honored for residential or non-commercial use of any Commercial Equipment.

Vulcan 960RX Specifications

PDF Spec Sheet
Manufacturer Vulcan
Control Thermostatic
Application Heavy Duty
Plate Material Steel
Heat Gas
Gas Type NG
BTU / Burner 27000
Overall Width (in) 60
Cooking Area Depth (in) 24
Plate Thickness (in) 1
Control Spacing (in) 12
Specialty Options Snap Action
Specialty Options Front Grease Trough
Warranty 1 year limited warranty
Overall Depth (in) 31.50
Weight 670.00
Vulcan 960RX Certifications
  • NSF
