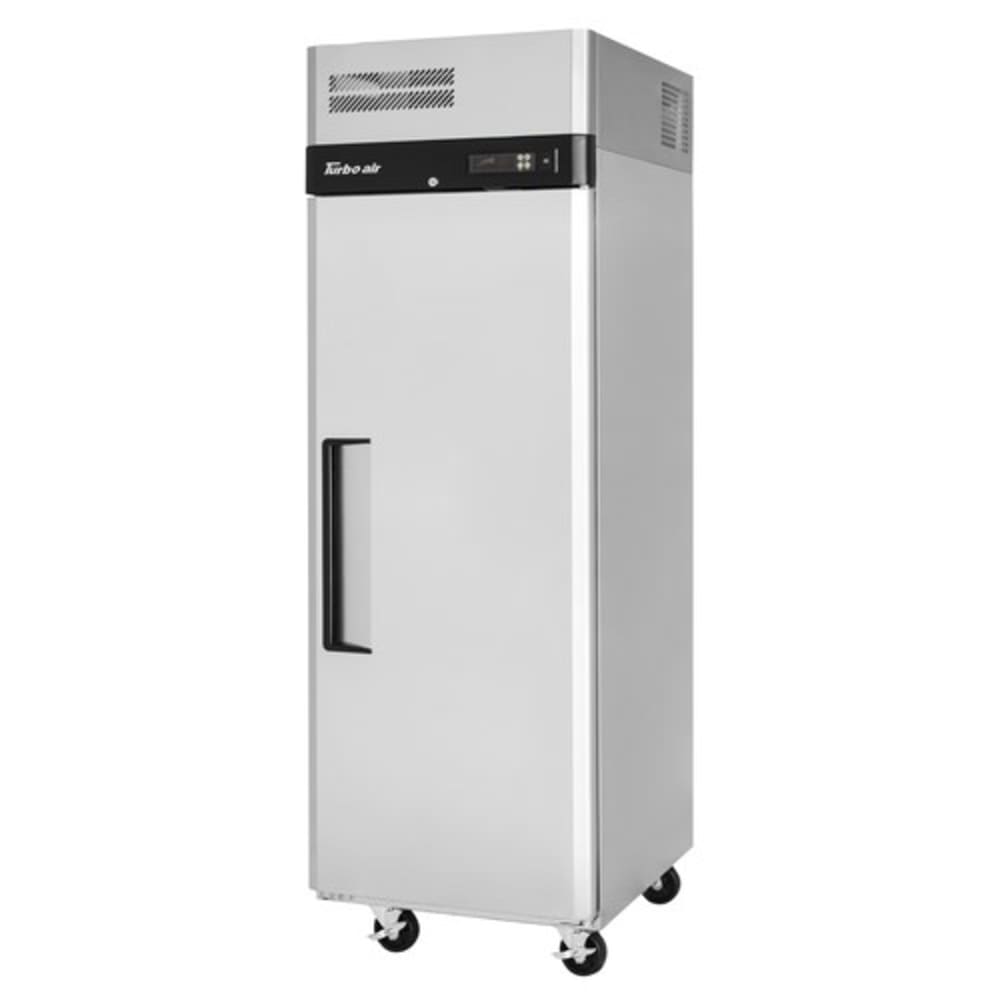

Turbo Air M3F19-1 25" Single Section Reach-In Freezer, (1) Solid Door, 115v

In early 2018, Turbo Air began replacing its models with new ones that are designed to be more efficient and use natural refrigerants. This model has been replaced by the M3F19-1-N. Here are details about that model:

M3 Freezer, reach-in, one-section, 18.7 cu. ft., exterior LED digital thermometer, door open beep, self-diagnostic monitoring system, hot gas condensate system, smart fuzzy defrost, automatic fan motor delays, door pressure release, LED interior lighting, self-cleaning condenser device, (1) hinged solid door with recessed handle & lock, field reversible, (3) PE coated wire shelves, stainless steel front & sides, aluminum interior with stainless steel floor, 4" swivel casters, top mount self-contained compressor, R290 Hydrocarbon refrigerant, 5⁄8 HP, 115v/60/1-ph, 4.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation

The Turbo Air M3F19-1 single-section freezer keeps food products safe by maintaining constant temperatures between -10 and 0 degrees Fahrenheit. An alarm will sound if the door is not sealed shut to protect against air leaks that can allow for variation from that range. A digital display allows for easy monitoring of the temperatures, and programs interpret the condition of the refrigeration system through self-diagnosis, alerting the user if there is an issue. This freezer has a top-mounted compressor and automatic evaporator fan motor delay that turns off intake when the door is open to keep from drawing in warm air from the kitchen. The corrosion-resistant hot gas condensate system promotes evaporation of water in the pan to prevent overflows that can damage other parts of the unit and are a chief cause of costly refrigeration leaks.

Condenser cleaning is one of the most important parts of refrigerator maintenance, since dirty condensers can cause energy consumption increases, compressor failures, health inspection issues, and voiding of manufacturer warranties. The self-cleaning condenser in the Turbo Air M3F19-1 single section freezer uses a mesh filter to catch the dust, and a rotating brush moves up and down that screen to remove debris outward and away from the condenser. That effectively prevents dust from accumulating on the coils, meaning the system can maintain the highest efficiency while reducing the frequency of manual cleanings.

Product Details

• Single-section reach-in freezer
• Features a self-cleaning condenser that maintains energy efficiency and prevents system failure
• Mesh filter prevents dust from reaching into the condenser coil fins
• Rotating brush cleans accumulated dust off the mesh filter 2-3 times a day
• An alarm sounds if the door is not sealed shut, protecting against food spoilage from air leaks
• Digital display allows for easy monitoring of temperatures
• Programs interpret the condition of refrigeration systems through self-diagnosis
• Features a smart automatic defrost system
• Automatic evaporator fan motor delay stops the fan from drawing warm air from the kitchen into the cabinet when the door is open
• Condensate system surfaces are specially treated to resist corrosion
• Hot gas condensate system promotes evaporation to reduce the risk of refrigerant leakage caused by rust
• Stainless steel exterior; galvanized steel top, bottom, and back
• Exterior corners and edges have been rounded to reduce the risk of injury
• Pressure-relief door is designed to eliminate vacuum pressure and allow easier opening
• Top-mounted compressor
• 3 adjustable, heavy-duty, polyethylene-coated wire shelves
• High-density polyurethane insulation provides energy efficiency
• Solid and sturdy grille design resists damage from impacts
• Door locks prevent unauthorized access when equipment is unattended
• Magnetic door gaskets can be removed without tools for cleaning
• LED interior lighting illuminates contents so they are easier to find
• Door has easy-grip handles with self-closing, field-reversible hinges
• 4-in.-dia. swivel casters with locks on the front set
• 20 cu. ft. of storage space
• -10 to 0 degrees F temperature range
• 1⁄3-HP motor
• 115 V/60 Hz/1 ph, 5.3 A, NEMA 5-15 plug and 9 ft. cord included
• Interior Dimensions: 21 5⁄8 in. W x 27 3⁄8 in. D x 58 1⁄4 in. H
• Overall Dimensions: 25 1⁄4 in. W x 31 1⁄2 in. D x 72 1⁄8 in. H (D does not include 2 in. for rear condensate enclosure and H does not include 5 in. casters)
