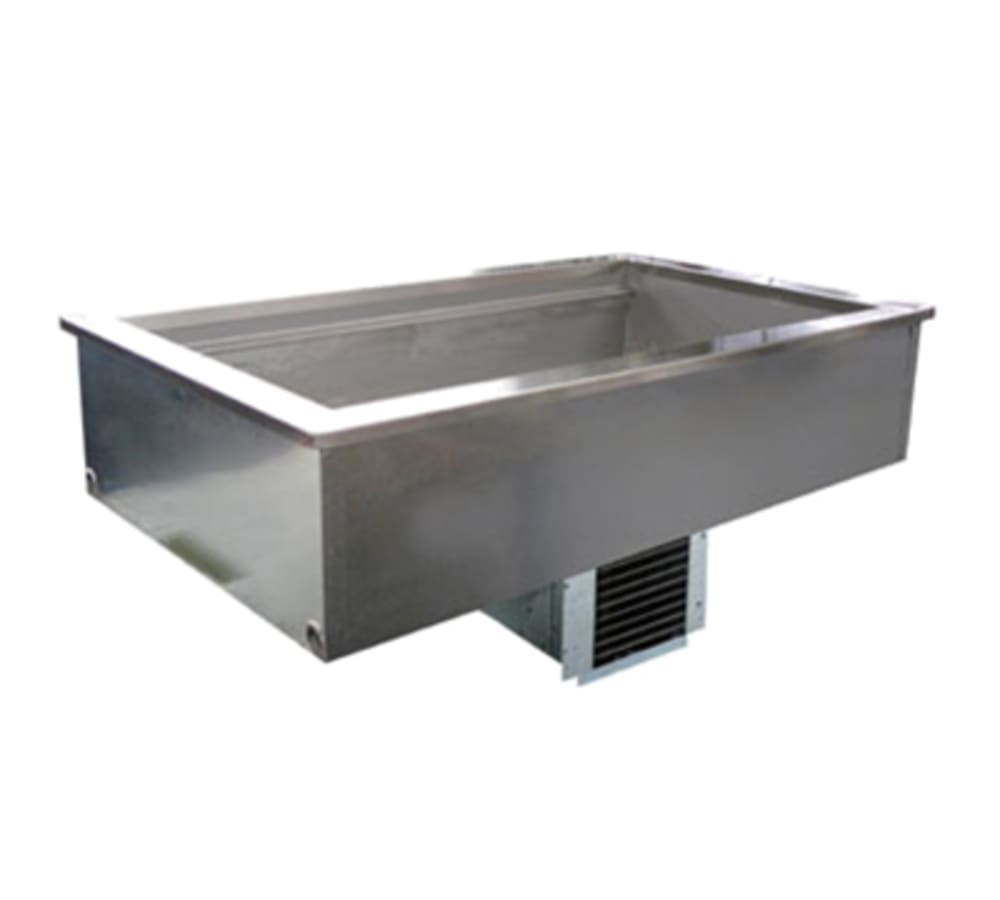

Click to view larger image of 032-N8143B
Image may not depict product color, inclusions, or accessories.
KaTom Price: $2,215.80
Retail Price:You Save: 55%
Priced Per: Each
Sales tax to be added where applicable.
MODEL N8143B - N8100B Series, Self Contained Bloomington Style Refrigerated Cold Pans Drop-In Mechanically Cooled Pan, 3 - Pan Size
Product Shown Model N8156B
Good, Basic, Cold Storage
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS
Standard Features
- Top is one-piece 20-gauge stainless steel. Interior liner is 22-gauge stainless steel and is creased to a 1.00" (2.43cm) diameter drain. A stainless steel holding clip adjusts for pans recessed 2" (5.1cm), or 3" (7.6cm) to accommodate 12" x 20" (30.5cm x 50.8cm) pans 4" (10.2cm) or 6" (15.2cm) deep supplied by others. Product temperatures of 33°F (1°C) to 41°F (5°C) are maintained when 4" (10.2cm) deep pans are recessed 3" (7.6cm) at 86°F ambient room temperature, meeting NSF 7 requirements. Adapter bars are standard.
- Sides and bottom are wrapped with refrigeration lines and insulated with high-density closed-cell polyurethane. Exterior housing is 22-gauge galvanized steel.
- Condensing unit is suspended below the cold pan on a 16-gauge steel frame and uses HFC-134a refrigerant. Temperature control has an ON/OFF position to shut down cold pan. Unit has an 8" (2.4m) cord and NEMA 5-15P plug.
- A stainless steel louver is provided for field installation; cutout dimension is 12" x 23.5" (30.5cm x 59.7cm). A second opening at the rear of the cabinet should be provided at installation to allow for proper air circulation.
Options & Accessories
- Custom sizes and styles
- Single or double service flip-up sneeze guards.
- Relocate compressor
- Mullion fan assembly
- Remote refrigeration (specify refrigerant)
- *220V/50 cycle
* Inclusion of this option will alter the electrical specifications of the unit.
Features, Options & Specifications Subject to Change Without Notice
Photo May Include Optional Accessories!
Product Specifications
- Printable Spec Sheet
- Crated Weight: 173.00 lbs.
- Category: Drop In Refrigeration
- Type: Refrigerated
- 12x20 Pans Held: 3
- Manufacturer: Delfield
- Manufacturer Part Number (MPN): N8143B
MECHANICAL DATA
- Model Number: N8143B
- Number of 12 x 20 Pans: 3
- Ship Weight: 184 lbs
- A: 43.5"
- B: 9.82"
- C: 11.31"
- Counter Cutout Dimensions: 42.50" x 25"
- Voltage: 115-60-1
- H.P.: 1/5
- AMPS: 4.0
- BTU Load: 569
- SYS Cap: 889
- Drain Location: Left
