LiquiTec Drop-in Cool Food Pan, 1-Pan Size

Delfield - Model 032-8118EF

032-8118EF

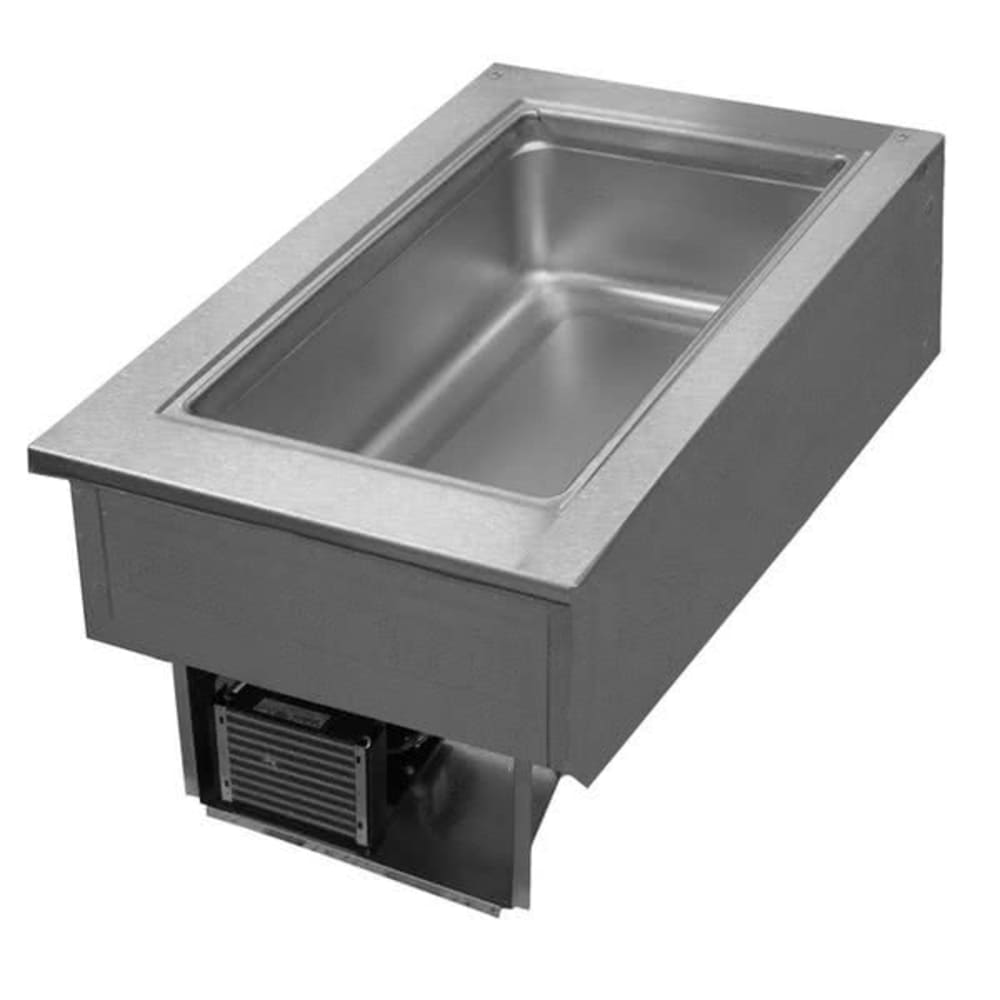

Click to view larger image of 032-8118EF

KaTom Price $2,610.90

Priced Per: Each

Retail Price: $5,802.00

You Save: 55%

Quantity in Basket: none

Read about Huge Tax Savings!

Calculate Shipping

Add product to basket to estimate shipping.

Drop-in Cool Food pan:

LiquiTec″ Drop-In Self-Contained Eutectic Fluid Refrigerated Cold Pans



Product Shown Model 8186-EF

Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS IN 5 - 10 DAYS
Mechanical Data ″ Standard Unit
Model Number 8118-EF
Counter Cutout Dimensions
(Metric)		 17.5" x 25.2"
(78.74 cm x 64cm)
# of 12" x 20" Pans Held 1
Volts / Hertz / Phase 115/60/1
AMPS 7.0
H. P. 1/4
NEMA PLUG 5-15P
Ship Weight 180/82
BTU Requirements for
Remote Unit Only:		 292
MODEL 8118EF
Short Form Specifications:

General Definition: LiquiTec″ Cold Pans with Eutectic Fluid technology allows food in food pans to be flush with top of counter. Cold pan meets NSF standard 7; and can be dropped into Delfield Mark 7, Shelleyglas″ or Shelleysteel″ counters or existing counters. Bottom mounted units feature:

Top: is one-piece 18-gauge stainless steel, with .62″ (1.57cm) overhang around perimeter and die stamped 19.87″ x 11.87″ (50.5cm x 30.2cm) openings with depressed edges. Formed well below each opening is 6.25″ (15.9cm) deep with .5″drain manifold to gate valve. Each well, flush with the top, for flush mount pans to accommodate 12″ x 20″ (30.5cm x 50.8cm) pans 4″ (7.6cm) or 6″ (15.2cm) deep supplied by others. Product temperatures of 33°F (1°C) to 41°F (5°C) are maintained at 86°F (30°C) ambient room temperature, meeting NSF 7 requirements.

Sides and bottom: are insulated with high-density closed-cell polyurethane. Exterior housing is 22-gauge galvanized steel.

Refrigeration: system uses HFC-404A refrigerant. Eutectic fluid is used as the heat transfer medium. Condensing unit is suspended below the cold pan on a 16- gauge steel frame. Temperature control has an OFF position to shut down the cold pan. Unit is supplied with expansion valve. A stainless steel louver is provided for  field installation; cutout dimension is 11″ x 22″ (27.94cm x 55.88cm). A second opening 11″ x 22″ (27.94cm x 55.88cm) at the rear of the cabinet should be provided at installation to allow for proper air circulation.

Electrical system is 115/60c/1ph with NEMA 5-15P plug.

Features, Options & Specifications Subject to Change Without Notice.
OPTIONAL ACCESSORIES:
Up-charge and lead times may apply.
  • Single or double service flip-up sneeze guards
  • Relocate compressor.
  • Remote refrigeration (specify refrigerant).

CLICK IMAGE FOR LARGER VIEW






This item is manufactured by a company that is part of the Enodis Group.  Enodis offers financing for all brands and preferred rates for orders that contain any Enodis Group products.  There is a $5,000 minimum total order to finance through Enodis.  Learn more about Enodis Financing.



State and local sales tax will be collected on the sale of Delfield products in all 50 states per the requirements from the Delfield Corporation. The sales tax will show on the automated invoice only for sales within the state of Tennessee. Read more about sales tax collection by KaTom.

Product Specifications

  • Product Spec Sheet
  • Crated Weight: 180.00 lbs.
  • Category: Drop In Refrigeration
  • Type: Cooled w/ Eutectic Fluid
  • 12x20 Pans Held: 1
  • Manufacturer: Delfield

Customer Reviews

Average Customer Review: Not yet rated

Write an online review and share your thoughts with others.

There are no reviews

Product Categories: Cooled w/ Eutectic Fluid Drop In  Delfield Liquitec Drop In Units
