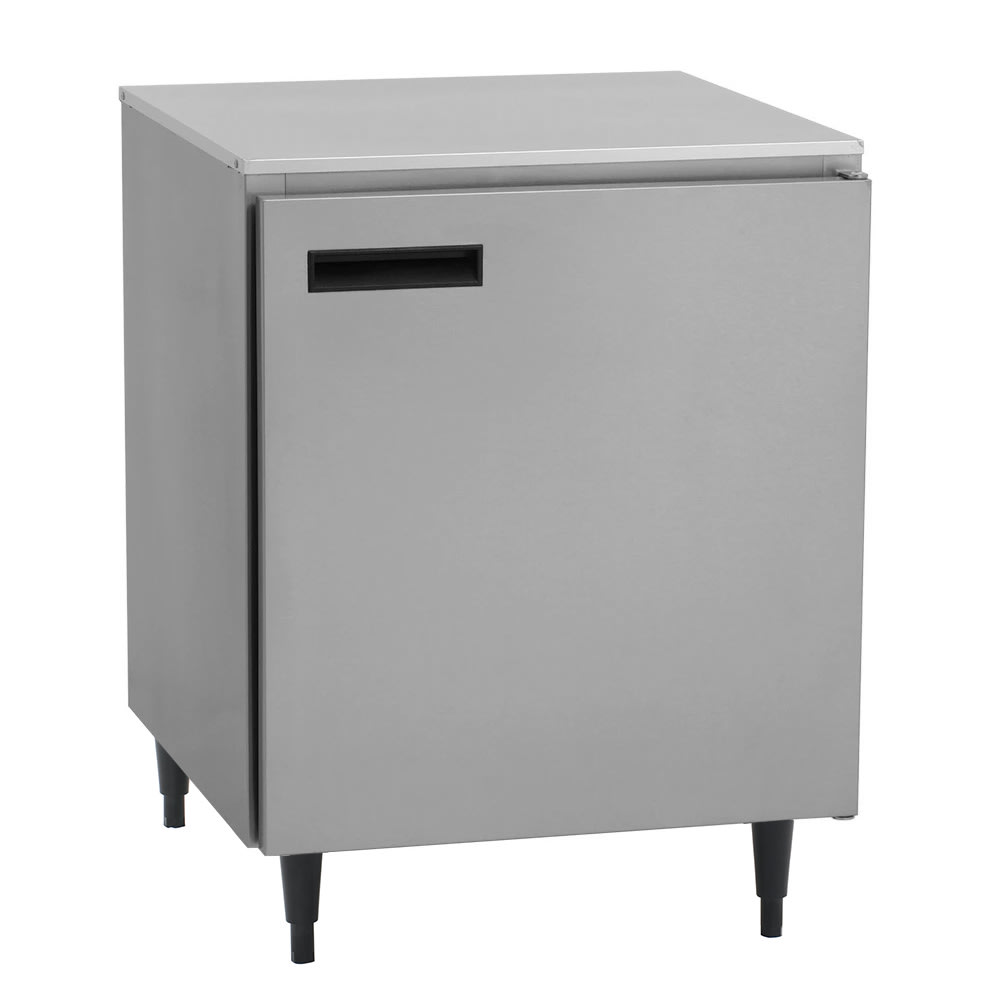

27" Undercounter Refrigerator,
S/S Top

Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS SAME OR NEXT DAY
| OPTIONAL ACCESSORIES: |
- Stainless steel back
- Plastic laminate on front
- Additional shelf
- Stainless steel single-tier overshelf
- 3.5″ (8.9cm) diameter casters
- 5″ (12.7cm) diameter casters
- Model 409 stacking collar (adds 4″ to overall combined height for use with models 406/406
- Door lock
- 220 volt, 50 Hertz electrical system
|
|
Up-charge and lead times may apply. |
|
Short Form Specifications: Exterior Top:shall be one-piece, 22-gauge stainless steel with front edge turned down to form nosing and rear edge turned down.
Exterior Bottom: shall be one piece 14-gauge galvanized metal. Exterior ends shall be 22-gauge stainless steel.
Base Interior: shall be one-piece thermoformed ABS plastic material, with integral shelf supports. ABS interior is backed by a limited lifetime warranty. Base shall be fully insulated with high-density foamed-in-place polyurethane.
Doors: shall have a 22-gauge stainless steel exterior, with a thermoformed ABS plastic interior liner, and shall be fully insulated with foamed-in-place polyurethane. Door handle shall be black, recessed ABS. Cabinet shall have (2) adjustable epoxy-coated wire shelves installed.
Refrigeration: Refrigeration system shall use HFC-404A refrigerant. Compressor shall be 1/5 h.p., with condenser coil and hot gas condensate evaporator mounted on rear of cabinet. Evaporator coil and temperature control shall be mounted on the interior rear wall of the cabinet. Refrigerant flow shall be controlled by a capillary tube. Cabinet shall maintain 36°F to 40°F (2°C to 4°C) interior cabinet temperature.
Electrical Connection: shall be 115 volt, 60 Hertz, single phase. Unit shall have a 7″ (2.1m) long electrical cord and NEMA 5-15P plug. Cord and plug shall be located on rear of cabinet, 16″ (40.6cm) above floor, 5″ from the left side.
NOTE: Equipment is shipped with loose 6″ (15.2cm) high metal legs with black enamel finish unless mounting is specified on original sales order.
|
