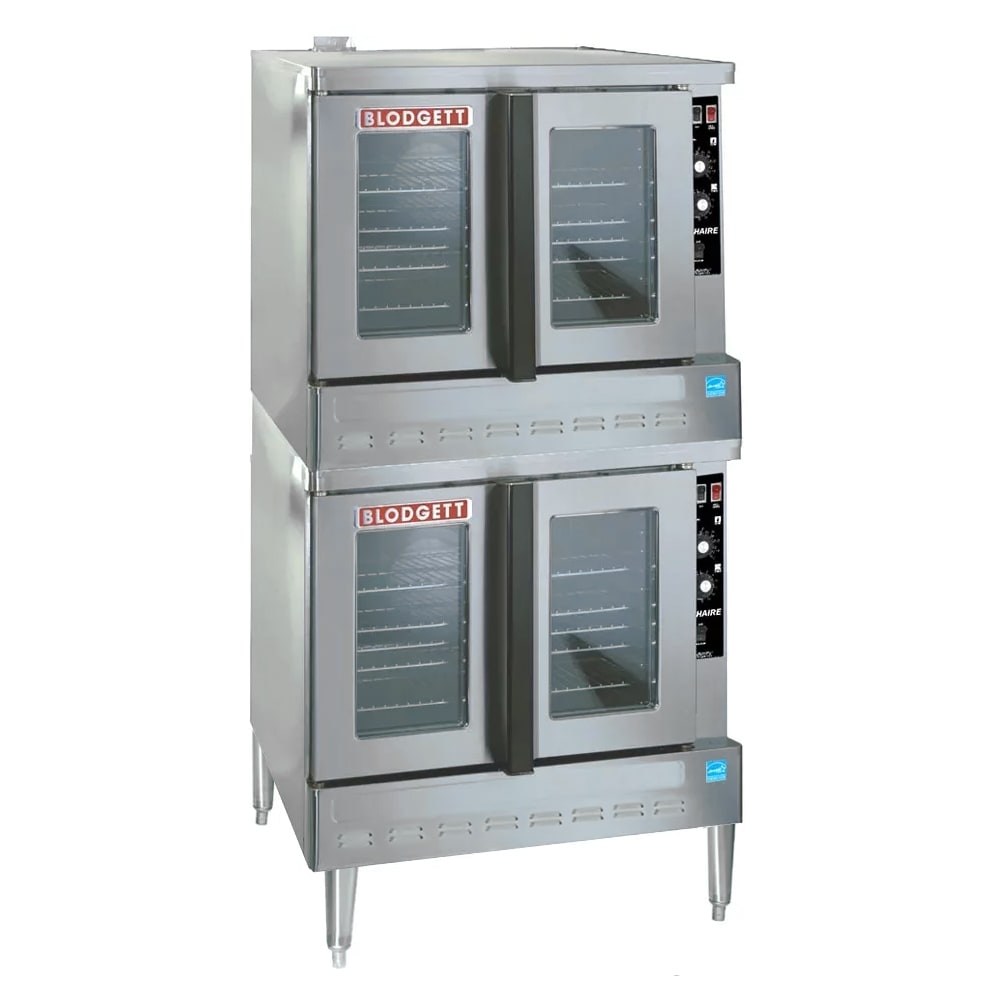

Blodgett ZEPH-100-G DBL Zephaire Double Full Size Natural Gas Convection Oven - 100,000 BTU
For low-volume baking, roasting, or rethermalizing done in small nursing homes or schools, the Blodgett ZEPH-100-G DBL Zephaire convection oven's double-deck configuration accommodates five 18-inch by...
Blodgett ZEPH-100-G Zephaire Double Full Size Natural Gas Convection Oven - 100,000 BTU
Blodgett ZEPH-100-G Description
The Blodgett ZEPH-100-GDBL double convection oven is heated by natural gas. Each oven cavity can accommodate five 18-inch-by-26-inch pans on 1 5⁄8-inch spacings. The wire racks can be adjusted to 11 different positions. Product is visible through the thermal glass windows in the doors via interior lights. Both interiors are made of quick-cleaning porcelain and insulated with mineral fiber, while the stainless steel exterior and iron frame can support heavy use.
A dual-flow gas system uses direct and indirect heat to ensure product is cooked properly, and its aluminized steel combustion chamber strengthens the unit. The oven features dual tube burners and control panels as well as adjustable air shutters. If the unit reaches unsafe temperatures, an automatic thermal overload protection feature turns the Blodgett ZEPH-100-GDBL full-size convection oven off.
Product Details
- (5) 18-in. x 16-in. pan capacity per oven
- 11 rack positions with minimum 1 5⁄8-in. spacing
- Heavy-duty iron frame and stainless steel exterior
- Dual pane thermal glass windows retain heat
- Door handle opens both doors
- Front control panel can be removed for maintenance
- Mineral fiber insulation keeps heat inside
- Porcelain compartment liner cleans quickly
- Aluminized steel combustion chamber
- Dual inlet blower wheel
- Dual flow gas system combines direct and indirect heat
- Heated by natural gas
- Electronic spark ignition system
- Removable dual tube burners
- Manual gas cut-off valve and pressure regulator in the front control area
- Adjustable air shutters on the air mixers
- Automatic thermal overload protection shuts the unit off if it reaches unsafe temperatures
- Interior oven lights
- Digital timer
- Adjustable 6-in. stainless steel legs
- Temperature range: 200-500 degrees F
- 1120 and 1710 RPM
- Requires 2-in. clearance on all sides
- 100,000 BTU
Dimensions & Utilities
- Interiors: 29 in. W x 20 in. D x 24 1⁄4 in. H
- Overall: 38 1⁄4 in. W x 42 7⁄8 in. D x 83 3⁄8 in. H
- 6 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 6-ft. cord

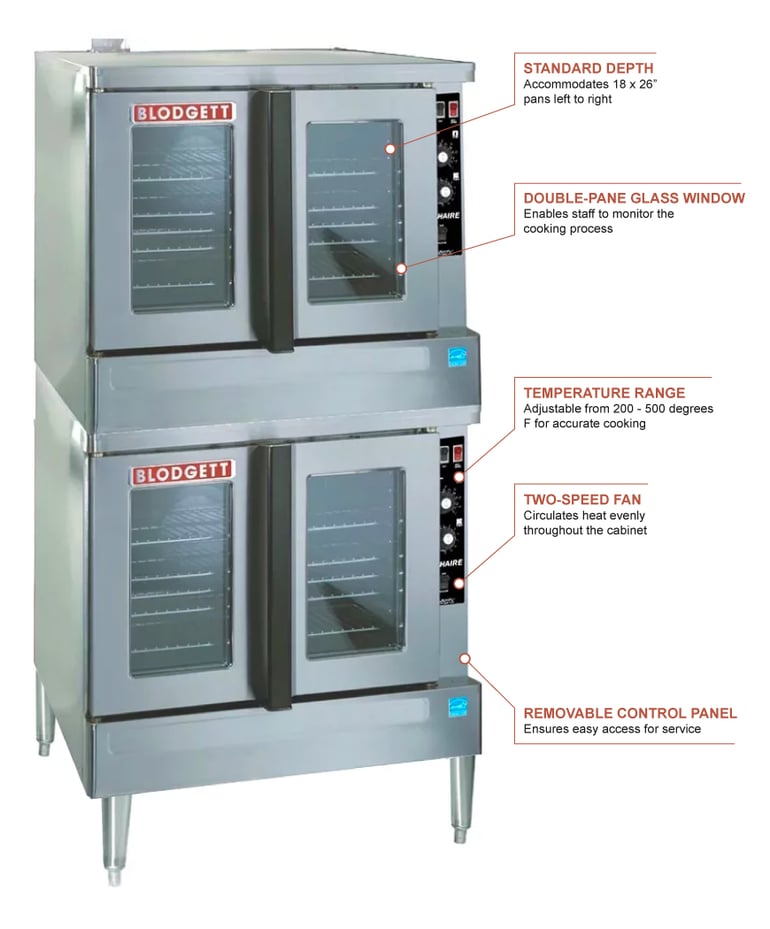

Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Blodgett ZEPH-100-G within the 48 contiguous states.
From The Manufacturer
Zephaire Convection Oven, natural gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-D) solid state infinite controls with digital timer, two speed fan, flue connector, dependent glass doors, interior light, stainless steel front, sides & top, 6" stainless steel legs, 100,000 BTU, ETL, NSF
Blodgett ZEPH-100-G Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Controls | Manual |
| Door Construction | Glass Only |
| Door Type | Dependent |
| Gas Type | NG |
| Heat | Gas |
| Interior Construction | Stainless Steel |
| Number of Ovens | Double |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Series | Zephaire |
| Size | Full Size |
| Total BTU | 50000 |
| Type | Floor Model |
| Warranty | 2-year Parts; 1-year Labor; 3-year Door Parts |
| Weight | 1070.00 |
