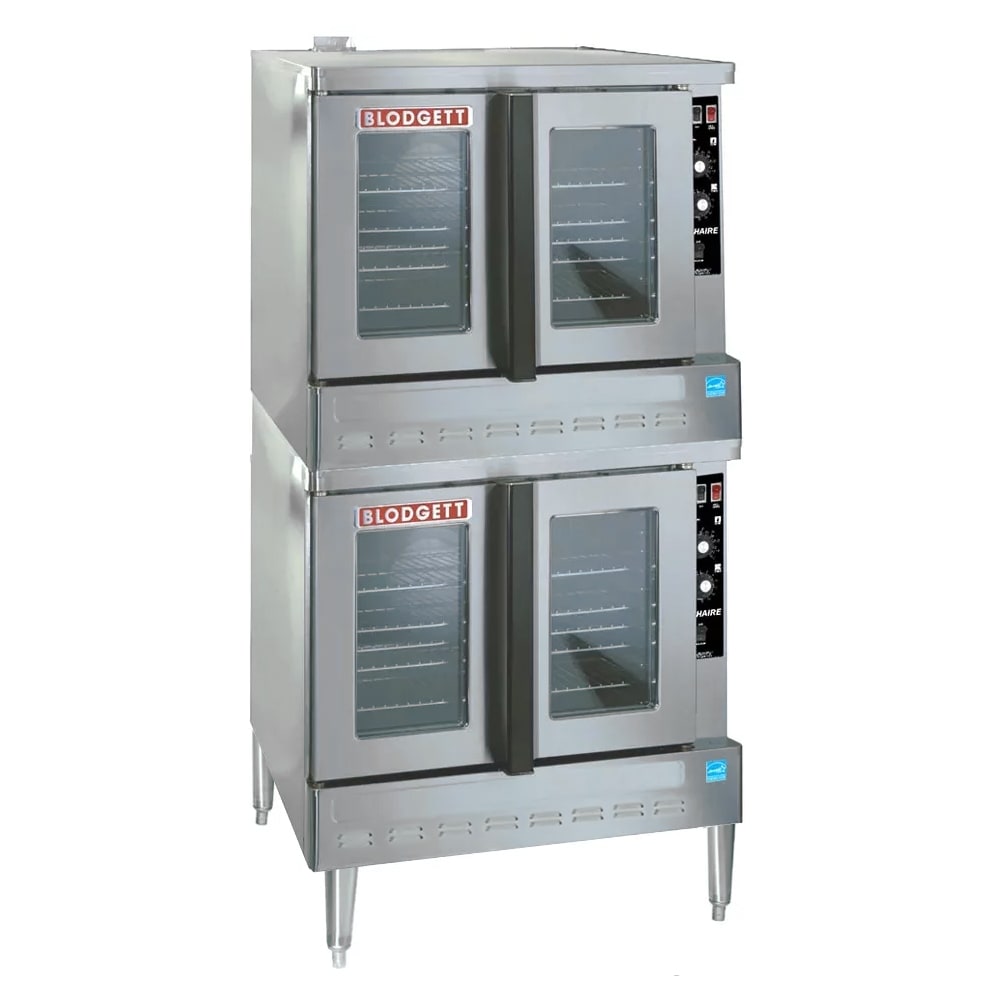

Blodgett ZEPH-100-G DBL Zephaire Double Full Size Liquid Propane Gas Convection Oven - 100,000 BTU
This Blodgett ZEPH-100-G DBL Zephaire double-deck convection oven is powered by LP gas and features an electronic spark ignition control system to simplify startup. Removable, dual-tube burners genera...
Blodgett ZEPH-100-G Zephaire Double Full Size Liquid Propane Gas Convection Oven - 100,000 BTU
Blodgett ZEPH-100-G Description
The Blodgett ZEPH-100-G full-size gas convection oven has a single door handle per deck that operates both doors simultaneously. It has a stainless steel front, top, sides, and legs with a full angle iron frame for support, while the stainless steel doors have double-paned, thermal glass windows. A removable front-control panel has a pressure regulator and manual gas service cut-off valve, while the Blodgett ZEPH-100-G double convection oven has six-inch, adjustable stainless steel legs and five chrome-plated racks. The oven is insulated with solid mineral fiber and has a dual flow gas system that mixes direct and indirect heat. To keep air inside the oven, the doors have a triple-mounted pressure lock.
Product Details
- Stainless steel front, top, sides, and legs with full angle iron frame for support
- Single handle operates both doors simultaneously
- Stainless steel door frames have double-paned thermal glass windows
- Triple-mounted pressure lock has turnbuckle assembly
- Removable front control panel
- Dual flow gas system mixes direct and indirect heat
- Electronic spark ignition control system
- Removable dual tube burners
- Front control area has pressure regulator and manual gas service cut-off valve
- Air mixers have adjustable air shutters
- Two speed fan motor and control area cooling fan
- Solid mineral fiber insulation
- Blower motor has automatic thermal overload protection
- Interior oven lights
- 6-in. adjustable stainless steel legs
- Solid state infinite control with a digital timer
- Baking compartment is lined with double-sided porcelain
- Dual inlet blower wheel
- Includes 5 chrome-plated racks
- Eleven rack positions with minimum 1 5⁄8-in. spacing
- Temperature range: 200-500 degrees F
- Required manifold pressure: 10 in. W.C.
- Required inlet pressure: 10 1⁄2-13 in. W.C.
- Required gas supply: 1⁄2-in. IPS connection at rear of oven
- 100,000 BTU
- 6 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 6-ft. cord
- Interior dimensions: 29 in. W x 24 1⁄4 in. D x 20 in. H
- Overall dimensions: 38 1⁄4 in. W x 42 7⁄8 in. D x 70 5⁄8 in. H

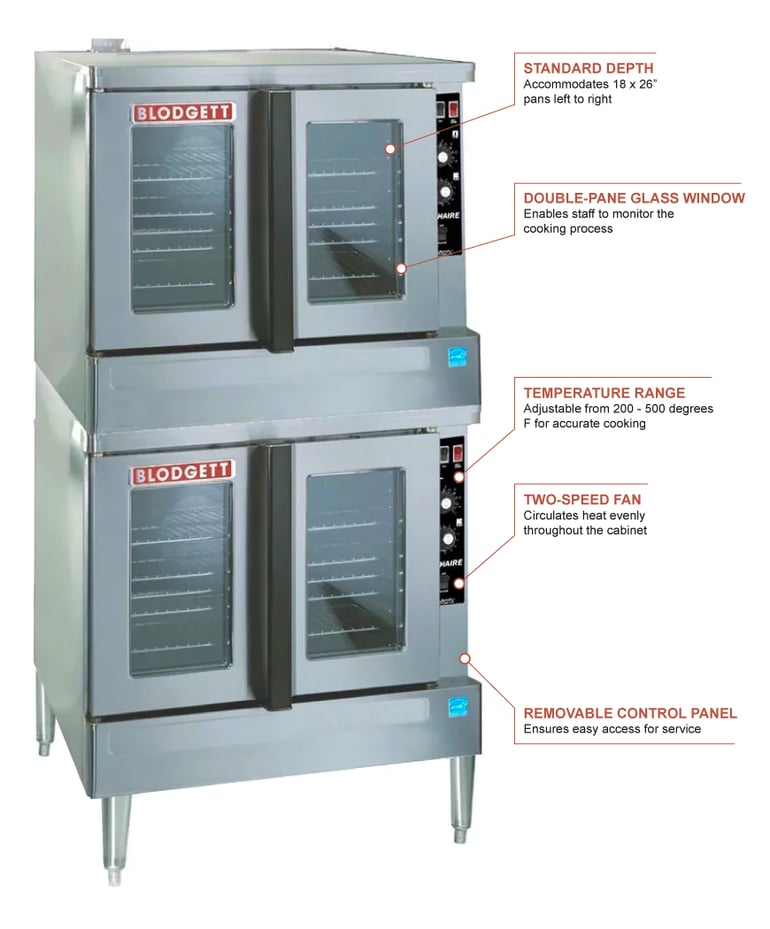

Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Blodgett ZEPH-100-G within the 48 contiguous states.
From The Manufacturer
Zephaire Convection Oven, gas, double-deck, standard depth, capacity (5) 18" x 26" pans per compartment, (SSI-D) solid state infinite controls with digital timer, two speed fan, flue connector, dependent glass doors, interior light, stainless steel front, sides & top, 6" stainless steel legs, 100,000 BTU, ETL, NSF
Blodgett ZEPH-100-G Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Blodgett |
| Base | Legs |
| Controls | Manual |
| Door Construction | Glass Only |
| Door Type | Dependent |
| Gas Type | LP |
| Heat | Gas |
| Interior Construction | Stainless Steel |
| Number of Ovens | Double |
| Pans Per Deck | 5 |
| Product | Convection Ovens |
| Product Type | Cooking Equipment |
| Series | Zephaire |
| Size | Full Size |
| Total BTU | 50000 |
| Type | Floor Model |
| Warranty | 2-year Parts; 1-year Labor; 3-year Door Parts |
| Weight | 1070.00 |
