Metro C569-SFC-UPFS Description

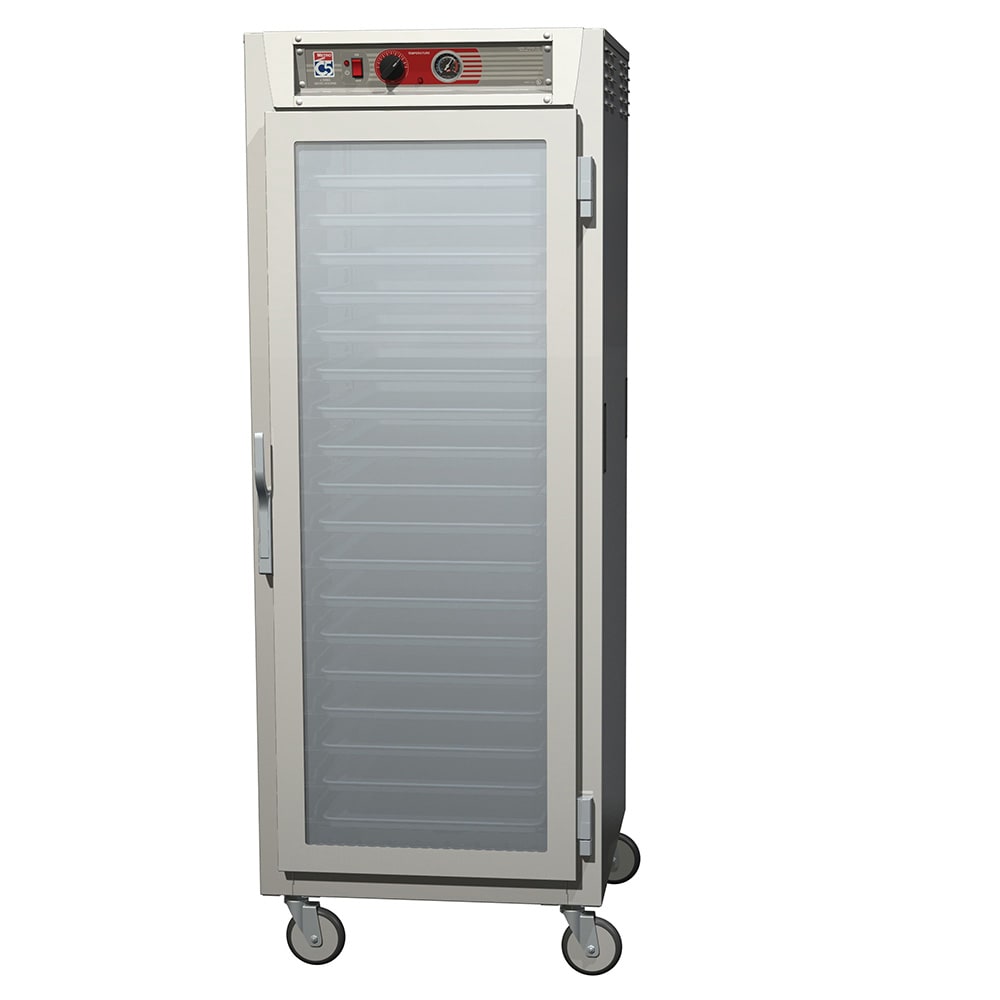

To streamline pan loading and retrieval, this Metro C569-SFC-UPFS C5™ 6 series heated holding cabinet features a pass-thru design that enables operators to access pans from the front or back. The full-length, clear tempered glass front door provides a direct view of product, while the solid stainless steel back door is insulated to help minimize temperature fluctuations. Inside the cabinet, universal wire slides accommodate 34 steam pans or 18 sheet pans, and the slides can be adjusted in 1 1⁄2-inch increments. Engineered to withstand long-term, high-volume use, the interior is made of 22-gauge stainless steel, while the exterior has a polished, 20-gauge stainless steel construction. This full-height cabinet measures 29 1⁄8 inches wide by 34 5⁄8 inches deep by 74 3⁄4 inches high.

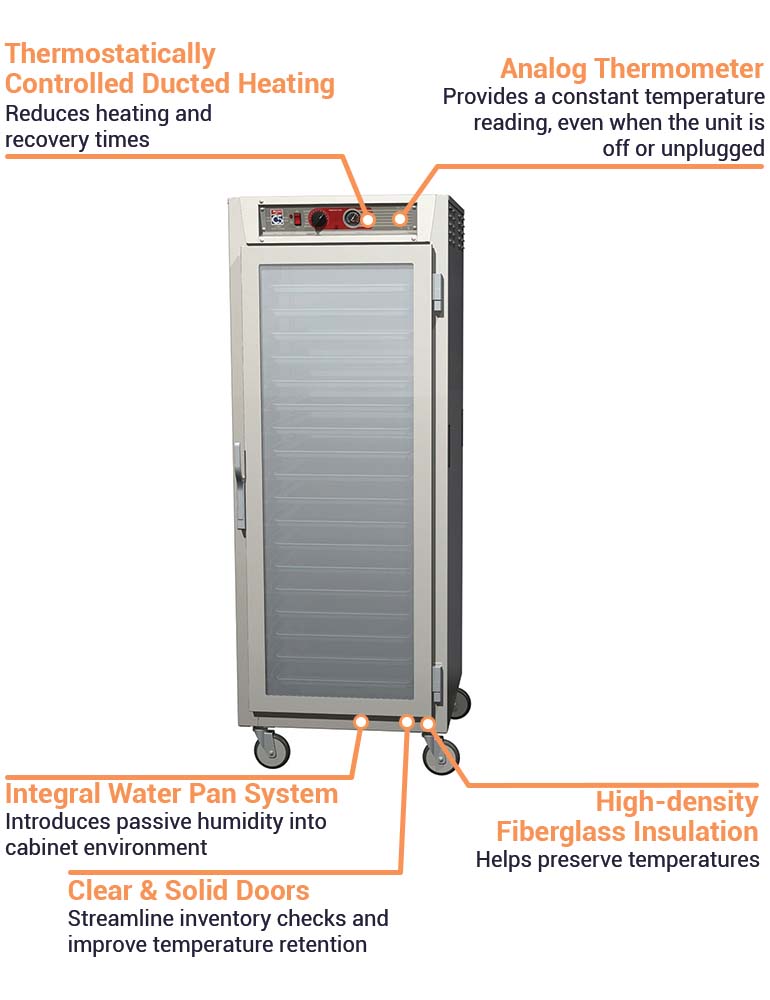

The Metro C569-SFC-UPFS holding cabinet's ducted heating system maintains temperatures between 70 and 200 degrees Fahrenheit and recovers lost temperatures quickly. Because the cabinet's interior is insulated with 2 1⁄2-inch-thick, high-density fiberglass, food can be held at consistent temperatures, even when the doors are opened for short periods of time. To ensure foods don't become dry during holding, an integral water pan system adds passive humidity into the cabinet. Top-mounted temperature controls are user friendly, and the analog thermometer displays temperatures constantly, even when the unit is unplugged.

  • Pass-thru layout
  • Accommodates (34) 12-in. x 20-in. x 2 1⁄2-in. steam pans or (18) 18-in. x 26-in. sheet pans
  • Cabinet holding temperature range: 70-200 degrees F
  • Thermostatically controlled, ducted heating system
  • Integral pan system generates passive humidity
  • Top-mounted, user-friendly temperature controls and analog thermometer
  • Insulated with high-density fiberglass
  • Exterior and interior made of durable stainless steel
  • Tempered glass front door and solid stainless steel back door
  • Universal wire slides adjustable in 1 1⁄2-in. increments
  • 5-in. neoprene casters (2 braking)

  • 29 1⁄8 in. W x 34 5⁄8 in. D x 74 3⁄4 in. H
  • 16 A, 2 kW
  • 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Metro C569-SFC-UPFS within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

C5™ 6 Series Heated Holding Cabinet, mobile, full height, pass thru, insulated (1) tempered double pane glass & (1) solid doors, top mount controls & analog thermometer, ducted heating system, thermostat 70° to 200°F temp, universal wire (18) 18" x 26" or (34) 12" x 20" x 2-1/2" pan capacity, 1-1/2" adjustable wire slides, 5" casters (2 with brakes), 304 stainless steel, 120v/60/1-ph, 2000 watts, 16 amps, NEMA 5-20P, cULus, NSF

Warranty Icon
1-year Against Manufacturing Defects
