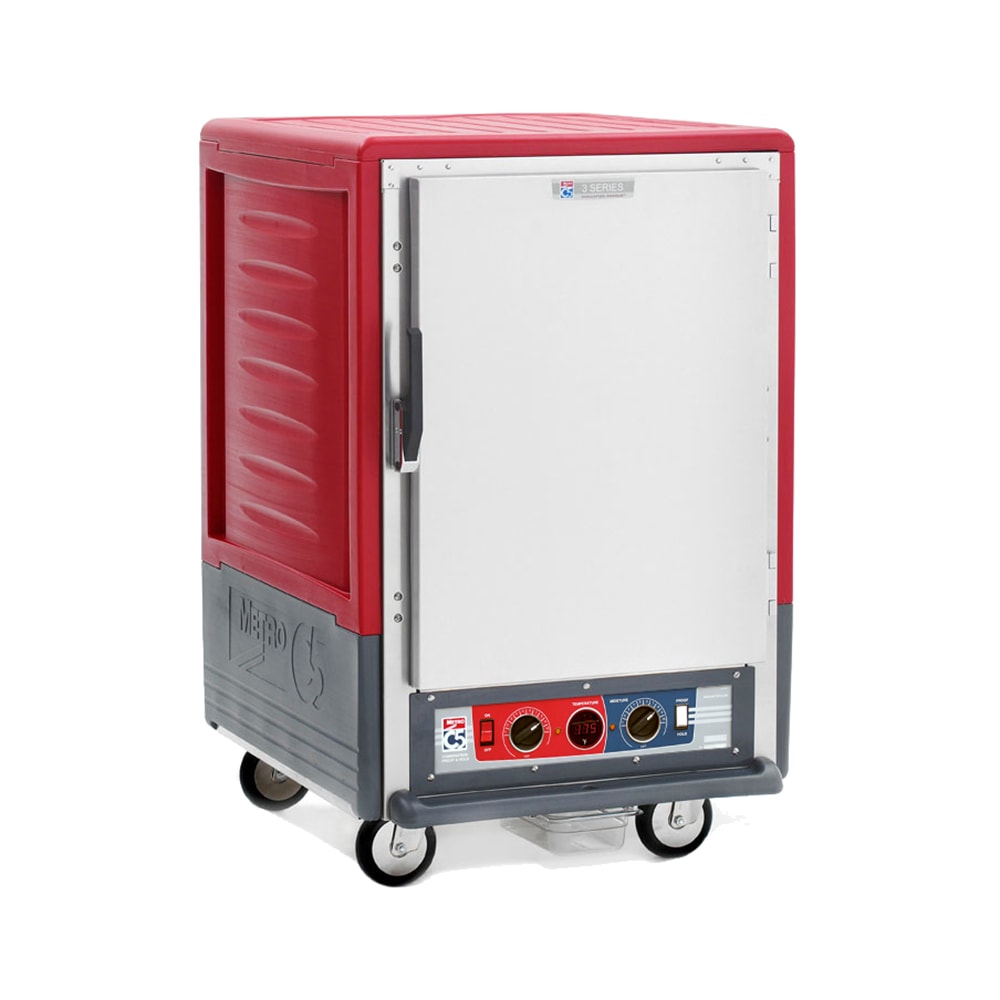

Metro C535-CFS-U 1/2 Height Insulated Mobile Heated Cabinet w/ (8) Pan Capacity, 120v
$3,169.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C535-CFS-U Description
The Metro C535-CFS-U C5™ 3 Series half-height heated cabinet comes with red Insulation Armour™ to protect the cabinet from damage. This protection also keeps heat inside the cabinet while the door gaskets prevent heat leaks. Its solid door is insulated with fiberglass to retain heat. Since this unit is a combination model, a forced-air heating system evenly distributes heat and moisture, and it can heat and hold product at serving temperatures, proof dough, or a combination of these actions.
Universal slides adjust in 1 1⁄2-inch increments and accept eight 18-inch-by-26-inch pans or (16) 12-inch-by-20-inch-by-2 1⁄2-inch pans. A pull latch with lever-action release prevents the door from opening while the cabinet is being transported. Donut neoprene wheels on the 5-inch casters withstand heavy, repeated use. The Metro C535-CFS-U heated cabinet has a removable control panel with analog knobs for controlling the temperature and humidity settings. They are shown through a digital display, along with a master switch and indicator lights.
- Forced-air heating system evenly distributes heat and moisture
- Solid door is insulated with 1-in.-thick fiberglass
- 180-degree-opening door for loading and unloading pans
- Universal slides are adjustable in 1 1⁄2-in. increments
- 1⁄2-in.-dia. nickel-plated electroplated wire slides
- (8) 18-in. x 26-in. pan capacity
- (16) 12-in. x 20-in. x 2 1⁄2-in. pan capacity
- Cabinet is constructed of aluminum for strength
- Red Insulation Armour is constructed of high-density polyethylene to protect the unit from damage and retain heat
- 5-in. nickel-plated swivel casters
- Donut neoprene wheels are durable
- Door-mounted gaskets prevent air leaks
- Magnetic pull latch with lever action keeps the door closed
- Drip trough with a catch pan
- Part of the C5 3 series
- Recessed control dials resist damage
- Master on/off switch
- Power indicator lights
- Proofs dough before it is baked and keeps product moist
- Holds temperatures to keep product ready to serve
- Combo mode uses humidity and heat at the same time
- Analog knobs for temperature and humidity
- Digital display for temperature and humidity settings
- 95 percent relative humidity at 95 degrees F
- Temperature range: 80-200 degrees F
- Removable panel
- 27 5⁄8 in. W x 31 1⁄2 in. D x 44 in. H
- 16.7 A, 2000 W
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-20P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C535-CFS-U within the 48 contiguous states.
From The Manufacturer
C5™ 3 Series Heated Holding & Proofing Cabinet, with Red Insulation Armour™, mobile, half height, insulated cabinet & door, removable bottom mount control module, thermostat to 200°F, universal wire slides on 3" centers, adjustable on 1-1/2" increments (8) 18" x 26" or (16) 12" x 20" x 2-1/2" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 2000 watts, 16.7 amps, NEMA 5-20P, cULus, NSF
Metro C535-CFS-U Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Color | Red |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 31.5 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 44 |
| Hertz | 60 |
| Hinge Configuration | Right |
| kW | 2 |
| Load Type | Reach In |
| NEMA | 5-20P |
| No. of Doors | 1 |
| Pan Capacity | 8 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 3 Series |
| Size | 1/2 Height |
| Slide Spacing (in) | 3 |
| Slide Type | Universal |
| Special Features | Field Reversible Door |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 27.63 |
| Weight | 150.00 |
