Metro C517-PFC-L 3/4 Height Non-Insulated Mobile Proofing Cabinet w/ (27) Pan Capacity, 120v
$2,720.00 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Non Returnable Item
Metro C517-PFC-L Description

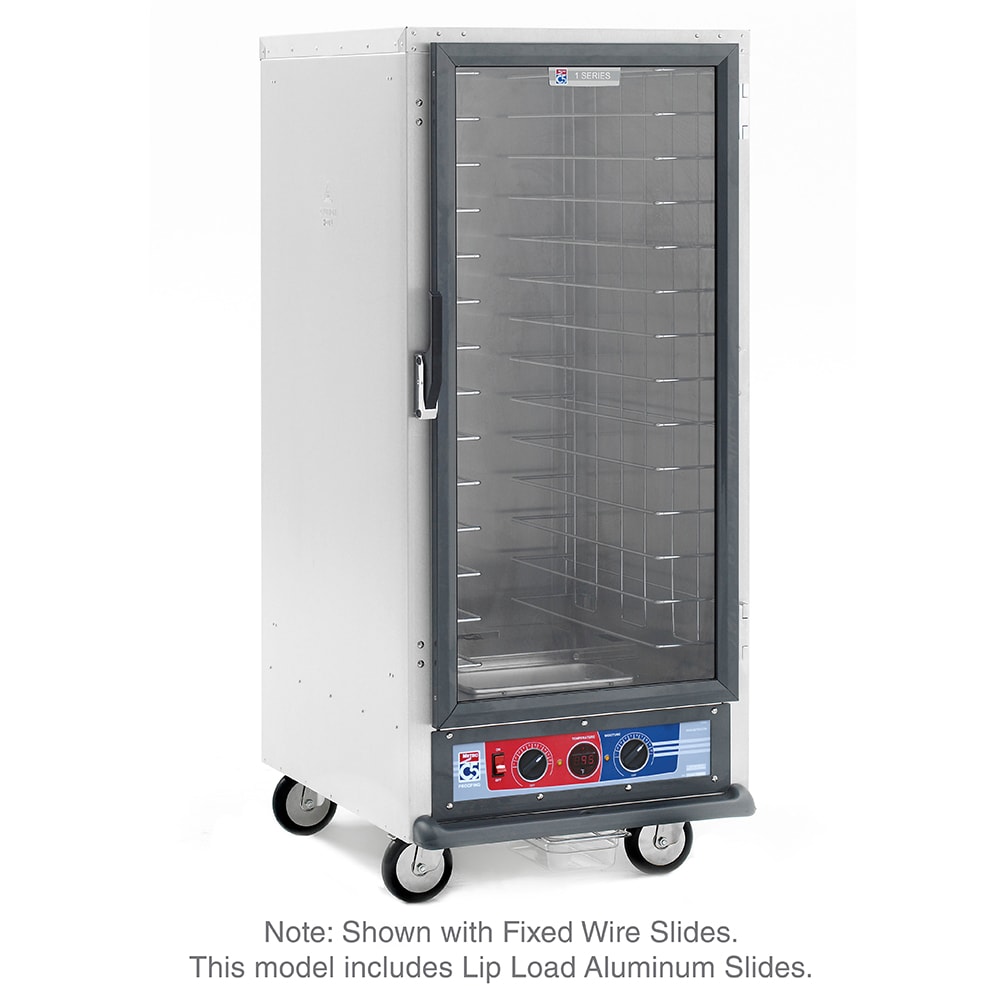

The Metro C517-PFC-L 3⁄4-height non-insulated mobile proofing cabinet can hold 27 full-size sheet pans inside its cavity, supported on extruded aluminum lip-load slides. Its polycarbonate door is clear, enabling operators to check the status of food inside the cabinet without opening the door to release heat and moisture. Individual analog controls give users the ability to adjust temperature and humidity settings independently and precisely, while a digital display makes it straightforward to monitor the settings.
Because the Metro C517-PFC-L 3⁄4-height proofing cabinet isn't insulated, it's ideal for short-term mobile applications. It's mounted on 5-inch casters to provide smooth movement; two casters can brake. The reversible polycarbonate door is clear and opens as far as 180 degrees for unobstructed access to the cabinet's interior. To conserve energy and prevent moisture from leaking, the unit is designed with magnetic latches and a Santoprene door gasket.
- Part of the C5™ 1 series
- Thermostat settings from 80-120 degrees F
- Non-insulated
- Proofing function
- 3⁄4-height, mobile design
- Aluminum lip-load slides on 1 1⁄2-in. centers
- (27) 18-in. x 26-in. pan capacity
- Bottom-mounted proofing control module is removable

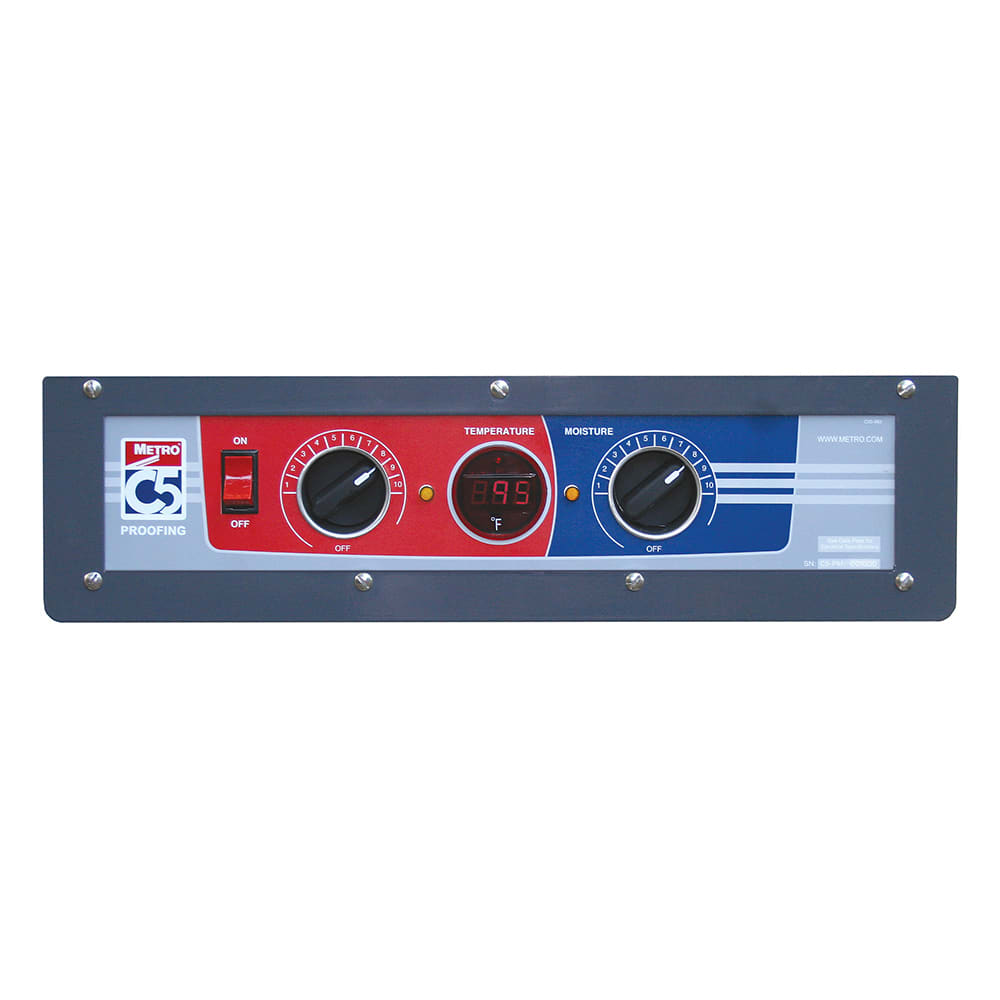

- Analog controls are recessed to prevent unintended temperature changes
- Digital temperature display can be read at a glance
- Forced-air system is controlled thermostatically for quick recovery
- Lights indicate status of master power control switch
- Polycarbonate door is clear for improved visibility
- Durable, high-strength latches with magnetic function
- Aluminum construction for lightweight mobility
- Door gaskets made of Santoprene
- Reversible, 180-degree door hinges are heavy duty
- Polymer drip trough is smooth to streamline cleaning
- Moves on (4) 5-in. neoprene casters, 2 with brakes
- 25 1⁄8 in. W x 30 1⁄4 in. D x 57 3⁄4 in. H
- 12 A, 1.44 kW
- 120 V/60 Hz/1 ph, 7 1⁄2-ft. cord with a NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Metro C517-PFC-L within the 48 contiguous states.
From The Manufacturer
C5™ 1 Series Proofing Cabinet, mobile, 3/4 height, non-insulated, clear polycarbonate door, removable bottom mount control module, thermostat to 120°F, lip load slides on 1-1/2" centers (27) 18" x 26" pan capacity, 5" casters (2 with brakes), aluminum, 120v/60/1-ph, 1440 watts, 12 amps, NEMA 5-15P, cULus, NSF
Metro C517-PFC-L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Metro |
| Application | Heat & Humidity |
| Construction | Aluminum |
| Control Location | Bottom |
| Controls | Dial |
| Depth (in) | 30.25 |
| Door Design | Full |
| Door Type | Lexan |
| Heat | Electric |
| Height (in) | 57.75 |
| Hertz | 60 |
| kW | 1.4 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 27 |
| Phase | 1 |
| Product | Proofing Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Series | C5™ 1 Series |
| Size | 3/4 Height |
| Slide Spacing (in) | 1.5 |
| Slide Type | Lip Load |
| Special Features | Field Reversible Door |
| Type | Non-Insulated |
| Voltage | 120 |
| Warranty | 1-year Against Manufacturing Defects |
| Width (in) | 25.13 |
| Weight | 135.00 |
Compare to Similar Items
| Attributes |
Metro C517-PFC-L Metro C517-PFC-L 3/4 Height Non-Insulated Mobile Proofing Cabinet w/ (27) Pan Capacity, 120v Current Item |
|
|---|---|---|
| Customer Rating |
|
|
| Price | $2,720.00 / Each | $2,862.00 / Each |
| Shipping | Free Shipping | Free Shipping |
| Application | Heat & Humidity | Heat & Humidity |
| Type | Non-Insulated | Non-Insulated |
| Size | 3/4 Height | 3/4 Height |
| Pan Capacity | 27 | 27 |
| No. of Doors | 1 | 1 |
| Door Design | Full | Full |
| Door Type | Lexan | Lexan |
| Load Type | Reach In | Reach In |
| Slide Type | Lip Load | Lip Load |
| Slide Spacing (in) | 1.5 | 1.5 |
| Sections | 1 | 1 |
| Controls | Dial | Dial |
| Width (in) | 25.13 | 25.13 |
| Depth (in) | 30.25 | 30.25 |
| Height (in) | 57.75 | 57.75 |
| Voltage | 120 | 120 |
| Warranty | 1-year Against Manufacturing Defects | 1-year Against Manufacturing Defects |
