The True GDM-23F-HC~TSL01 one-section display freezer holds products at -10 degrees Fahrenheit, which is ideal for storing and displaying packaged ice cream and frozen foods. With the help of R290 hyd...

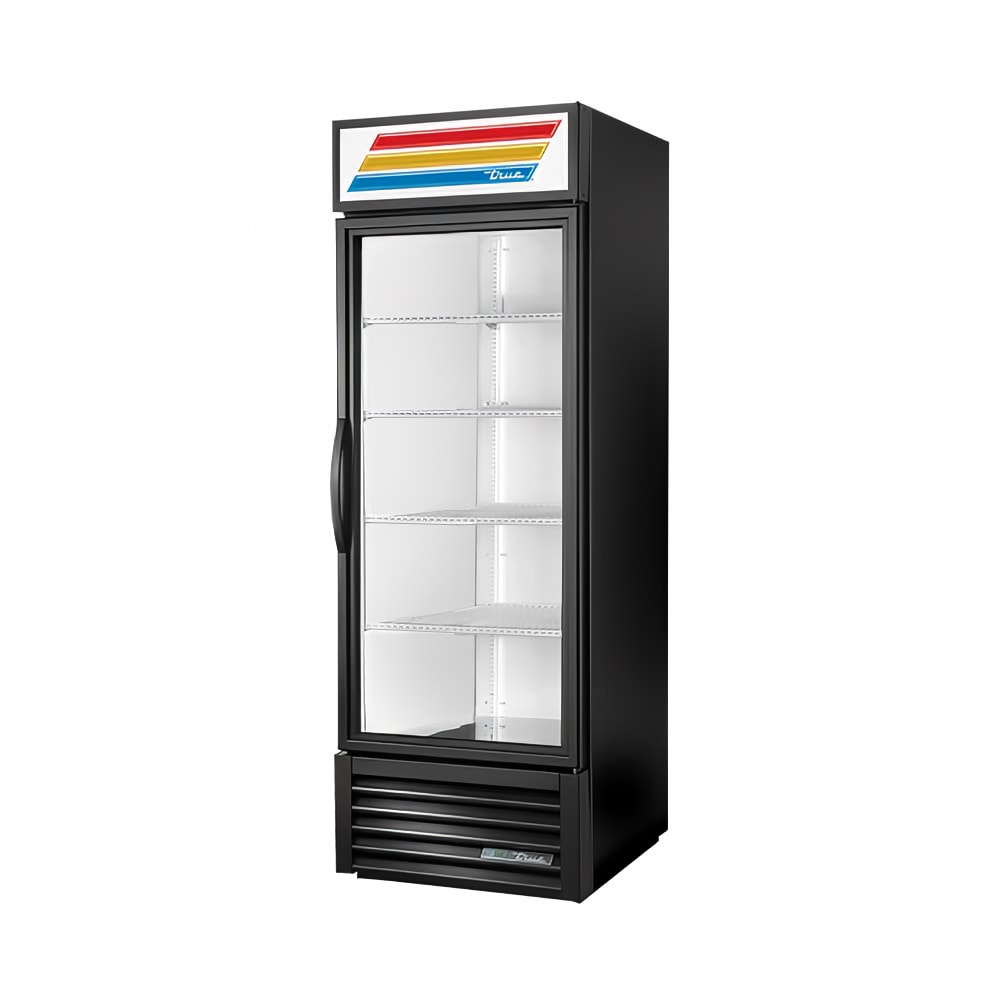

True GDM-19T-F-HC~TSL01 27" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 115v
True Refrigeration GDM-19T-F-HC~TSL01 Description
The True GDM-19T-F-HC~TSL01 one-section glass door merchandiser has an automatic defrost system that is time initiated and temperature terminated to keep ice buildup off the evaporator coil. The self-contained capillary tube system uses R404A refrigerant to keep the operating temperature at -10 degrees Fahrenheit, which is ideal for frozen pizzas and dinners. The evaporator fan motors and large fan blades have a low-velocity, high-volume airflow, which produces quick pull-down time, fast temperature recovery, and cold holding temperatures. Designed to blow excess dust, dirt, and debris off of the condensing coil, the fan motor reverses at start up for 20 seconds. With a clean coil, the refrigeration system maintains consistent product storage temperatures, operates efficiently, and minimizes energy consumption. Despite improving the system's overall operation, this cleaning feature doesn’t replace preventative maintenance recommendations.
Product is visible to customers since LED lights brighten the interior and the thermal-insulated door is made of triple-pane glass. Four heavy-duty, PVC-coated wire shelves hold products and are adjustable on 1⁄2-inch increments to accommodate the products’ varying heights. A no-stoop shelf is created by the condensing unit being mounted at the bottom of the cabinet and raises product so it is visible. The True GDM-19T-F-HC~TSL01 one-section glass door merchandiser has a backguard and floor rack that encourage ideal airflow, so all products stay cold.
- 4 heavy-duty, PVC-coated wire shelves are adjustable on 1⁄2-in. increments
- Each shelf comes with 4 chrome-plated shelf clips
- Backguard and floor rack ensure airflow is ideal to keep products cold
- LED interior lighting makes products more visible
- Illuminated exterior sign panel grabs customers’ attention
- Triple-pane, thermal-insulated glass door has an extruded aluminum frame for durability
- 12-in. extruded door handle
- Self-closing door design helps keep cold air in the cabinet
- Magnetic door gasket prevents cold air from escaping and removes for cleaning or replacing
- Foamed-in-place polyurethane insulation keeps cold air inside the cabinet and gives it structure
- Black powder-coated steel exterior will not peel or chip and is durable and permanent
- White aluminum interior liner brightens the cabinet
- Stainless steel floor is durable and easy to clean
- Black powder-coated steel frame rail resists corrosion
- Leg levelers on the steel frame keep the unit sturdy on uneven flooring
- Operating temperature: -10 degrees F
- Bottom-mounted condensing unit is within reach and creates a no-stoop shelf so products are raised and visible
- Large condenser, extra-large evaporator coil, and high-horsepower compressor help maintain a constant temperature
- Sealed, self-lubricating evaporator fan motor and large blades create a low-velocity, high-volume airflow, so pull-down time is quick, recovery time is fast, and holding temperatures are cold
- Fan motor has a reverse mode that blows excess dust off coil
- Evaporator resists corrosion since it is coated in epoxy
- Self-contained capillary tube system regulates R404A refrigerant
- Automatic defrost system is time initiated and temperature terminated to maintain proper working order
- Shelves: 22 9⁄16 in. W x 18 1⁄4 in. D

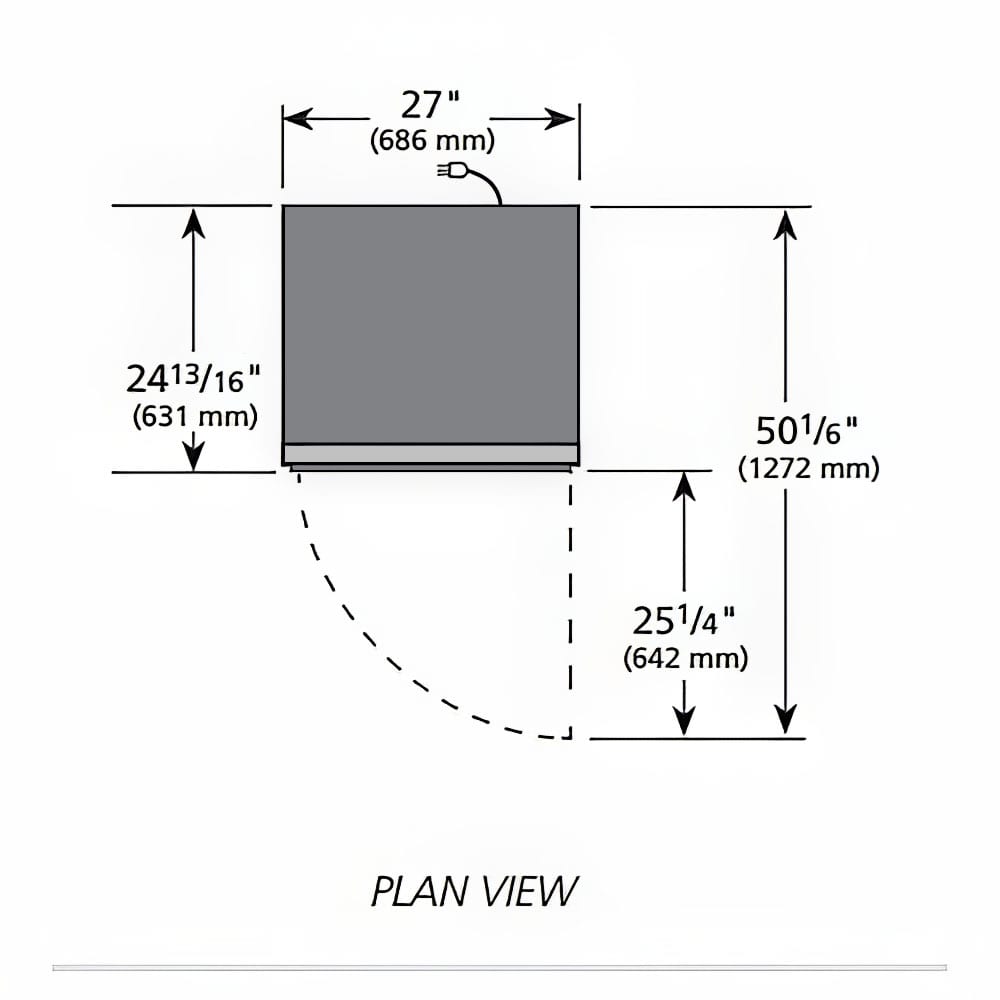

- Overall: 27 in. W x 26 1⁄2 in. D x 78 5⁄8 in. H
- 8.7 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15 plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on True Refrigeration GDM-19T-F-HC~TSL01 within the 48 contiguous states.
From The Manufacturer
Freezer Merchandiser, one-section, bottom mounted self-contained refrigeration, True standard look version 01, (4) shelves, (1) Low-E thermal glass hinged door, LED interior lights, powder coated exterior, white interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1 HP, 115v/60/1-ph, 8.7 amps, NEMA 5-15P, cULus, UL EPH Classified
True Refrigeration GDM-19T-F-HC~TSL01 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | True Refrigeration |
| Color | Black |
| Compressor Location | Bottom |
| Depth (in) | 26.5 |
| Height (in) | 78.63 |
| Hertz | 60 |
| Hinge Configuration | Right |
| NEMA | 5-15P |
| Phase | 1 |
| Product | Display Freezers |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Sections | 1 |
| Series | GDM Series |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor |
| Width (in) | 27 |
| Weight | 325.00 |
WARNING: Important Prop 65 information for California residents.
- True Refrigeration GDM-23F-HC~TSL01 (Replacement)
Compare to Similar Items
| Attributes |
True Refrigeration GDM-19T-F-HC~TSL01 True GDM-19T-F-HC~TSL01 27" One Section Display Freezer w/ Swing Door - Bottom Mount Compressor, Black, 115v Current Item |
True Refrigeration GDM-23F-HC~TSL01 |
|---|---|---|
| Customer Rating |
|
|
| Price | $5,552.02 / Each | |
| Shipping | Free Shipping | Free Shipping |
| Lead Time | IN STOCK: Ships in 1 Business Day | |
| Sections | 1 | 1 |
| Width (in) | 27 | 27 |
| Rating | Better | Better |
| Special Features | LED Lighting | LED Lighting |
| Depth (in) | 26.5 | 31.5 |
| Color | Black | Black |
| Height (in) | 78.63 | 78.63 |
| Hinge Configuration | Right | Right |
| Voltage | 115 | 115 |
| Warranty | 7-year Parts & Labor; 7-year Compressor | 7-year Parts & Labor; 7-year Compressor |
- 5
- 4
- 3
- 2
- 1
Review this product!
probably not
I was really excited to get this freezer, we have the temp set on 5 degrees instead of the factory set -10 F. The temp inside the cabin is 20 degrees F (even tho it's set at 5 degrees F) but it jumps to 40-50 degrees during the day by opening it a lot. We bought it to replace an older japanese freezer and I wish I hadn't bought it now because it does not serve our needs, so it just sits empty in my over crowded kitchen. Wish I could return it! Oh, and it did not come with casters!
