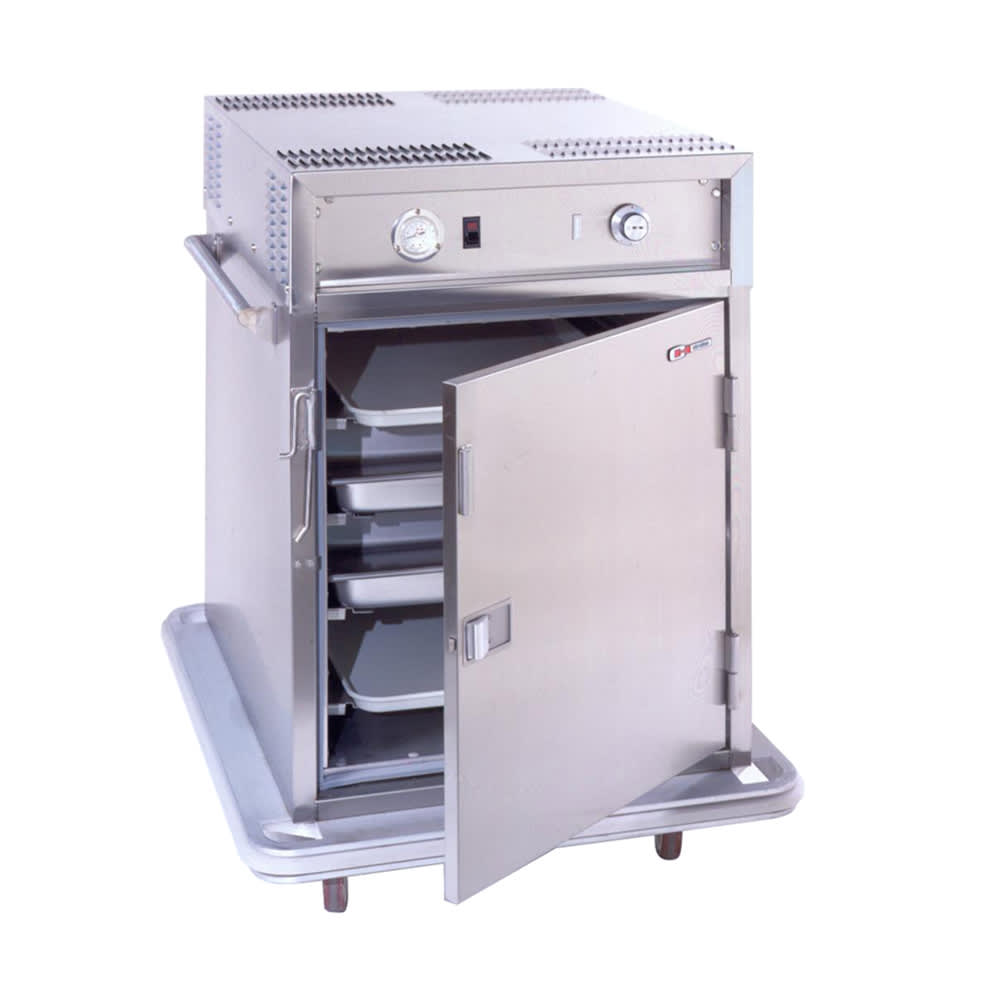

Carter-Hoffmann PH188 1/2 Height Insulated Mobile Heated Cabinet w/ (6) Pan Capacity, 120v
$8,350.00 /Each
Call for details!
Carter-Hoffmann PH188 Description
Built for correctional facilities, the Carter-Hoffmann PH188 heated cabinet features tamper-resistant fasteners, protective covers for heater controls, bolted-on casters, and a lockable transport latch to deter tampering. This half-height unit measures 31.50 inches wide 38 inches deep by 40.25 inches high and has a rigid, fully welded stainless steel construction that resists impacts, rust, and corrosion. Inside its 23.25-inch-high cabinet, universal slides can support (6) 18-inch by 26-inch sheet pans or (12) 12-inch by 20-inch steam table pans, suiting low-volume applications. To move bulk food at once, it's fitted with 5-inch swivel casters; two casters have brakes to secure the unit in place when pans are retrieved and loaded. The casters are mounted to the unit in a wheel-ahead, offset pattern to prevent the unit from overturning on irregular surfaces.
This Carter-Hoffmann PH188 heated correctional transport cart keeps prepared foods warm before they're served using a convection heating system. This mechanism circulates heat evenly throughout the cabinet for uniformity, preheats to 160 degrees Fahrenheit in 25 minutes, and recovers lost heat within minutes. The full-range thermostat control knob can be adjusted to temperatures as high as 200 degrees Fahrenheit, and a dial thermometer with a remote sensing bulb displays an accurate temperature readout. To maximize heat retention when the unit is stored in cool environments or when its door is open during use, the sides and door are filled with high-density, 1-inch-thick fiberglass insulation. Simple to access, the top-mounted heater can be removed in the field for maintenance and cleaning when necessary.
- Part of the PH series
- Correctional features included
- Reach-in, half-height unit
- 23.25-in. interior working height
- Removable tray racks with adjustable universal slides
- Capacity: (6) 18-in. x 26-in. sheet pans or (12) 12-in. x 20-in. steam table pans
- All-welded stainless steel construction
- Side-mounted stainless steel push handles
- 1 recessed, double-panel door
- 1-in.-thick, high-density fiberglass insulation built into door and sides
- Tamper-resistant fasteners
- Lockable transport latch
- Nonmarking, vinyl wraparound bumper
- Removable, top-mounted convection heater with hold-down device
- Full-range thermostat control knob with security guard
- On/off toggle switch with security guard
- Dial thermometer with remote sensing bulb and protective cover
- Heats to 200 degrees F
- Preheats to 160 degrees F in 25 minutes
- (4) 5-in. bolted-on swivel polyurethane casters (2 with brakes) with offset, wheel-ahead design
- Requires 2-in. clearance from wall and combustible materials
- 36-in. front clearance required
- 31.50 in. W x 38 in. D x 40.25 in. H
- 12.5 A, 1500 W
- 120 V/60 Hz/1 ph, includes 10-ft. 3-wire rubber cord with 3-prong grounding NEMA 5-15P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Carter-Hoffmann PH188 within the 48 contiguous states.
From The Manufacturer
Heated Cabinet, HD correctional features, mobile, insulated, top mounted forced air heat sys, universal slides hold (12) 12"x20" or (6) 18"x26" pans, 3-1/2" spacing, slides adjustable 1-3/4" increments, stainless steel construction, wrap-around bumper, flush door, 5" swivel casters, cUL, UL EPH
Carter-Hoffmann PH188 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Carter-Hoffmann |
| Application | Heat & Humidity |
| Color | Silver |
| Construction | Stainless Steel |
| Control Location | Top |
| Controls | Dial |
| Depth (in) | 38 |
| Door Design | Full |
| Door Type | Solid |
| Heat | Electric |
| Height (in) | 40.25 |
| Hertz | 60 |
| Hinge Configuration | Right |
| Includes | Bumpers |
| kW | 1.5 |
| Load Type | Reach In |
| NEMA | 5-15P |
| No. of Doors | 1 |
| Pan Capacity | 6 |
| Phase | 1 |
| Product | Heated Cabinets |
| Product Type | Food Warming Equipment |
| Sections | 1 |
| Size | 1/2 Height |
| Slide Spacing (in) | 3.5 |
| Slide Type | Universal |
| Special Features | All Stainless Exterior |
| Type | Insulated |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor |
| Width (in) | 31.5 |
| Weight | 335.00 |
